XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 3(0610- )
ﾌﾛﾝﾄｻﾝｼｪｰﾄﾞ(TOYOTA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60162 | ||||
| 90385-11005 | ||||
| 90541-10020 | ||||
| 91651-B0845 | ||||
ILLUST NO. 1 OF 3(0610- )
ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｳｪｻﾞｰｽﾄﾘｯﾌﾟｸﾐﾂｹﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60076 | ||||
| 90163-50011 | ||||
| 90189-05046 | ||||
| 90189-06006 | ||||
| 90189-06028 | ||||
| 90189-06029 | ||||
| 90189-06111 | ||||
| 90467-08223 | ||||
| 90467-12079 | ||||
| 91551-80614 | ||||
| 91611-B0816 | ||||
| Linked diagrams | ||||
| 4701 | ||||
ILLUST NO. 2 OF 3(0610- )
ﾌﾛﾝﾄｻﾝｼｪｰﾄﾞ(HINO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60162 | ||||
| 90385-11005 | ||||
| 90541-10020 | ||||
| 91651-B0845 | ||||
ILLUST NO. 1 OF 3(0610- )
ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｾｯﾁｬｸﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60076 | ||||
| 90163-50011 | ||||
| 90189-05046 | ||||
| 90189-06006 | ||||
| 90189-06028 | ||||
| 90189-06029 | ||||
| 90189-06111 | ||||
| 90467-06155 | ||||
| 90467-08223 | ||||
| 90467-12079 | ||||
| 91551-80614 | ||||
| 91611-B0816 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 7552 | ||||
ILLUST NO. 3 OF 3(0610- )
ｻｲﾄﾞﾊﾞｲｻﾞ
| Part # | Description | Qty | Price |
|---|

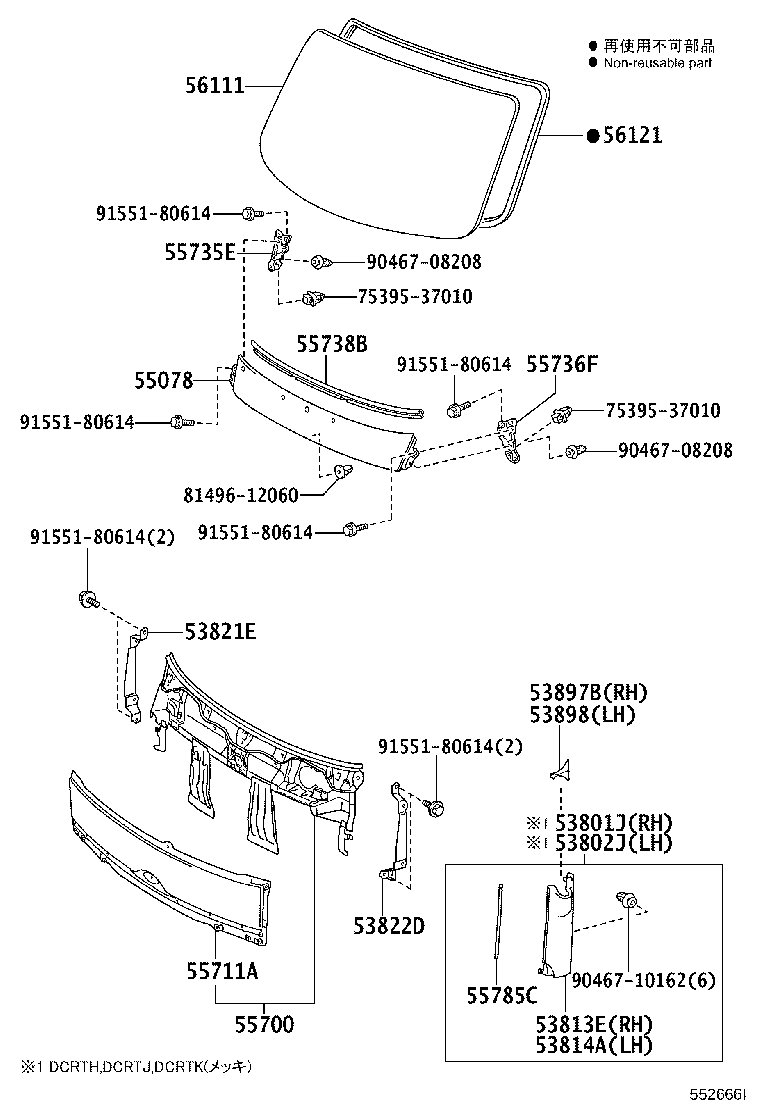

ILLUST NO. 1 OF 2(1107- )
ｳｲﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｳｪｻﾞｽﾄﾘｯﾌﾟﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53813E - PANEL, FRONT SIDE, RH | ||||
| 53813-37100H0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),TURQUOISE,766 |
1 | ||
| 53813-37100A0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),WHITE,058 |
1 | ||
| 53813-37120J0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD BLUE,8P0 |
1 | ||
| 53813-37110 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37130 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120A0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD WHITE,058 |
1 | ||
| 53813-37100J0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),BLUE,8P0 |
1 | ||
| 53813-37120H0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD TURQUOISE,766 |
1 | ||
| 53814A - PANEL, FRONT SIDE, LH | ||||
| 53814-37100H0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),TURQUOISE,766 |
1 | ||
| 53814-37110 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120A0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD WHITE,058 |
1 | ||
| 53814-37100A0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),WHITE,058 |
1 | ||
| 53814-37100J0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),BLUE,8P0 |
1 | ||
| 53814-37120H0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD TURQUOISE,766 |
1 | ||
| 53814-37120J0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD BLUE,8P0 |
1 | ||
| 53814-37130 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53821E - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-37100 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53822D - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53897B - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH | ||||
| 53897-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 53897-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 53897-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898 - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH | ||||
| 53898-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 53898-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 55078 - COVER SUB-ASSY, FRONT PANEL | ||||
| 55078-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-37460 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55711A - PANEL, FRONT, LOWER | ||||
| 55711-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55735E - REINFORCEMENT, COWL BODY MOUNTING, RH | ||||
| 55735-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55735-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55736F - REINFORCEMENT, COWL BODY MOUNTING, LH | ||||
| 55736-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55736-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55738B - PROTECTOR, FRONT PANEL COVER, NO.1 | ||||
| 55738-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 55785-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-37120 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 56111-37120 |
XZU605..IV5 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 56101-37190 |
XZU675..DM5..DCRWD..CBU;XZC600,630,XZU600,630..SCB..DCRWD;XZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..DCRWD..(IV3,IV5,IV6) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 56101-37200 |
XZU675..DM5..DCRWD..CBU;XZC600,630,XZU600,630..SCB..DCRWD;XZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..DCRWD..(IV3,IV5,IV6) |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-25040 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| Common parts | ||||
| 75395-37010 | ||||
| 81496-12060 | ||||
| 90467-08208 | ||||
| 90467-10162 | ||||
| 91551-80614 | ||||

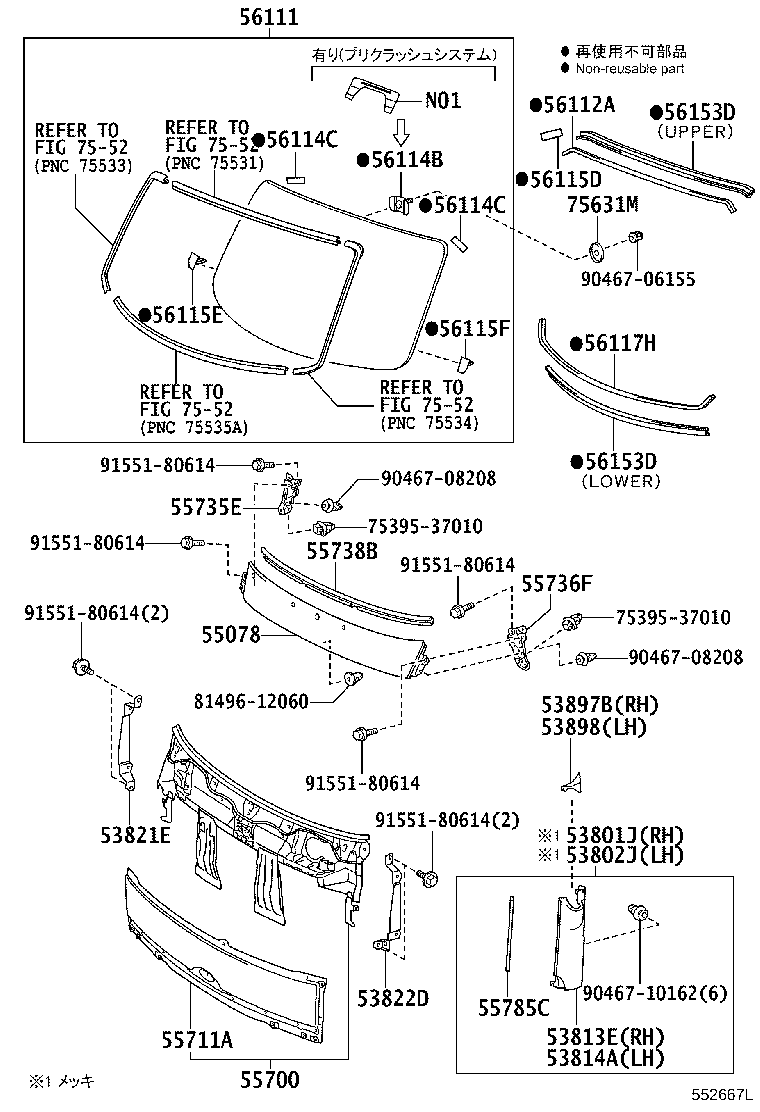

ILLUST NO. 1 OF 2(1107- )
ｳｲﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｾｯﾁｬｸﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53813E - PANEL, FRONT SIDE, RH | ||||
| 53813-37100H0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),TURQUOISE,766 |
1 | ||
| 53813-37100A0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),WHITE,058 |
1 | ||
| 53813-37120J0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD BLUE,8P0 |
1 | ||
| 53813-37110 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37130 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120A0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD WHITE,058 |
1 | ||
| 53813-37100J0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),BLUE,8P0 |
1 | ||
| 53813-37120H0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD TURQUOISE,766 |
1 | ||
| 53814A - PANEL, FRONT SIDE, LH | ||||
| 53814-37100H0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),TURQUOISE,766 |
1 | ||
| 53814-37110 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120A0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD WHITE,058 |
1 | ||
| 53814-37100A0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),WHITE,058 |
1 | ||
| 53814-37100J0 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),BLUE,8P0 |
1 | ||
| 53814-37120H0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD TURQUOISE,766 |
1 | ||
| 53814-37120J0 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD BLUE,8P0 |
1 | ||
| 53814-37130 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53821E - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-37100 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53822D - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53897B - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH | ||||
| 53897-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 53897-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 53897-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898 - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH | ||||
| 53898-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 53898-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 55078 - COVER SUB-ASSY, FRONT PANEL | ||||
| 55078-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-37460 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55711A - PANEL, FRONT, LOWER | ||||
| 55711-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55735E - REINFORCEMENT, COWL BODY MOUNTING, RH | ||||
| 55735-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55735-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55736F - REINFORCEMENT, COWL BODY MOUNTING, LH | ||||
| 55736-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55736-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55738B - PROTECTOR, FRONT PANEL COVER, NO.1 | ||||
| 55738-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 55785-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-37120 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 56111-37120 |
XZU605..IV5 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 56101-37190 |
XZU675..DM5..DCRWD..CBU;XZC600,630,XZU600,630..SCB..DCRWD;XZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..DCRWD..(IV3,IV5,IV6) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 56101-37200 |
XZU675..DM5..DCRWD..CBU;XZC600,630,XZU600,630..SCB..DCRWD;XZC605,645,655,675,XZU605,640,645,650,655,675,685,695..SCB..DCRWD..(IV3,IV5,IV6) |
1 | ||
| 56112A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-89108 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD *D,L=1250 |
1 | ||
| 56114B - RETAINER, WINDSHIELD GLASS | ||||
| 56114-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 56114C - RETAINER, WINDSHIELD GLASS | ||||
| 56114-89102 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 56114C - RETAINER, WINDSHIELD GLASS | ||||
| 56114-89102 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 56115D - STOPPER, WINDSHIELD GLASS | ||||
| 56115-89105 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 56115E - STOPPER, WINDSHIELD GLASS | ||||
| 56115-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 56115F - STOPPER, WINDSHIELD GLASS | ||||
| 56115-37030 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 56117H - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-89108 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD *D,L=1630 |
1 | ||
| 56117-89108 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD *D,L=1630,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 56153D - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-89104 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD 上側 |
1 | ||
| 56153-89104 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),上側 |
1 | ||
| 56153-89105 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD 下側 |
1 | ||
| 56153D - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-89104 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD 上側 |
1 | ||
| 56153-89104 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),上側 |
1 | ||
| 56153-89105 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD 下側 |
1 | ||
| 75631M - GARNISH, ROOF TOP, FRONT | ||||
| 75631-89101 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| Common parts | ||||
| 75395-37010 | ||||
| 81496-12060 | ||||
| 90467-06155 | ||||
| 90467-08208 | ||||
| 90467-10162 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 7552 | ||||
ILLUST NO. 2 OF 2(1107- )
ｱﾘ(ﾌﾛﾝﾄｻﾝｼｪｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63787B - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 63787-95400 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74306A - SUPPORT SUB-ASSY, FRONT VISOR | ||||
| 74306-37050 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37040 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74306-37050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37050 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74306-37040 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74321B - VISOR, FRONT | ||||
| 74321-37011 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37011 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ@TOYOTA |
1 | ||
| 74321-37021 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ HINO |
1 | ||
| 74321-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37031 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37041 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37021 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ@HINO |
1 | ||
| 74321-37031 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37041 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37041 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ HINO |
1 | ||
| 74325B - SUPPORT, FRONT VISOR, RH | ||||
| 74325-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37021 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74325-37021 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37031 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37031 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326B - SUPPORT, FRONT VISOR, LH | ||||
| 74326-37021 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326-37021 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37031 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37031 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74327A - PAD, FRONT VISOR | ||||
| 74327-37020 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74327-37020 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
2 | ||
| 74327A - PAD, FRONT VISOR | ||||
| 74327-37020 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74327-37020 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
2 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.P:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.Q:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.P:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.Q:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.P:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.Q:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328B - PAD, FRONT VISOR, NO.2 | ||||
| 74328-95400 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
6 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
6 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60162 | ||||
| 90385-11005 | ||||
| 90541-10020 | ||||
| 91651-B0845 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
