XZU605A-TYFMX5 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

diagram 51961C 51962 51962 51963B 51964B 51968C 9017814007 91645C1032 9167201460 9167201460 9167201460 9413001002 9413001402 9413001432 9462241400
Part # Description Qty Price
Common parts
90178-14007
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

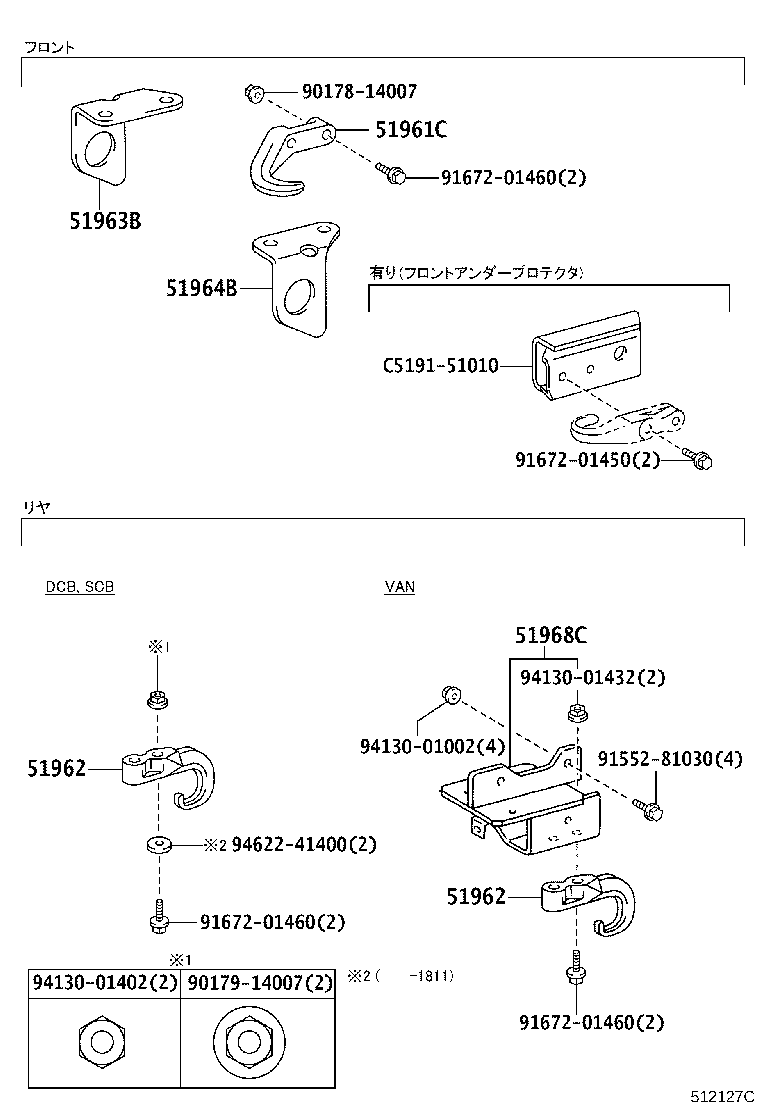

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

diagram 51961C 51962 51962 51963B 51964B 51968C 9017814007 9017914007 9155281030 9167201450 9167201460 9167201460 9167201460 9413001002 9413001402 9413001432 9462241400 C519151010
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37040

XZU600..(20T,40T)..(DCRWD,DCVTO)..IV6;XZU642,650,652..(35T,40T)..(DCRWD,DCVTO);XZU602,605,640..(DM6,T3)..(DCRWD,DCVTO)..(IV5,IV6)

牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51962 - HOOK, NO.2
51961-36040

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51962 - HOOK, NO.2
51961-36040

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU600,640..SCB..(DCRWD,DCVTO);XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU602,605,630,642,645,652,655,675,685,695..DCRWD

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU600,640..SCB..(DCRWD,DCVTO);XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU602,605,630,642,645,652,655,675,685,695..DCRWD

 1
Common parts
90178-14007
90179-14007
91552-81030
91672-01450
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400
C5191-51010

ILLUST NO. 1 OF 2(1905- )XZC605,645,655,XZU605,645,655..DCRWD

Click highlighted areas on diagram

diagram 51436B 51436B 51448B 51448B 51473A 51474 53345C 55827A 9011908C42 9011908C42 9011908C42 9155281025 91651B0825 91651B0825 9165340820 9165340820
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..DCRWD,DCVTO

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..DCRWD,DCVTO

 2
51448B - SHUTTER, ENGINE REAR SIDE
51448-37270

XZU605..IV5

遮音ｶﾊﾞｰ無し仕様

 1
51448-37340

XZC600,XZU600,605,642..(DM3,DM5,DM6,DM7)..DCRWD..(CBU,IV3,IV5)

 1
51448B - SHUTTER, ENGINE REAR SIDE
51448-37270

XZU605..IV5

遮音ｶﾊﾞｰ無し仕様

 1
51448-37340

XZC600,XZU600,605,642..(DM3,DM5,DM6,DM7)..DCRWD..(CBU,IV3,IV5)

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37270

XZC605,645,655,XZU605,645,655..DCRWD

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37210

XZC605,645,655,XZU605,645,655..DCRWD

 1
53345C - BRACKET, AIR DEFLECTOR, NO.2
53304-37010

XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 1
55827A - DUCT, VENTILATOR AIR GUIDE
55827-37090

XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 1
Common parts
90119-08C42
91552-81025
91651-B0825
91653-40820
