XZU605A-TYFMX5 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

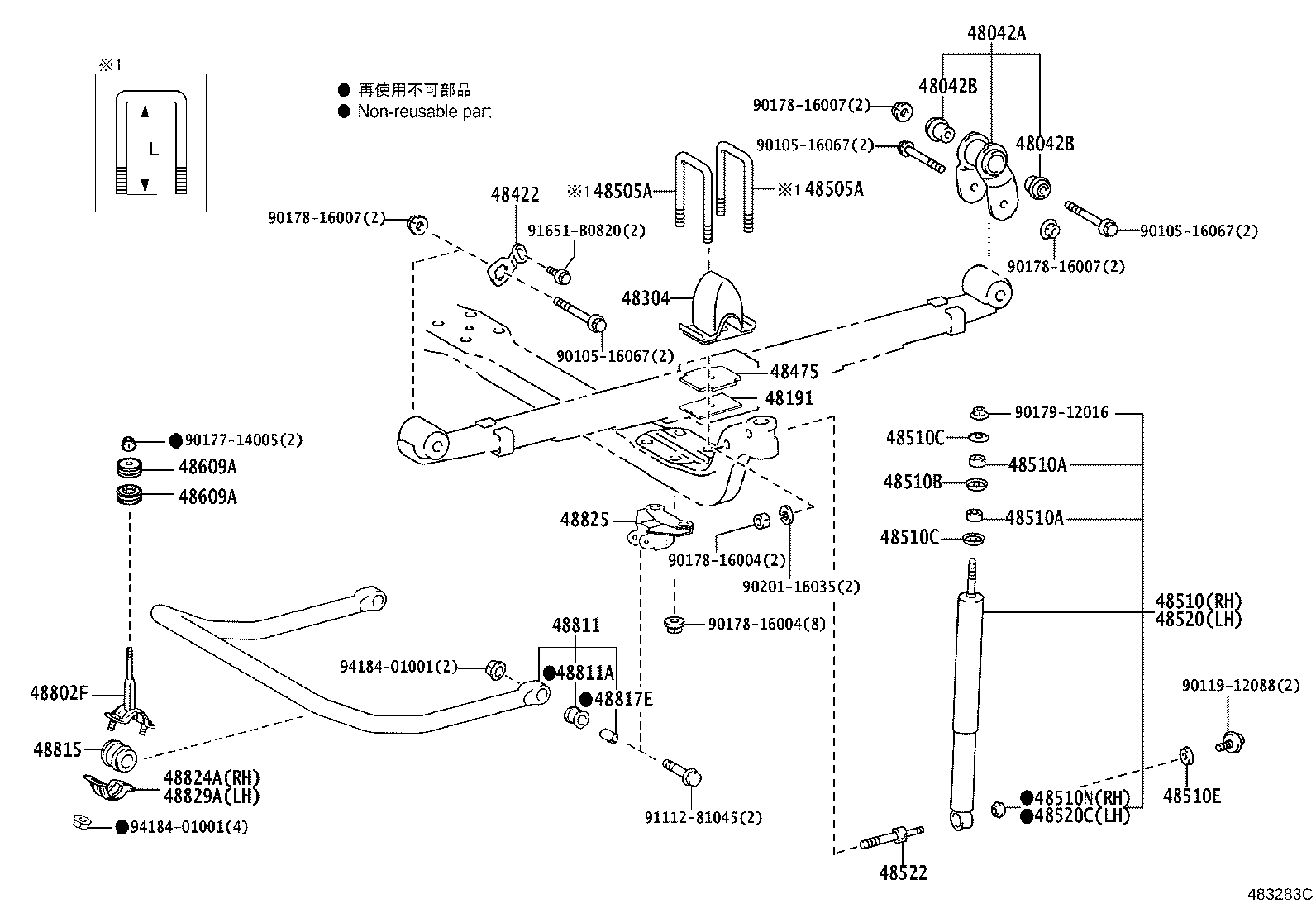

ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6

Click highlighted areas on diagram

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

diagram 48042A 48042B 48042B 48191 48304 48422 48475 48505A 48505A 48510 48510A 48510A 48510B 48510C 48510C 48510E 48510N 48520 48520C 48522 48609A 48609A 48802F 48811 48811A 48815 48817E 48824A 48825 48829A 9010516067 9010516067 9010516067 9011912088 9017714005 9017816004 9017816004 9017816007 9017816007 9017816007 9017912016 9020116035 9111281045 91651B0820 9418401001 9418401001
Part # Description Qty Price
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80839

XZC605,645,655,XZU605,645,655..DCRWD

ﾏｰｸ 48510−37081

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
48507-37010

XZC605,645,655,XZU605,645,655..DCRWD

 2
48510A - CUSHION, FRONT SHOCK ABSORBER
48507-37010

XZC605,645,655,XZU605,645,655..DCRWD

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80839

XZC605,645,655,XZU605,645,655..DCRWD

ﾏｰｸ 48510−37081

 1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 4
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 4
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-37081

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 2
48811 - BAR, STABILIZER, FRONT
48811-37100

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37110

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-37061

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-37061

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 1
Common parts
90105-16067
90119-12088
90177-14005
90178-16004
90178-16007
90179-12016
90201-16035
91112-81045
91651-B0820
94184-01001

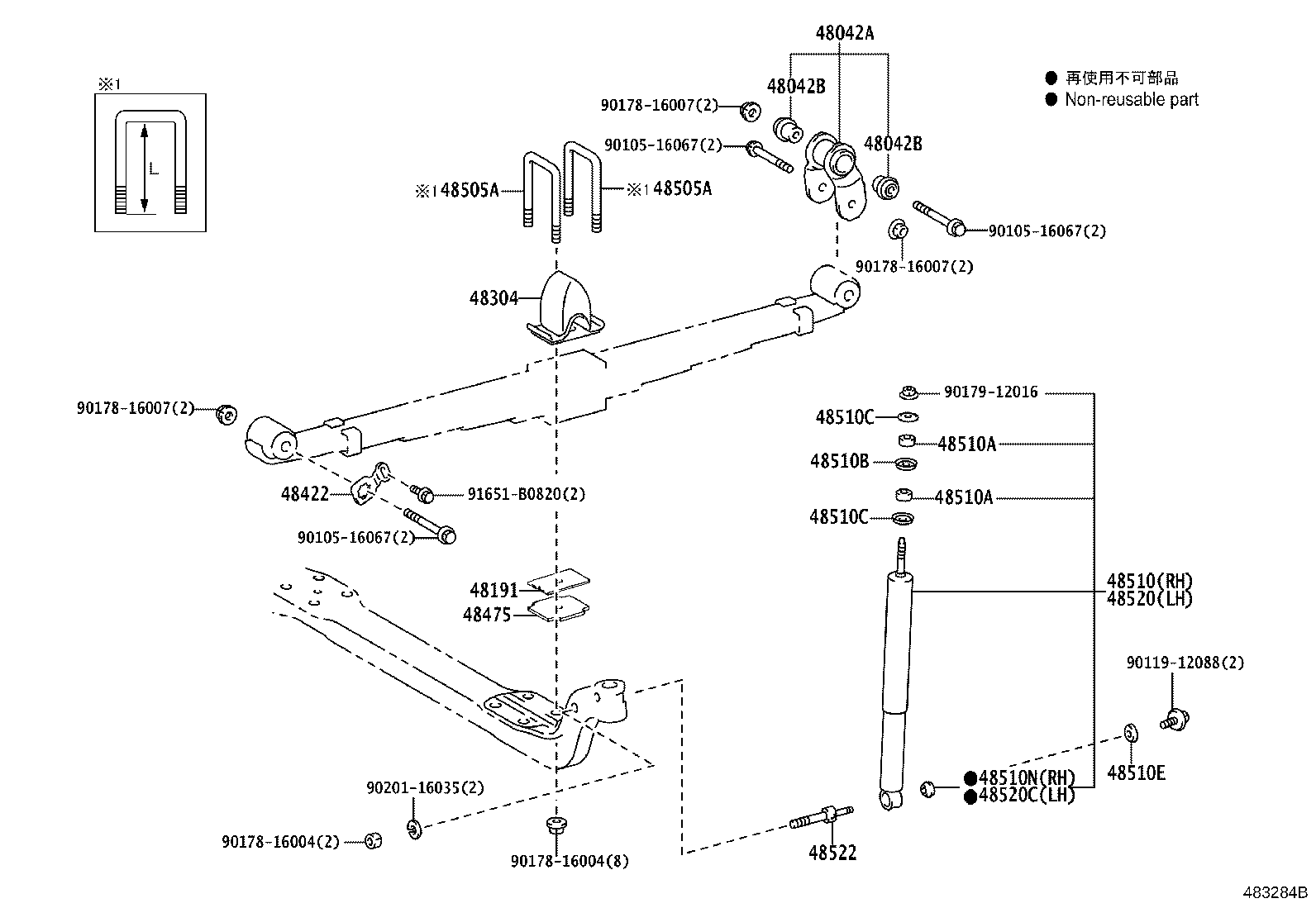

ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6

Click highlighted areas on diagram

ﾅｼ(ｽﾀﾋﾞﾗｲｻﾞ)

diagram 48042A 48042B 48042B 48191 48304 48422 48475 48505A 48505A 48510 48510A 48510A 48510B 48510C 48510C 48510E 48510N 48520 48520C 48522 9010516067 9010516067 9010516067 9011912088 9017816004 9017816004 9017816007 9017816007 9017816007 9017912016 9020116035 91651B0820
Part # Description Qty Price
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80839

XZC605,645,655,XZU605,645,655..DCRWD

ﾏｰｸ 48510−37081

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
48507-37010

XZC605,645,655,XZU605,645,655..DCRWD

 2
48510A - CUSHION, FRONT SHOCK ABSORBER
48507-37010

XZC605,645,655,XZU605,645,655..DCRWD

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80839

XZC605,645,655,XZU605,645,655..DCRWD

ﾏｰｸ 48510−37081

 1
Common parts
90105-16067
90119-12088
90178-16004
90178-16007
90179-12016
90201-16035
91651-B0820

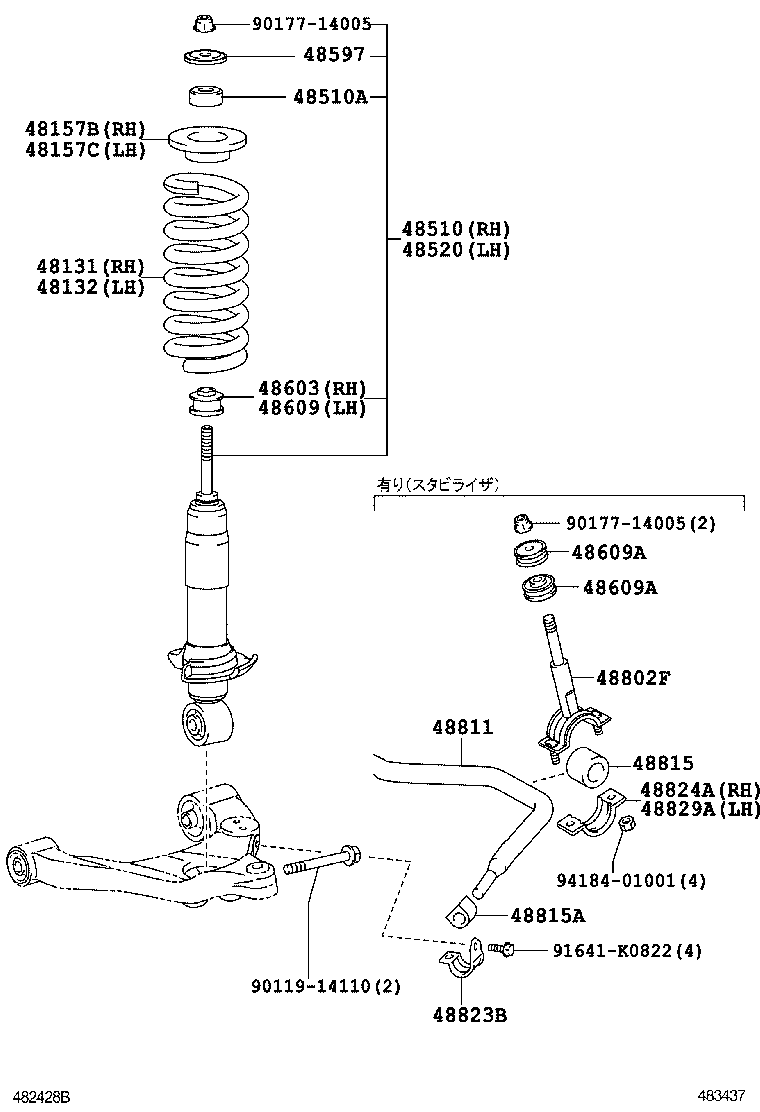

(1107- )XZC605,645,655,XZU605,645,655

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48510 48510A 48520 48597 48603 48609 48609A 48609A 48802F 48811 48815 48815A 48823B 48824A 48829A 9011914110 9017714005 9017714005 91641K0822 9418401001
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-37230

XZU605..IV5;XZU645,655..30T..DCRWD

 1
48132 - SPRING, FRONT COIL, LH
48131-37180

XZU605..IV5;XZU645,655..30T..DCRWD

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48159-37010

XZC605,645,655,XZU605,645,655..DCRWD

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48159-37010

XZC605,645,655,XZU605,645,655..DCRWD

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80839

XZC605,645,655,XZU605,645,655..DCRWD

ﾏｰｸ 48510−37081

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
48507-37010

XZC605,645,655,XZU605,645,655..DCRWD

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80839

XZC605,645,655,XZU605,645,655..DCRWD

ﾏｰｸ 48510−37081

 1
48597 - RETAINER, SHOCK ABSORBER CUSHION
48597-37010

XZC605,645,655,XZU605,645,655..DCRWD

 2
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-37020

XZC605,645,655,XZU605,645,655..DCRWD

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-37020

XZC605,645,655,XZU605,645,655..DCRWD

 1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 4
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 4
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-37081

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 2
48811 - BAR, STABILIZER, FRONT
48811-37100

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37110

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 2
48815A - BUSH, FRONT STABILIZER BAR, NO.2
48815-25060

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 2
48823B - COVER, FRONT STABILIZER BRACKET
48823-25020

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6)

 2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-37061

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-37061

XZC605,645,655,XZU605,645,655..DCRWD..(IV3,IV5,IV6);XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 1
Common parts
90119-14110
90177-14005
91641-K0822
94184-01001
