XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace
(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6

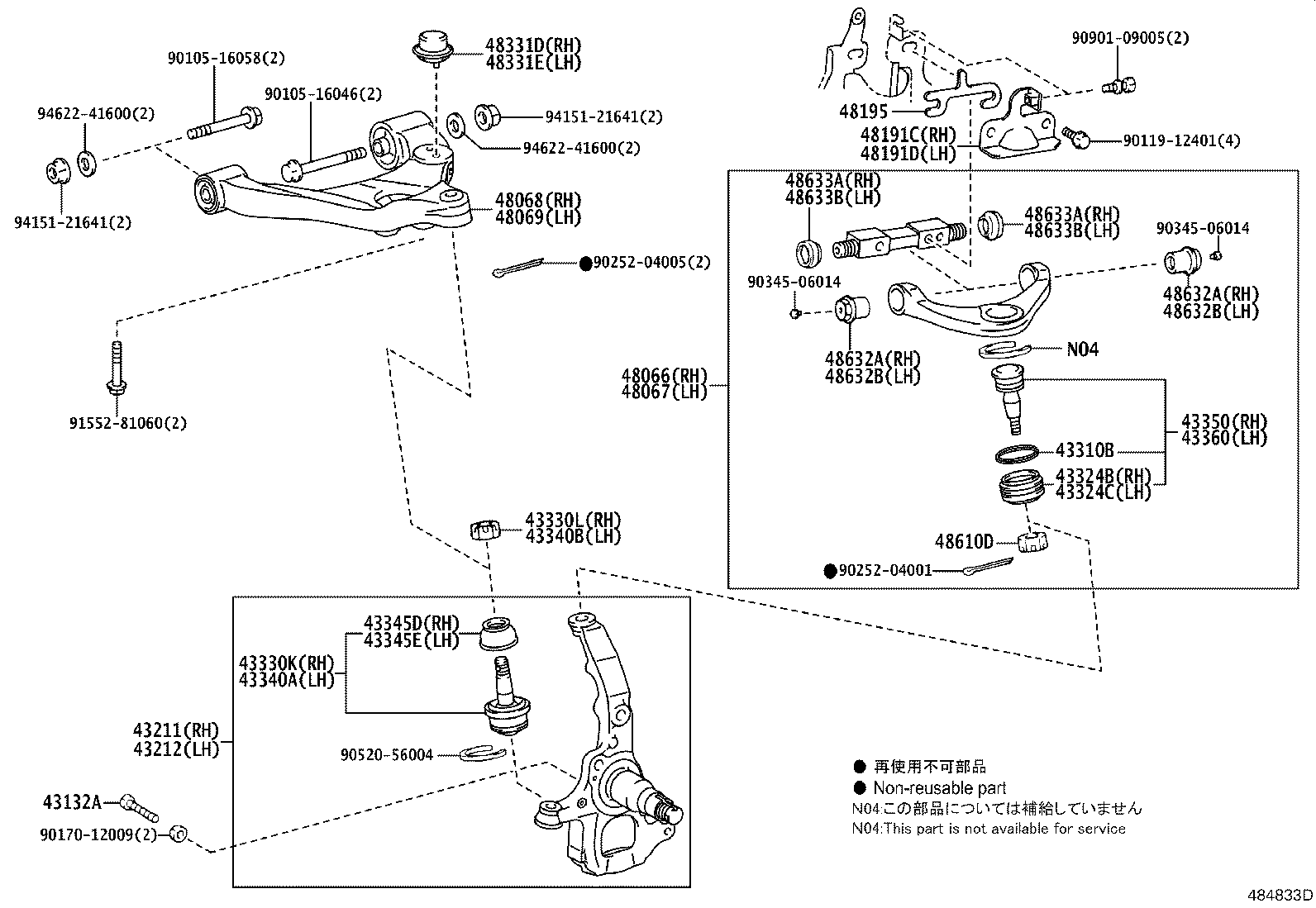

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-12015 |
XZC605,645,655,XZU605,645,655..DCRWD |
2 | ||
| 90106-12015 |
XZC605,645,655,XZU605,645,655..DCRWD |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-37130 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43201-37130 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-37130 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43202-37130 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 90179-10121 | ||||
| 94130-61200 | ||||
| 96451-00600 | ||||
| 96456-01000 | ||||
(1905- )XZC605,645,655,XZU605,645,655..DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-12015 |
XZC605,645,655,XZU605,645,655..DCRWD |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-37130 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-37130 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43310B - RING, SET (FOR DUST COVER) | ||||
| 90522-32002 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 43324B - COVER, FRONT UPPER BALL JOINT DUST, RH | ||||
| 43324-37020 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
1 | ||
| 43324C - COVER, FRONT UPPER BALL JOINT DUST, LH | ||||
| 43324-37020 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-37011 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-20001 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-37011 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-20001 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43345D - COVER, LOWER BALL JOINT DUST, RH | ||||
| 43345-37021 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43345E - COVER, LOWER BALL JOINT DUST, LH | ||||
| 43345-37021 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43310-39095 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43310-39095 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-80002 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-80003 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-37010 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-37010 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48191C - PLATE, FRONT SUPENSION CASTER ADJUST, RH | ||||
| 48191-37140 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48191D - PLATE, FRONT SUPENSION CASTER ADJUST, LH | ||||
| 48192-37130 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-12016 |
XZC605,645,655,XZU605,645,655..DCRWD 厚さ=0.8 |
1 | ||
| 90565-12013 |
XZC605,645,655,XZU605,645,655..DCRWD 厚さ=4.0 |
1 | ||
| 90565-12014 |
XZC605,645,655,XZU605,645,655..DCRWD 厚さ=2.0 |
1 | ||
| 90565-12015 |
XZC605,645,655,XZU605,645,655..DCRWD 厚さ=1.2 |
1 | ||
| 48331D - BUMPER, FRONT SPRING, NO.1 RH | ||||
| 48331-37030 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48331E - BUMPER, FRONT SPRING, NO.1 LH | ||||
| 48331-37030 |
XZC605,645,655,XZU605,645,655..DCRWD |
1 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90171-18003 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD |
2 | ||
| Common parts | ||||
| 90105-16046 | ||||
| 90105-16058 | ||||
| 90119-12401 | ||||
| 90170-12009 | ||||
| 90252-04001 | ||||
| 90252-04005 | ||||
| 90345-06014 | ||||
| 90520-56004 | ||||
| 90901-09005 | ||||
| 91552-81060 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||
