XZU605A-TYFMX5 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

Click highlighted areas on diagram

2-ｽﾎﾟｰｸ,ｱﾘ(ｴｱﾊﾞｯｸﾞ)

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price

(1905- )DCRWD,DCVTO

Click highlighted areas on diagram

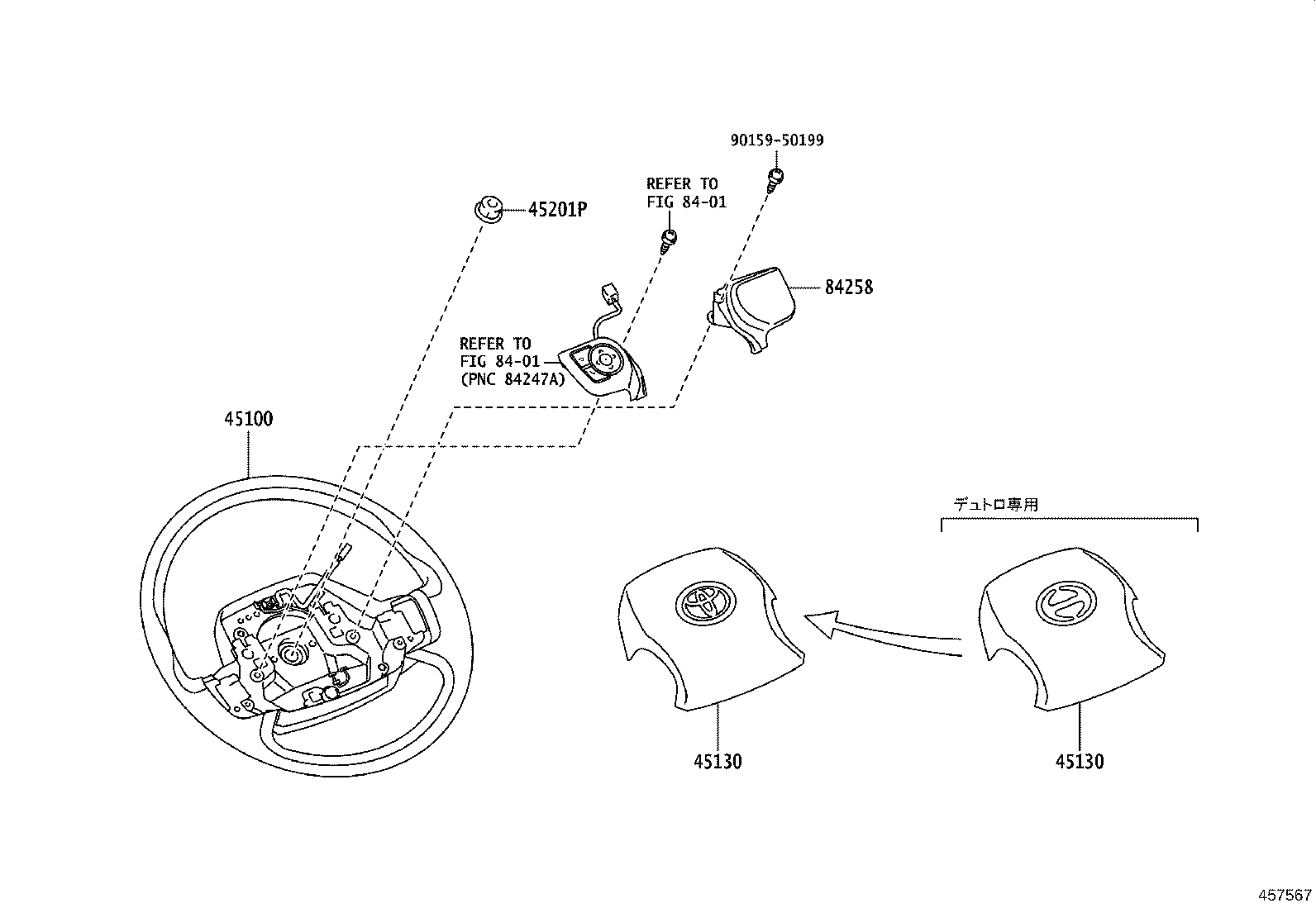

diagram 45100 45130 45130 45201P 8401 8401 84258 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-37120C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37220C0

XZU650..DCVTO..CBU;XZU640,675..T4..DCRWD;XZU640..6FC..DCRWD..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU655..SCB..20T..DCRWD..CBU;XZU675..DM5..20T..DCRWD..CBU;XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZU605..SCB..(T4,T5)..6FC..20T..DCRWD..IV3;XZU602,642,652,655..(T3,T4)..(30T,35T,40T)..DCRWD;XZU600,605,640,645,685,695..SCB..(DM6,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV5,IV6)

ﾃﾞｭﾄﾛ専用&VSC−無し&SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37240C0

XZU650..DCVTO..CBU;XZU640,675..T4..DCRWD;XZU640..6FC..DCRWD..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU655..SCB..20T..DCRWD..CBU;XZU675..DM5..20T..DCRWD..CBU;XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZU605..SCB..(T4,T5)..6FC..20T..DCRWD..IV3;XZU602,642,652,655..(T3,T4)..(30T,35T,40T)..DCRWD;XZU600,605,640,645,685,695..SCB..(DM6,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV5,IV6)

VSC−無し&SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37230C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

BLACK,TRIM1#

 1
45130-37210C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37220C0

XZU650..DCVTO..CBU;XZU640,675..T4..DCRWD;XZU640..6FC..DCRWD..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU655..SCB..20T..DCRWD..CBU;XZU675..DM5..20T..DCRWD..CBU;XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZU605..SCB..(T4,T5)..6FC..20T..DCRWD..IV3;XZU602,642,652,655..(T3,T4)..(30T,35T,40T)..DCRWD;XZU600,605,640,645,685,695..SCB..(DM6,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV5,IV6)

ﾃﾞｭﾄﾛ専用&VSC−無し&SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37240C0

XZU650..DCVTO..CBU;XZU640,675..T4..DCRWD;XZU640..6FC..DCRWD..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU655..SCB..20T..DCRWD..CBU;XZU675..DM5..20T..DCRWD..CBU;XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZU605..SCB..(T4,T5)..6FC..20T..DCRWD..IV3;XZU602,642,652,655..(T3,T4)..(30T,35T,40T)..DCRWD;XZU600,605,640,645,685,695..SCB..(DM6,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV5,IV6)

VSC−無し&SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37230C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

BLACK,TRIM1#

 1
45130-37210C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用,BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
84258 - COVER, STEERING PAD, RH
84258-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
Common parts
90159-50199
Linked diagrams
8401
