XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0610- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-01502 | ||||
| 90099-18005 | ||||
| 90099-18010 | ||||

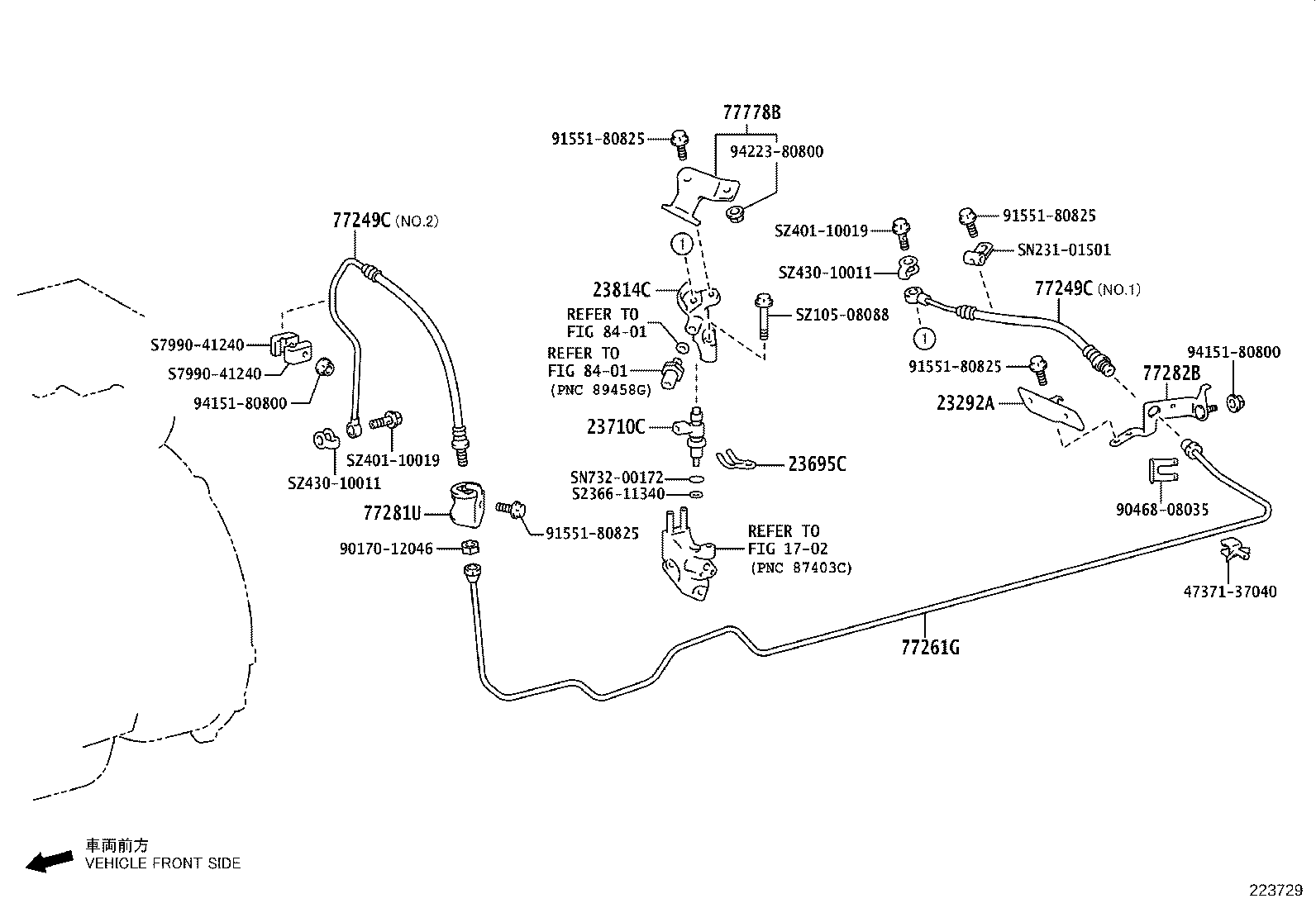

ILLUST NO. 3 OF 3(1905- )N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRVT,DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23292A - PROTECTOR, FUEL HOSE | ||||
| 77476-37040 |
N04C..XZC605,645,XZU60#,64#..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO) |
1 | ||
| 77476-37022 |
N04C..XZC605,645,XZU60#,64#..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO) |
1 | ||
| 23695C - CLAMP, NOZZLE HOLDER | ||||
| 23695-E0100 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23710C - INJECTOR ASSY, EXHAUST FUEL ADDITION | ||||
| 23710-E0041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23710-E0040 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23814C - PIPE, FUEL DELIVERY | ||||
| 23814-E0K10 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77249C - HOSE, FUEL EMISSION | ||||
| 77249-37380 |
XZC60#,645,XZU60#,64#..DCRWD,DCVTO NO.1 |
1 | ||
| 77249-37381 |
XZC60#,645,XZU60#,64#..DCRWD,DCVTO NO.1 |
1 | ||
| 77249-37450 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 77249-37451 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 77249C - HOSE, FUEL EMISSION | ||||
| 77249-37380 |
XZC60#,645,XZU60#,64#..DCRWD,DCVTO NO.1 |
1 | ||
| 77249-37381 |
XZC60#,645,XZU60#,64#..DCRWD,DCVTO NO.1 |
1 | ||
| 77249-37450 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 77249-37451 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 77261G - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-37180 |
XZC605,XZU60#..(DM3,DM6,T2,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 77281U - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-37640 |
XZU685,695..SCB..DCRWD;XZC60#,645,655,675,XZU60#,64#,65#,675..DCRWD,DCVTO |
1 | ||
| 77282B - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77282-37081 |
XZC605,645,XZU60#,64#..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO) |
1 | ||
| 77282-37082 |
XZC605,645,XZU60#,64#..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO) |
1 | ||
| 77778B - BRACKET, FUEL HOSE CLAMP | ||||
| 77778-37040 |
XZC60#,645,XZU60#,64#..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90170-12046 | ||||
| 90468-08035 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 94223-80800 | ||||
| S2366-11340 | ||||
| S7990-41240 | ||||
| SN231-01501 | ||||
| SN732-00172 | ||||
| SZ105-08088 | ||||
| SZ401-10019 | ||||
| SZ430-10011 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(1905- )N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23271-78591 |
N04C..XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90466-16004 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90466-16004 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| SN732-10493 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 22214B - VALVE ASSY, FUEL ADDITION CUT | ||||
| S2210-E0060 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78141 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 22811D - STAY, INJECTION PUMP, NO.2 | ||||
| S2251-22060 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 22812A - RING, O | ||||
| SN732-10793 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23816-78121 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| S7990-43390 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| S7990-43390 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| SZ430-08013 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| SZ430-08013 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 21811-E0060 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 21811-E0060 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-E0540 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23271M - HOSE, FUEL | ||||
| 95337-06012 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| 21576-E0170 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
2 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| 21576-E0170 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
2 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| 21576-E0170 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
2 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
2 | ||
| 21576-E0170 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
2 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| SZ466-18001 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| SZ466-18001 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-78721 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96133-41301 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96133-41301 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78030 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| S2307-41070 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78030 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| S2307-41070 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78030 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| S2307-41070 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78030 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| S2307-41070 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78170 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78170 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78160 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78160 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 21576-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S2304-EW041 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S7990-42150 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S7990-41021 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S7990-42150 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S7990-41021 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S7990-42150 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S7990-41021 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S7990-42150 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
2 | ||
| S7990-41021 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 21576-E0020 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78230 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
1 | ||
| 23801-78231 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
1 | ||
| 23801-78241 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78230 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
1 | ||
| 23801-78231 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
1 | ||
| 23801-78241 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23801M - BOLT, UNION | ||||
| SZ401-10019 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23801M - BOLT, UNION | ||||
| SZ401-10019 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23801N - GASKET | ||||
| SZ209-14017 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
3 | ||
| 23801N - GASKET | ||||
| SZ209-14017 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
3 | ||
| 23801N - GASKET | ||||
| SZ209-14017 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
3 | ||
| 23801N - GASKET | ||||
| SZ209-14017 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
3 | ||
| 23801N - GASKET | ||||
| SZ209-14017 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
2 | ||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
3 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23801-78200 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 23803H - PIPE SUB-ASSY, FUEL RETURN | ||||
| 23816-78140 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) | ||||
| 21811-E0070 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-78130 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23816-78180 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 23816-78131 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-78130 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23816-78180 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 23816-78131 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
3 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
3 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| SZ430-10011 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
3 | ||
| 23809L - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23809-78180 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-78060 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 23811G - PIPE, FUEL, NO.1 | ||||
| 23811-78300 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23811-78340 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23811-78311 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) NO.2 |
1 | ||
| 23811G - PIPE, FUEL, NO.1 | ||||
| 23811-78300 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23811-78340 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23811-78311 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) NO.2 |
1 | ||
| 23811J - BOLT, UNION | ||||
| SZ401-14004 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23811J - BOLT, UNION | ||||
| SZ401-14004 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 23849G - SUPPORT, FUEL PIPE | ||||
| 23809-78200 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 23809-78210 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
1 | ||
| 23849G - SUPPORT, FUEL PIPE | ||||
| 23809-78200 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.2 |
1 | ||
| 23809-78210 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) NO.1 |
1 | ||
| 23849H - SUPPORT, FUEL PIPE | ||||
| 23809-78080 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
1 | ||
| 23849-78240 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 23849H - SUPPORT, FUEL PIPE | ||||
| 23809-78080 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.2 |
1 | ||
| 23849-78240 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO NO.1 |
1 | ||
| 77297A - CONNECTOR, FUEL TUBE | ||||
| 77209-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| Common parts | ||||
| 21811-E0070 | ||||
| 21811-E0090 | ||||
| 21814-E0270 | ||||
| 82715-3VJ01 | ||||
| S2283-51510 | ||||
| S2283-51610 | ||||
| S7990-41240 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10825 | ||||
| SH552-10832 | ||||
| SH552-10840 | ||||
| SH552-10865 | ||||
| SH552-11020 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| SH552-15810 | ||||
| SL150-10808 | ||||
| SZ209-14017 | ||||
| SZ430-10011 | ||||
| SZ910-16362 | ||||
| SZ910-24483 | ||||
| Linked diagrams | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
