XZU605A-TYFMX5 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )N04C

Click highlighted areas on diagram

diagram 12261 12261 12261A 12261A 12261A 12261A 12270 12270G 1603 1603 1703 1703 17061C 17061D 9003105143 9003105149 9003301064 9003301064 9003301101 9091009080 S900700450
Part # Description Qty Price
Common parts
90031-05143
90031-05149
90033-01064
90033-01101
90910-09080
S9007-00450
Linked diagrams
1603
1703

(1905- )N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

Click highlighted areas on diagram

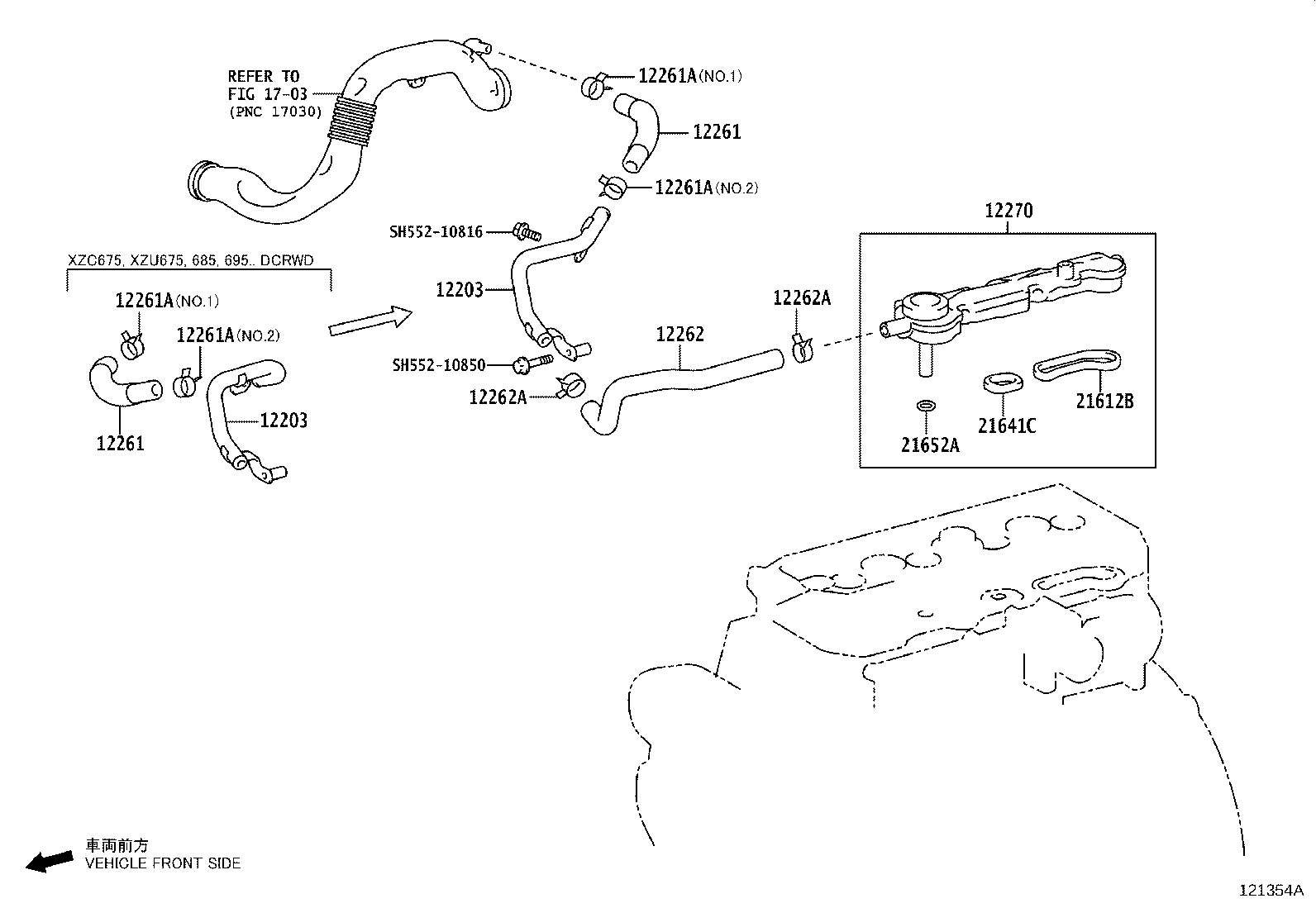

diagram 12203 12203 12261 12261 12261A 12261A 12261A 12261A 12262 12262A 12262A 12270 1703 21612B 21641C 21652A SH55210816 SH55210850
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-78291

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
12203-78290

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
12203 - PIPE SUB-ASSY, VENTILATION
12203-78291

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
12203-78290

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
12261 - HOSE, VENTILATION
12261-78810

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
12261 - HOSE, VENTILATION
12261-78810

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.2:ｲﾗｽﾄ参照

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.2:ｲﾗｽﾄ参照

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.2:ｲﾗｽﾄ参照

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.2:ｲﾗｽﾄ参照

 1
12262 - HOSE, VENTILATION, NO.2
12261-78800

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96136-42901

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96136-42901

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
12270 - SEPARATOR ASSY, OIL
12270-78051

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
21612B - GASKET
21612-78050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
21641C - GASKET
21641-78050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
21652A - RING, O
21652-78050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
Common parts
SH552-10816
SH552-10850
Linked diagrams
1703
