XZU605A-TYFMX5 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )N04C

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101V 11115 11116B 11116C 11116D 11116D 11116E 11116E 11122 11126 11131 11135 11201 11201H 11201H 11201Y 11202D 11202F 11213 11214 11228 11247 12108 12108 1709 1901 2201 2201 9003801019
Part # Description Qty Price
Common parts
90038-01019
Linked diagrams
1709
1901
2201

(1905- )N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101M 11101V 11115 11116B 11116C 11116D 11116D 11116E 11116E 11122 11126 11131 11135 11201H 11201Y 11202D 11213 11214 11228 1201 12180E 12601B 1901 2201 2201 SH55210825 SZ91024358
Part # Description Qty Price

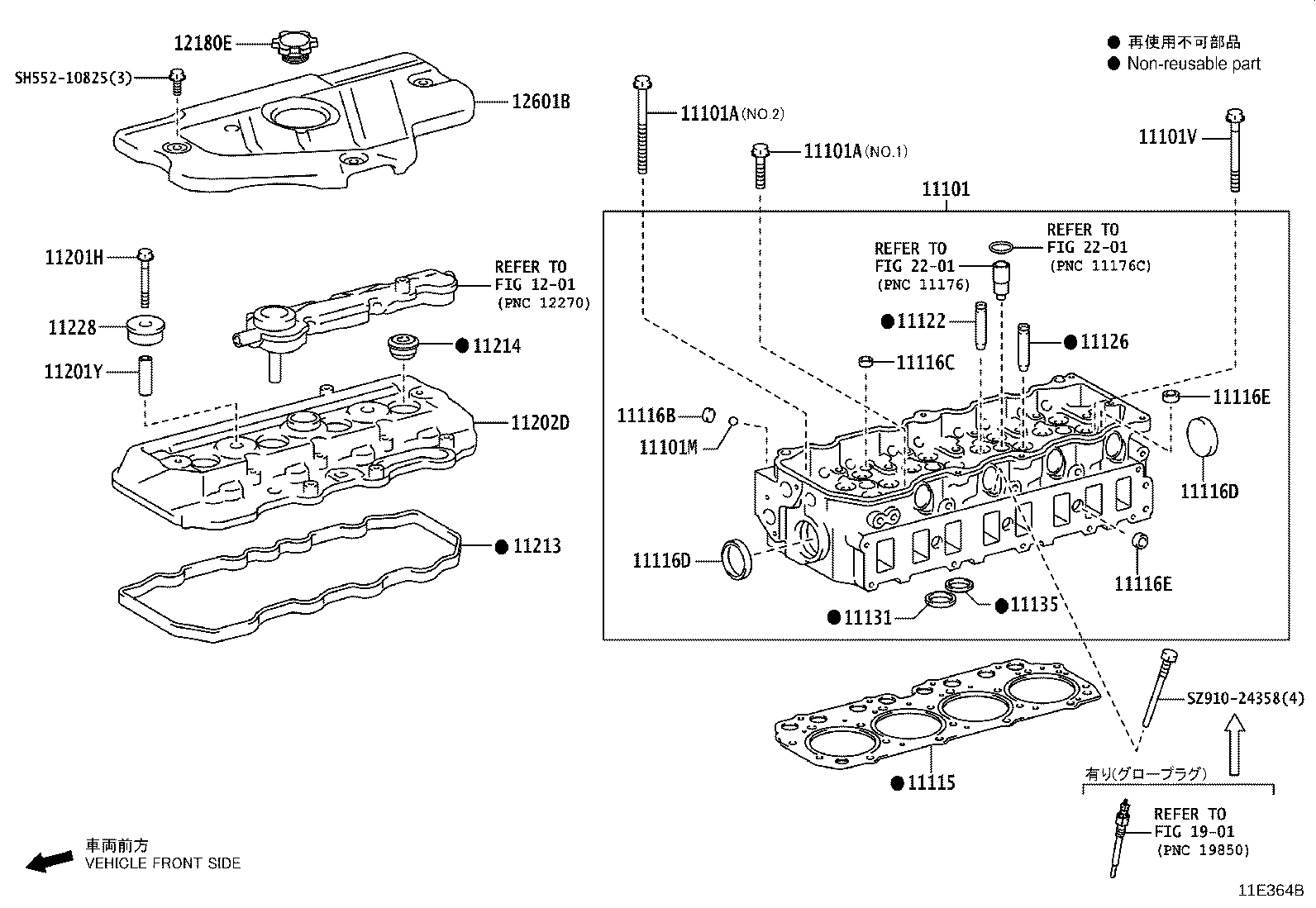

11101 - HEAD SUB-ASSY, CYLINDER
11101-78221

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
SH552-11035

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.1:ｲﾗｽﾄ参照

 3
S1118-52700

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.2:ｲﾗｽﾄ参照

 18
11101A - BOLT(FOR CYLINDER HEAD SET)
SH552-11035

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.1:ｲﾗｽﾄ参照

 3
S1118-52700

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

NO.2:ｲﾗｽﾄ参照

 18
11101M - BALL NO.1(FOR CYLINDER HEAD)
SN441-00508

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 4
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
SH552-11000

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
11115 - GASKET, CYLINDER HEAD
11115-78101

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
11116B - PLUG, TIGHT, NO.2
SN411-01412

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 4
11116C - PLUG, TIGHT, NO.3
SN411-01712

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 5
11116D - PLUG, TIGHT, NO.4
SN411-05016

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
11116D - PLUG, TIGHT, NO.4
SN411-05016

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
11116E - PLUG, TIGHT, NO.5
SN411-02216

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 11
11116E - PLUG, TIGHT, NO.5
SN411-02216

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 11
11122 - BUSH, INTAKE VALVE GUIDE
S1112-21220

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
S1112-21220

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

STD

 8
11131 - SEAT, INTAKE VALVE
S1113-11540

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

STD

 8
11135 - SEAT, EXHAUST VALVE
11135-E0010

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

STD

 8
11201H - BOLT(FOR CYLINDER HEAD COVER)
SH552-10865

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
11201Y - SPACER(FOR CYLINDER HEAD COVER)
SZ910-16303

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2
11201-78061

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-78060

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11213-78082

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 4
11228 - CUSHION, CYLINDER HEAD COVER
11228-78050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
12180E - CAP ASSY, OIL FILLER
12180-E0010

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-78022

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
12601-78021

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
Common parts
SH552-10825
SZ910-24358
Linked diagrams
1201
1901
2201
