XZU605-TPMMB (2011)
Toyota Dyna/Toyoace

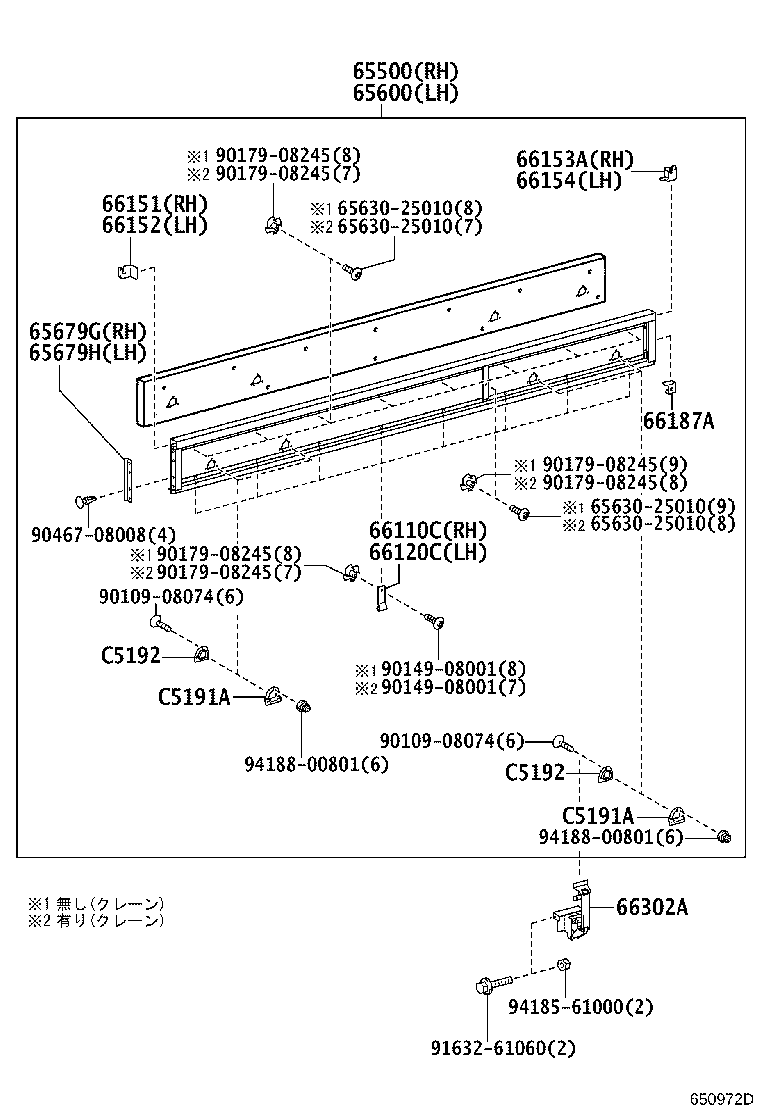

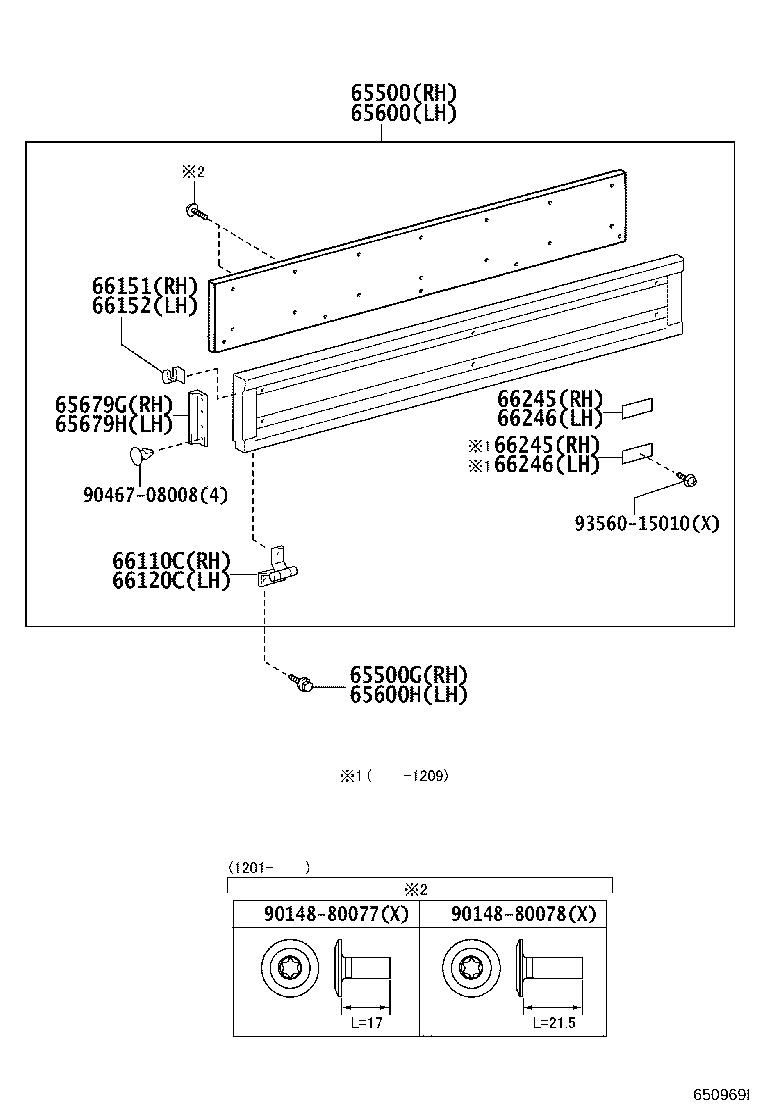

ILLUST NO. 1 OF 2(1107- )T2,T3,T4,T5..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU600,605..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
8 | ||
| 90119-08464 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU600,605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU600,605..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
8 | ||
| 90119-08464 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU600,605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| C5366-95700 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZU655..SCB..T4..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| C5365-95700 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZU655..SCB..T4..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2 | ||||
| 66187-37050 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU 左側 |
1 | ||
| 66187-37040 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU 右側 |
1 | ||
| 66245 - PROTECTOR, REAR BODY, NO.3 RH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66245 - PROTECTOR, REAR BODY, NO.3 RH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66246 - PROTECTOR, REAR BODY, NO.3 LH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66246 - PROTECTOR, REAR BODY, NO.3 LH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| Common parts | ||||
| 90148-80077 | ||||
| 90148-80078 | ||||
| 90467-08008 | ||||
| 93560-15010 | ||||

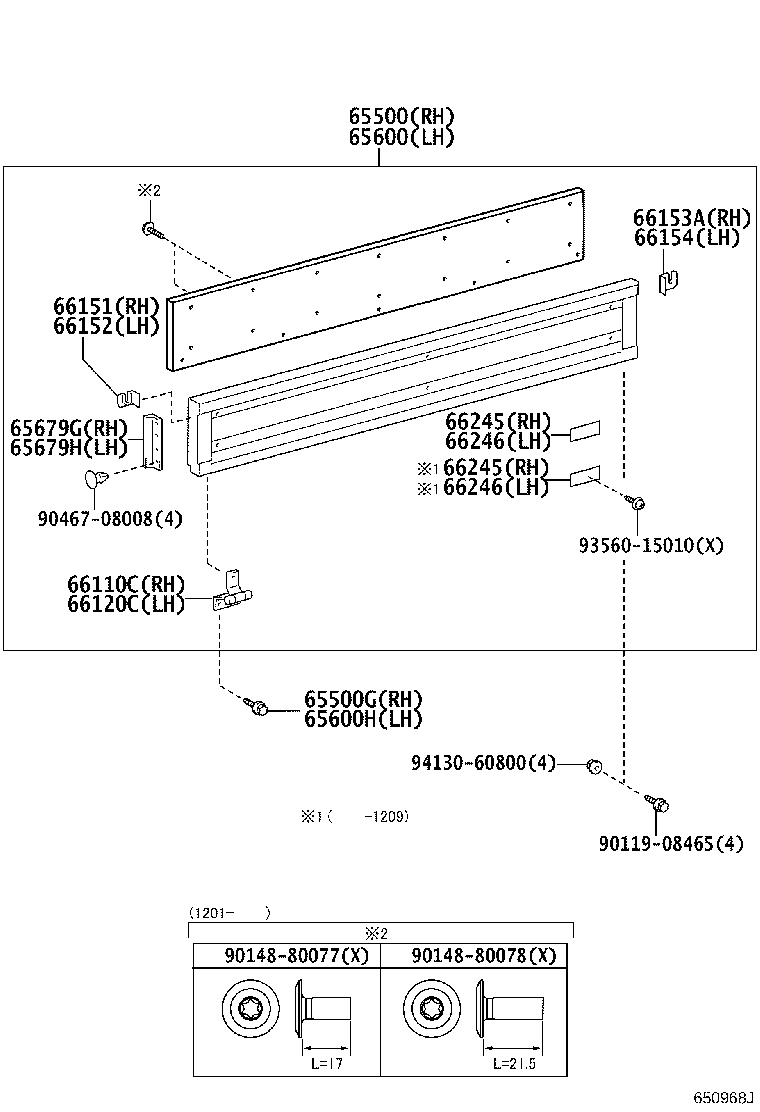

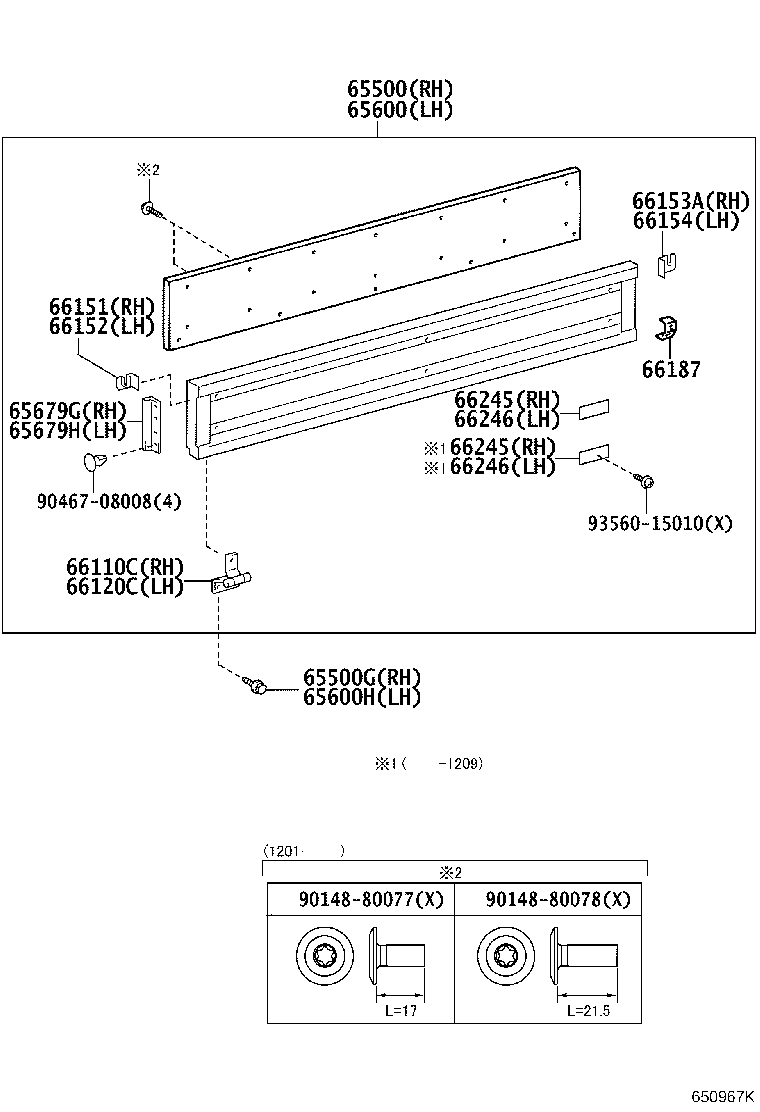

ILLUST NO. 1 OF 2(1107- )T2,T3,T4,T5..CBU
ﾊﾟﾜｰﾘﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU600,605..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
8 | ||
| 90119-08464 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU600,605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU600,605..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
8 | ||
| 90119-08464 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU600,605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| C5366-95700 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZU655..SCB..T4..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| C5365-95700 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZU655..SCB..T4..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66245 - PROTECTOR, REAR BODY, NO.3 RH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66245 - PROTECTOR, REAR BODY, NO.3 RH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66246 - PROTECTOR, REAR BODY, NO.3 LH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66246 - PROTECTOR, REAR BODY, NO.3 LH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| Common parts | ||||
| 90119-08465 | ||||
| 90148-80077 | ||||
| 90148-80078 | ||||
| 90467-08008 | ||||
| 93560-15010 | ||||
| 94130-60800 | ||||
ILLUST NO. 1 OF 2(1107- )T2,T3,T4,T5..CBU
ﾊﾟﾜｰｹﾞｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU600,605..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
8 | ||
| 90119-08464 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU600,605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU600,605..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
8 | ||
| 90119-08464 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU600,605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66245 - PROTECTOR, REAR BODY, NO.3 RH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66245 - PROTECTOR, REAR BODY, NO.3 RH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66246 - PROTECTOR, REAR BODY, NO.3 LH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| 66246 - PROTECTOR, REAR BODY, NO.3 LH | ||||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
10 | ||
| 66243-37060 |
BZU600..T4..30T..CBU;XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
12 | ||
| 66243-37060 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
12 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU600,605,675..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI,LPG)..CBU |
4 | ||
| 66243-37060 |
BZU600,TRC600,TRU600,XZC60#,675,XZU60#,675..SCB..(T2,T3,T4,T5)..CBU |
8 | ||
| Common parts | ||||
| 90148-80077 | ||||
| 90148-80078 | ||||
| 90467-08008 | ||||
| 93560-15010 | ||||
ILLUST NO. 2 OF 2(1107- )ST..CBU ; (1107- )XZC645,XZU645..20T..CBU ; (1107- )XZC605,675,XZU
ｻｲﾄﾞｹﾞｰﾄﾍﾙﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 66996-37011 | ||||
| 90201-10046 | ||||
| 90249-10205 | ||||
| 90249-10206 | ||||
| 90249-10207 | ||||
| 90249-10208 | ||||
| 90523-08003 | ||||
| 90541-07018 | ||||
| 91642-81025 | ||||
| 94151-80840 | ||||
| 94185-61000 | ||||
ILLUST NO. 2 OF 2(1107- )XZU685..SCB..CBU ; (1107- )XZU640,645..30T..CBU ; (1107- )XZC655,X
ｻｲﾄﾞｹﾞｰﾄﾍﾙﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 66996-37011 | ||||
| 90170-10035 | ||||
| 90201-10046 | ||||
| 90249-10098 | ||||
| 90249-10185 | ||||
| 90249-10195 | ||||
| 90249-10196 | ||||
| 90250-10029 | ||||
| 90523-08003 | ||||
| 91651-41020 | ||||
| 94130-61000 | ||||
| 94151-80840 | ||||
| 94185-61000 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(1107- )T2,T3,T4,T5..CBU
ﾚﾝﾀｶｰｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65500-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37F01 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G01 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G21 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37F02 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37G02 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37G22 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37N10 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37M60 |
XZC60#,675,XZU60#,675..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 65600-37N20 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37070 |
BZU600,TRC600,TRU600,XZC60#,645,675,XZU60#,64#,675,685..SCB..(T2,T3,T4,T5)..CBU |
5 | ||
| 65010-37071 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZC60#,645,675,XZU60#,645,675,685..SCB..(T2,T3,T4,T5)..WT..CBU |
5 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-37030 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| C5366-95700 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZU655..SCB..T4..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
XZU640..DCRTK..CBU;XZC600..5F..ST..CBU;XZU650..(20T,35T)..CBU;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,675,XZU60#,645,655,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| C5365-95700 |
XZU605..T5..5F..20T..DCRTJ..CBU;XZU655..SCB..T4..5F..20T..DCRTJ..CBU;XZC60#,XZU60#..SCB..T4..(DCRTH,DCRTJ)..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| Common parts | ||||
| 65630-25010 | ||||
| 90109-08074 | ||||
| 90149-08001 | ||||
| 90179-08245 | ||||
| 90467-08008 | ||||
| 91632-61060 | ||||
| 94185-61000 | ||||
| 94188-00801 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
