Toyota Dyna/toyoace XZU605 FUEL TANK & TUBE

XZU605-TPFMX (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1905- )XZC60#,630,645,655,XZU600,605,630,642,645,65#..SCB..DCRWD..CBU,IV3,IV7

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ(ﾐｷﾞｶﾞﾜ)

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37070	XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6)	05/2019 - 12/2999	1
77017-37070	XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6)	05/2019 - 12/2999	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77023-36010	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77026-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77100 - TANK ASSY, FUEL
77100-37A20	XZC600,630..DCRWD..IV3;XZC605,645,XZU600,605,640,645..SCB..(T3,T4,T5)..DCRWD..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−70L	05/2019 - 12/2999	1
77100-37A20	XZC600,630..DCRWD..IV3;XZC605,645,XZU600,605,640,645..SCB..(T3,T4,T5)..DCRWD..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−70L	05/2019 - 12/2999	1
77100-37A30	XZC675,XZU675..T4..DCRWD;XZC60#,630,XZU600,605,630..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77100-37A30	XZC675,XZU675..T4..DCRWD;XZC60#,630,XZU600,605,630..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
90105-12116	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
90430-12245	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT
77154-25010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77154-25010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77169-14020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77169B - GASKET, FUEL SUCTION TUBE SET, NO.1
77169-14020	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77169-14020	XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77178-44010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37030	XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77244-37030	XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77249 - HOSE, FUEL EMISSION
77249-37510	XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	1
77249-37510	XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77380-26010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37531	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77501-37531	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37531	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77501-37531	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77502D - BRACKET SUB-ASSY, FUEL TANK, REAR
77501-37521	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77501-37521	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77502D - BRACKET SUB-ASSY, FUEL TANK, REAR
77501-37521	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77501-37521	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
77601-37121	XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3)	05/2019 - 12/2999	2
Common parts
91672-C1035
93319-A4010
94130-00802
94151-81000
96133-41001
Linked diagrams
6765
8401

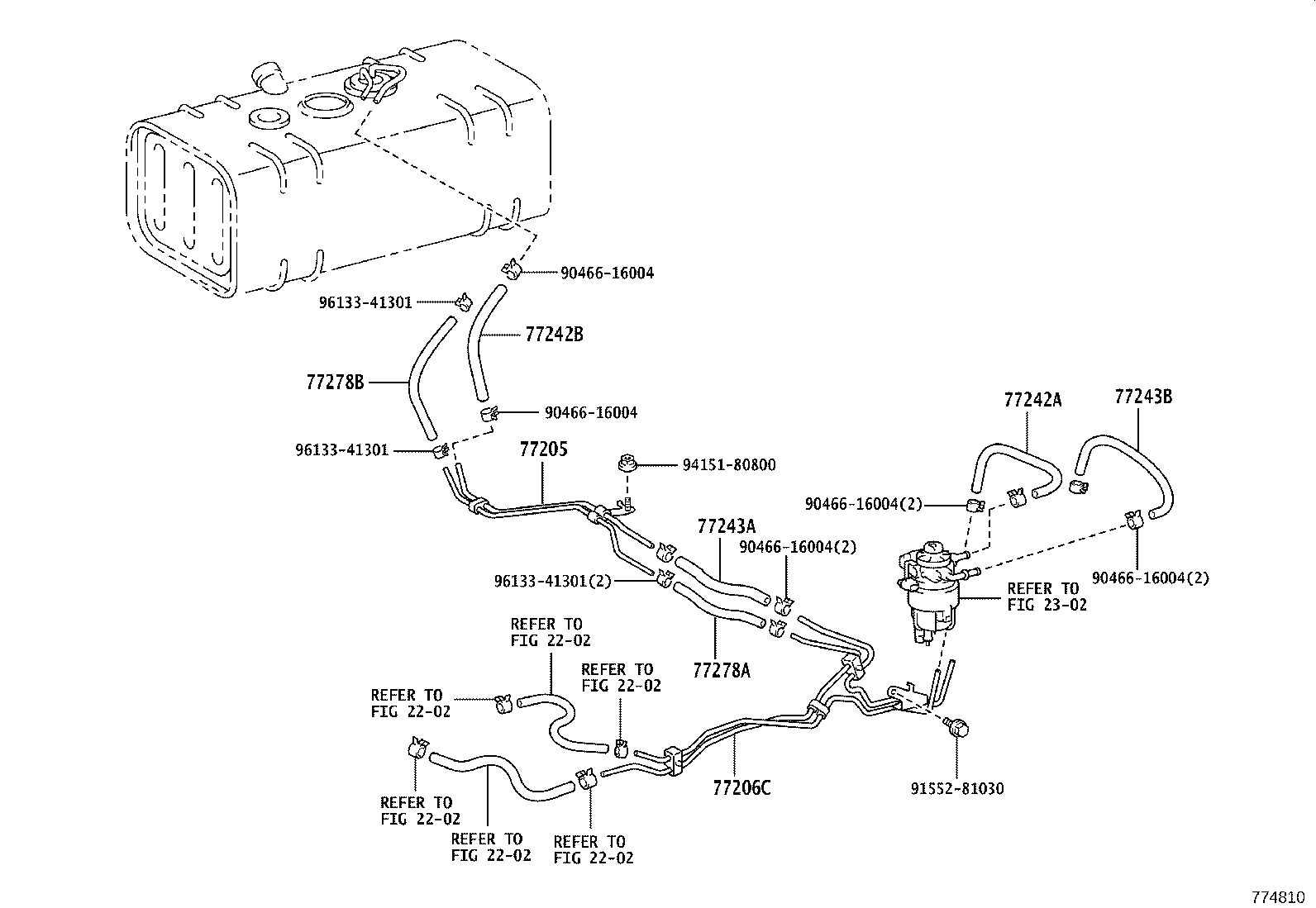

ILLUST NO. 2 OF 2(1905- )XZC60#,645,655,XZU60#,640,645,655..SCB..DCRWD,DCVTO..CBU,IV3,IV6

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37K50	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
77205-37K50	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
77205-37K50	XZU605..30T..DCRWD..CBU;XZU605..T5..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−80L(左側)	05/2019 - 12/2999	1
77205-37K50	XZU605..30T..DCRWD..CBU;XZU605..T5..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−80L(左側)	05/2019 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37N61	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV6)	05/2019 - 10/2019	1
77206-37N61	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV6)	05/2019 - 10/2019	1
77206-37N62	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3)	11/2019 - 12/2999	1
77206-37N62	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3)	11/2019 - 12/2999	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77259-37A70	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77259-37A70	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7)	05/2019 - 12/2999	1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
SM331-10030	XZU685..DCRWD..IV4;XZU640,655,695..DCB..DCRWD;XZU605..SCB..DCRWD..(CBU,IV3);XZC60#,XZU600,642..DCRWD..(CBU,IV3,IV4,IV7) 長さ=220	05/2019 - 12/2999	1
SM331-10030	XZU685..DCRWD..IV4;XZU640,655,695..DCB..DCRWD;XZU605..SCB..DCRWD..(CBU,IV3);XZC60#,XZU600,642..DCRWD..(CBU,IV3,IV4,IV7) 長さ=220	05/2019 - 12/2999	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
SM331-10030	XZU650..DCVTO..IV3;XZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) 長さ=160	05/2019 - 12/2999	1
SM331-10030	XZU650..DCVTO..IV3;XZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) 長さ=160	05/2019 - 12/2999	1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
SM331-10030	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) 長さ=280	05/2019 - 12/2999	1
SM331-10030	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) 長さ=280	05/2019 - 12/2999	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95337-08020	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU60#,630,645,655..SCB..(DCRWD,DCVTO) 長さ=160	05/2019 - 12/2999	1
95337-08020	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU60#,630,645,655..SCB..(DCRWD,DCVTO) 長さ=160	05/2019 - 12/2999	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95337-08024	XZC60#,XZU600,605,642..SCB..DCRWD..(CBU,IV3,IV7) 長さ=240	05/2019 - 12/2999	1
95337-08024	XZC60#,XZU600,605,642..SCB..DCRWD..(CBU,IV3,IV7) 長さ=240	05/2019 - 12/2999	1
Common parts
90466-16004
91552-81030
94151-80800
96133-41301
Linked diagrams
2202
2302

ILLUST NO. 2 OF 2(1905- )XZU605,655..SCB..T3,T4..20T..DCRWD..CBU ; (1905- )XZC675,XZU642,652,6

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37N61	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV6)	05/2019 - 10/2019	1
77206-37N61	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV6)	05/2019 - 10/2019	1
77206-37N61	XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV6)	05/2019 - 10/2019	1
77206-37N62	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3)	11/2019 - 12/2999	1
77206-37N62	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3)	11/2019 - 12/2999	1
77206-37N62	XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3)	11/2019 - 12/2999	1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
SM331-10030	XZU685..DCRWD..IV4;XZU640,655,695..DCB..DCRWD;XZU605..SCB..DCRWD..(CBU,IV3);XZC60#,XZU600,642..DCRWD..(CBU,IV3,IV4,IV7) 長さ=220	05/2019 - 12/2999	1
SM331-10030	XZU685..DCRWD..IV4;XZU640,655,695..DCB..DCRWD;XZU605..SCB..DCRWD..(CBU,IV3);XZC60#,XZU600,642..DCRWD..(CBU,IV3,IV4,IV7) 長さ=220	05/2019 - 12/2999	1
SM331-10030	XZU685..DCRWD..IV4;XZU640,655,695..DCB..DCRWD;XZU605..SCB..DCRWD..(CBU,IV3);XZC60#,XZU600,642..DCRWD..(CBU,IV3,IV4,IV7) 長さ=220	05/2019 - 12/2999	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95337-08024	XZC60#,XZU600,605,642..SCB..DCRWD..(CBU,IV3,IV7) 長さ=240	05/2019 - 12/2999	1
95337-08024	XZC60#,XZU600,605,642..SCB..DCRWD..(CBU,IV3,IV7) 長さ=240	05/2019 - 12/2999	1
95337-08024	XZC60#,XZU600,605,642..SCB..DCRWD..(CBU,IV3,IV7) 長さ=240	05/2019 - 12/2999	1
Common parts
90466-16004
91551-80825
91552-81030
94151-80800
94151-81000
96133-41301
Linked diagrams
2202
2302

XZU605-TPFMX (2019)

ILLUST NO. 1 OF 2(1905- )XZC60#,630,645,655,XZU600,605,630,642,645,65#..SCB..DCRWD..CBU,IV3,IV7

ILLUST NO. 2 OF 2(1905- )XZC60#,645,655,XZU60#,640,645,655..SCB..DCRWD,DCVTO..CBU,IV3,IV6

ILLUST NO. 2 OF 2(1905- )XZU605,655..SCB..T3,T4..20T..DCRWD..CBU ; (1905- )XZC675,XZU642,652,6
