Toyota Dyna/toyoace XZU605 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU605-PQMMB3 (2011)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

XZU605-PQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

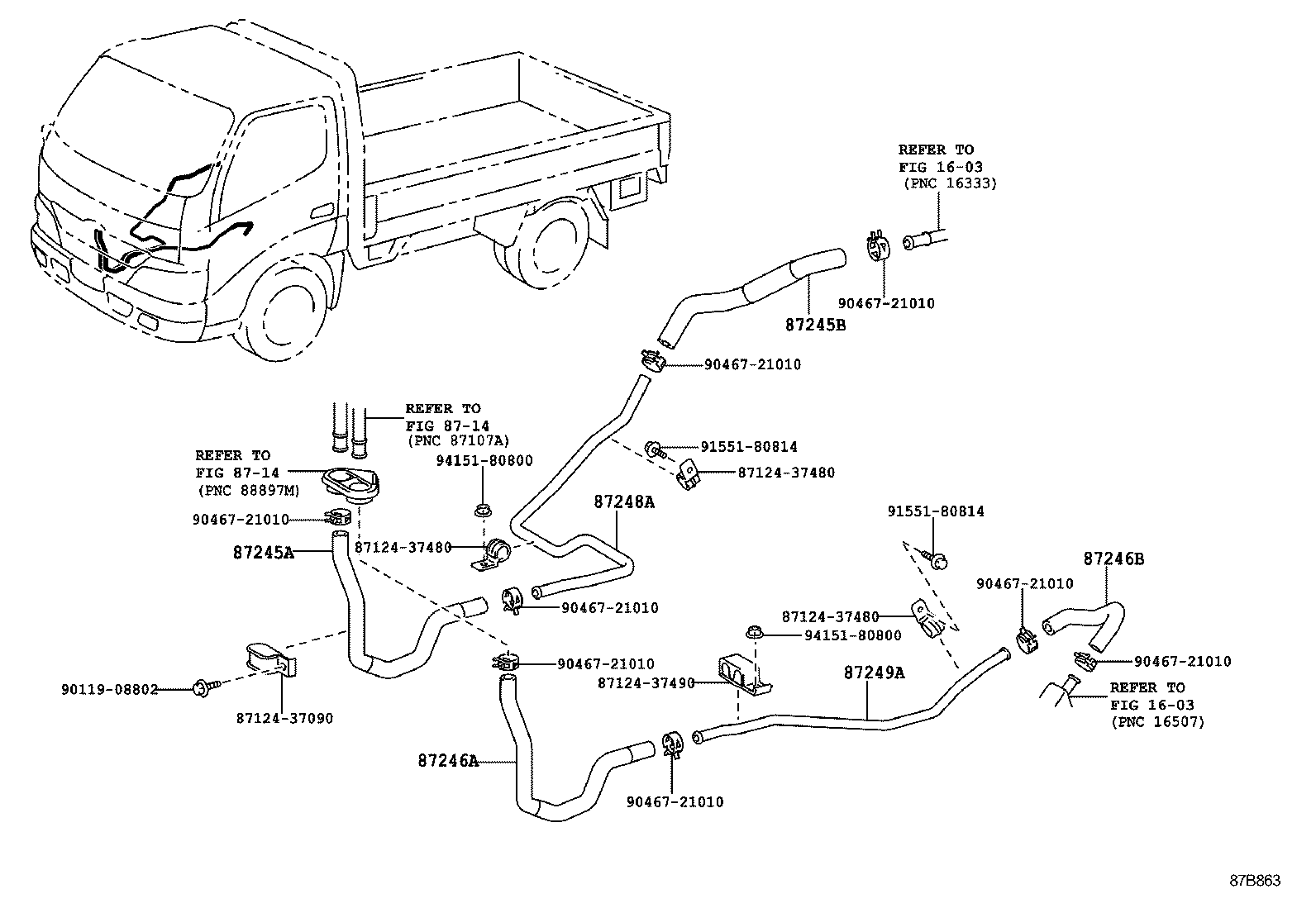

(1107- )XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCR

Click highlighted areas on diagram

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245-37A00	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87245B - HOSE, HEATER WATER, INLET B
87245-37C81	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37C81	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87245-37C81	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245-37C81	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37640	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87246-37640	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87246-37640	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87246-37640	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87248A - PIPE, HEATER WATER INLET, A
87248-37C90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87248-37C60	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87248-37C90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87248-37C90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37C30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87248-37C20	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87248-37C30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87248-37C30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
Common parts
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91551-80814
94151-80800
Linked diagrams
1603
8714

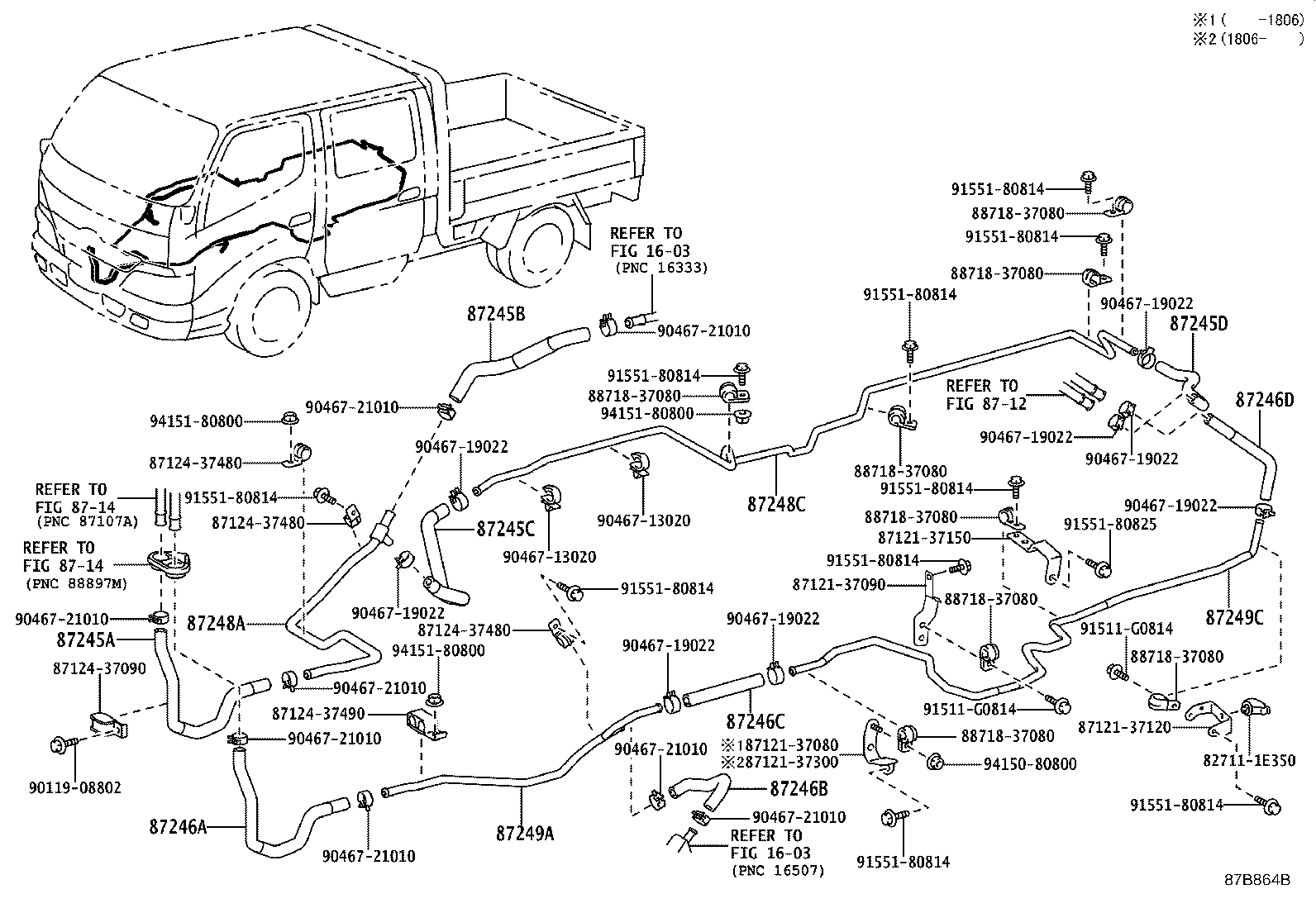

(1107- )XZU605..DCB..DCRTH,DCRTJ

Click highlighted areas on diagram

ｱﾘ(ﾘﾔﾋｰﾀ)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245-37A00	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87245B - HOSE, HEATER WATER, INLET B
87245-37C81	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37C81	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87245-37C81	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245-37C81	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87245C - HOSE, HEATER WATER ,INLET C
87245-37D90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87245-37D90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37D90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245D - HOSE, HEATER WATER, INLET D
87245-37B50	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245-37B50	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37B50	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37640	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87246-37640	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87246-37640	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87246-37640	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20200	XZU605,655..DCB *H,L=160,ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
99556-20200	XZU605,655..DCB H,L=160,ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + *RECn	07/2011 - 05/2017	1
99556-20200	XZU605,655..DCB H,L=160,ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF@+ RECO	07/2011 - 05/2017	1
87246D - HOSE, HEATER WATER, OUTLET D
87246-37590	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87246-37590	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87246-37590	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87248A - PIPE, HEATER WATER INLET, A
87248-37C90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87248-37C60	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87248-37C90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87248-37C90	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87248C - PIPE, HEATER WATER INLET, C
87248-37880	XZU605..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87248-37880	XZU605..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87248-37880	XZU605..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37C30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87248-37C20	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
87248-37C30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
87248-37C30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-37680	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2017	1
87248-37680	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + RECO	07/2011 - 05/2017	1
87248-37680	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF + *RECO	07/2011 - 05/2017	1
Common parts
82711-1E350
87121-37080
87121-37090
87121-37120
87121-37150
87121-37300
87124-37090
87124-37480
87124-37490
88718-37080
90119-08802
90467-13020
90467-19022
90467-21010
91511-G0814
91551-80814
91551-80825
94150-80800
94151-80800
Linked diagrams
1603
8712
8714

ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
83712-95A00
83712-96A00
87291-95400
87291-95401
90460-24039
90461-08029
90461-08157
90461-08287
90461-10240
90461-10241
90461-10279
90468-20002
91611-40812
91611-40816
91611-40820
91611-40825
94110-40800
96112-10250
