XZU605-PQMMB3 (2011)
Toyota Dyna/Toyoace
(0610- )DCB,VAN
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11038 | ||||
| 90109-11027 | ||||
| 90109-11048 | ||||
| 90468-05017 | ||||
| 91512-B1020 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(0610- )DCB,VAN
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11038 | ||||
| 90109-11028 | ||||
ILLUST NO. 1 OF 2(1107- )DCB
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35020B2 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1#,NO.2 |
1 | ||
| 73135-35010B2 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1#,NO.1 |
1 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35020B2 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1#,NO.2 |
1 | ||
| 73135-35010B2 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1#,NO.1 |
1 | ||
| 73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER | ||||
| 73150-37130B0 |
TRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN GRAY,TRIM1# |
1 | ||
| 73150-37050B3 |
XZC605,XZU60#,640,655,685,695..(DCB,VAN)..(03S,T3,T4) GRAY,TRIM1# |
1 | ||
| 73150-37050B3 |
TRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020P2 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-34030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-37290B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB GRAY,TRIM1# |
1 | ||
| 73210-37400B0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73210-37401B0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73210-37291B1 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
XZU60#,640,655,685,695..DCB ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37300B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37310B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37410B0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73210-37411B0 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-37020 |
XZU60#,640,655,685,695..DCB |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-37010 |
XZU60#,640,655,685,695..DCB |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-37230B1 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-37330B0 |
TRC600,XZU60#,640,655,685,695..DCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73230-37340B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73230-37360B0 |
TRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN GRAY,TRIM1# |
1 | ||
| 73230-37350B0 |
TRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73230-37361B0 |
XZC605,XZU60#,640,655,685,695..(DCB,VAN)..(03S,T3,T4) GRAY,TRIM1# |
1 | ||
| 73230-37330B0 |
XZC605,XZU60#,640,655,685,695..(DCB,VAN)..(03S,T3,T4) SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73252A - COVER, SHOULDER BELT ANCHOR ADJUST | ||||
| 73252-37021B1 |
XZC605,XZU60#,640,655,685,695..(DCB,VAN)..(03S,T3,T4) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11036 | ||||
| 90105-11041 | ||||
| 90109-11027 | ||||
| 90109-11048 | ||||
| 90179-11010 | ||||
| 90468-05017 | ||||
| 91512-B1020 | ||||
| 91551-80614 | ||||

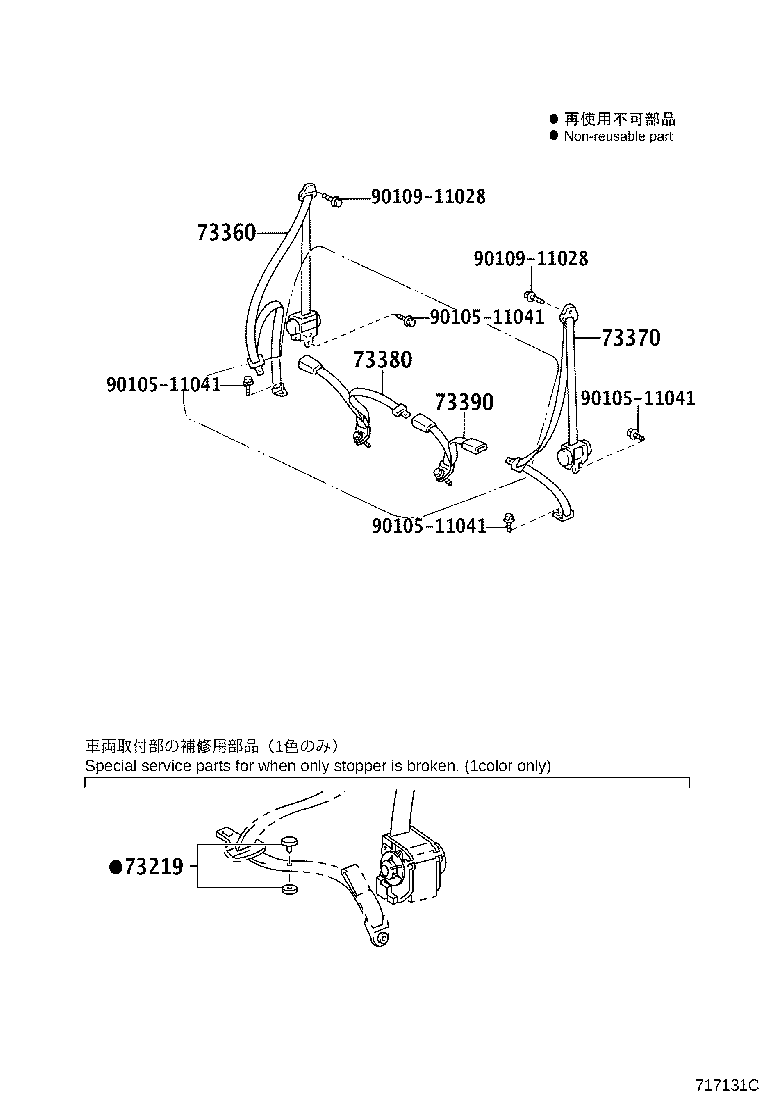

ILLUST NO. 2 OF 2(1107- )DCB
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
XZU60#,640,655,685,695..DCB ﾌﾞﾗｯｸ |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-37060B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73360-37080B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73360-37060B0 |
XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-37060B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73360-37080B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73360-37060B0 |
XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-37050B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73380-37050B0 |
XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73380-37070B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-37011B3 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73390-37040B0 |
TRC600,XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 73390-37011B3 |
XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11041 | ||||
| 90109-11028 | ||||
