XZU605-PQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )DCB,SCB

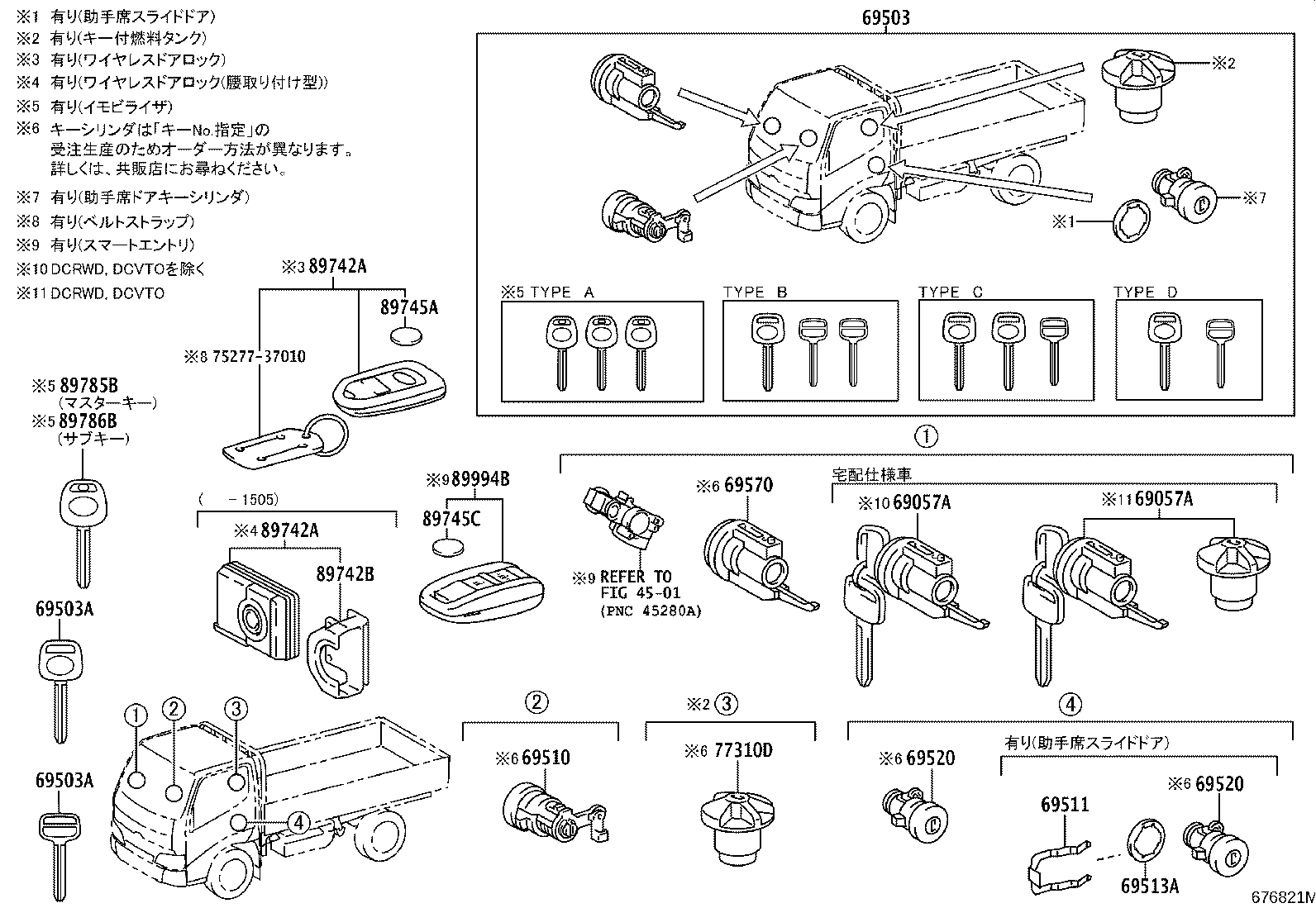

Click highlighted areas on diagram

DUTRO

diagram 69051 69052 69052 69057A 69058D 69503 69503A 69503A 69511 69513A 89785B 89786B
Part # Description Qty Price

(0610- )DCB,SCB

Click highlighted areas on diagram

DYNA OR TOYOACE

diagram 69057A 69503 69503A 69503A 69510 69511 69513A 69520 69570 77310D 89785B 89786B
Part # Description Qty Price

(1107- )DCB,SCB

Click highlighted areas on diagram

DUTRO

diagram 69051 69052 69052 69057A 69057A 69058D 69503 69503A 69503A 69511 69513A 7527737010 89742A 89742A 89742B 89745A 89745C 89785B 89786B 89994B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-37080

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-37120

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-37120

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-37220

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-37220

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69058D - CYLINDER & KEY SET, FUEL TANK FILLER
69058-37080

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(DCB,SCB)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69503 - CYLINDER SET, LOCK
69005-37841

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(DCB,SCB)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照

 1
69005-37801

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(DCB,SCB)..(20T,30T)..WT

TYPE A:ｲﾗｽﾄ参照

 1
69005-37842

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB

ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照

 1
69005-37G00

XZU605,655,685,695..DCB..20T

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),TYPE A:ｲﾗｽﾄ参照

 1
69005-37G40

XZU605,655,685,695..DCB..20T

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),TYPE A:ｲ宴Xﾄ参照

 1
69005-37802

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB

TYPE A:ｲﾗｽﾄ参照

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-37080

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89742-37090

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-37080

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89742-37090

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-37020

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
89785-60160

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-37040

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾌﾞﾗﾝｸｷｰ

 1
89786-37021

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用

 1
Common parts
75277-37010

(1107- )DCB,SCB

Click highlighted areas on diagram

DYNA,TOYOACE

diagram 4501 69057A 69057A 69503 69503A 69503A 69510 69511 69513A 69520 69520 69570 7527737010 77310D 89742A 89742A 89742B 89745A 89745C 89785B 89786B 89994B
Part # Description Qty Price
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-37220

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-37220

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
69503 - CYLINDER SET, LOCK
69005-37841

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(DCB,SCB)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照

 1
69005-37801

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(DCB,SCB)..(20T,30T)..WT

TYPE A:ｲﾗｽﾄ参照

 1
69005-37842

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB

ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照

 1
69005-37G00

XZU605,655,685,695..DCB..20T

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),TYPE A:ｲﾗｽﾄ参照

 1
69005-37G40

XZU605,655,685,695..DCB..20T

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),TYPE A:ｲ宴Xﾄ参照

 1
69005-37802

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB

TYPE A:ｲﾗｽﾄ参照

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-37020

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-37040

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-37040

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-37070

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
77310D - CAP ASSY, FUEL TANK
77310-37020

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-37080

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89742-37090

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-37080

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89742-37090

XZC605,XZU605,655,685,695..(DCB,VAN)..(03S,T3,T4)..20T

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-37020

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾃﾞｭﾄﾛ専用

 1
89785-60160

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-37040

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾌﾞﾗﾝｸｷｰ

 1
89786-37021

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用

 1
Common parts
75277-37010
Linked diagrams
4501
