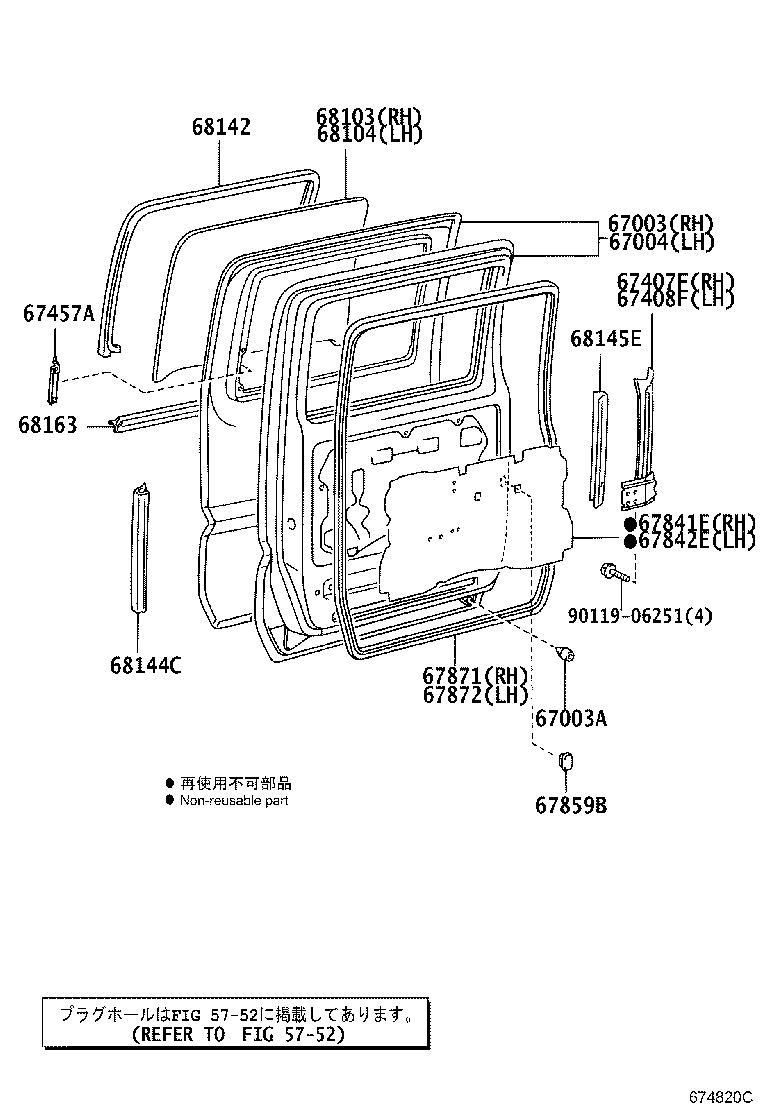

Toyota Dyna/toyoace XZU605 REAR DOOR PANEL & GLASS

Part #	Description	Period	Qty
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-37040	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
67003A - PLUG, HOLE(FOR REAR DOOR PANEL)
90541-09031	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-37060	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67407-37010	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-37010	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
67457A - BRACKET, REAR DOOR REAR GUIDE, UPPER
67457-37010	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	4
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-37040	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-37020	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
67859B - COVER, REAR DOOR LOWER HOLE
67859-37010	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-37011	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67871-37011	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-37040	XZU60#,640,655,685,695..DCB *TT,厚さ=3.5,ｸﾞﾘｰﾝ	07/2011 - 05/2017	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68113-37040	XZU60#,640,655,685,695..DCB *TT,厚さ=3.5,ｸﾞﾘｰﾝ	07/2011 - 05/2017	1
68142 - RUN, REAR DOOR GLASS
68142-37012	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
68144C - RUN, REAR DOOR GLASS, LOWER FRONT
68144-37011	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
68145E - RUN, REAR DOOR GLASS, LOWER REAR
68145-37011	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163-37011	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
Common parts
90119-06251
90333-35004
90950-01759
Linked diagrams
6757

Part #	Description	Period	Qty

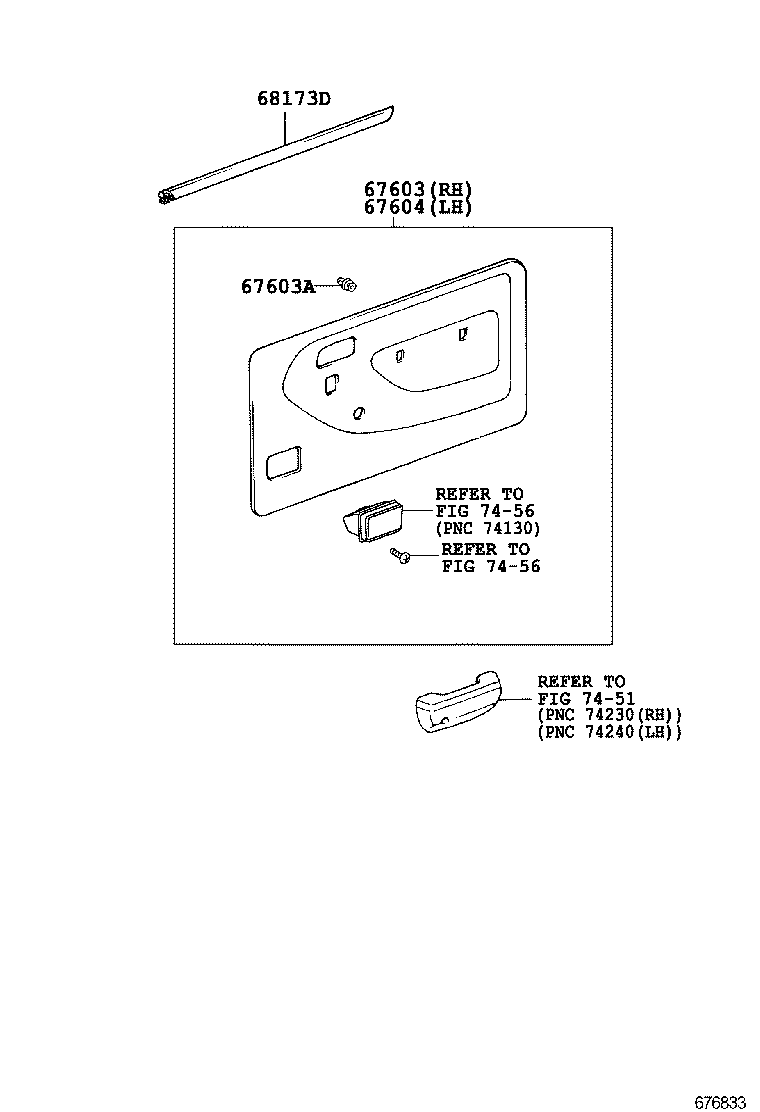

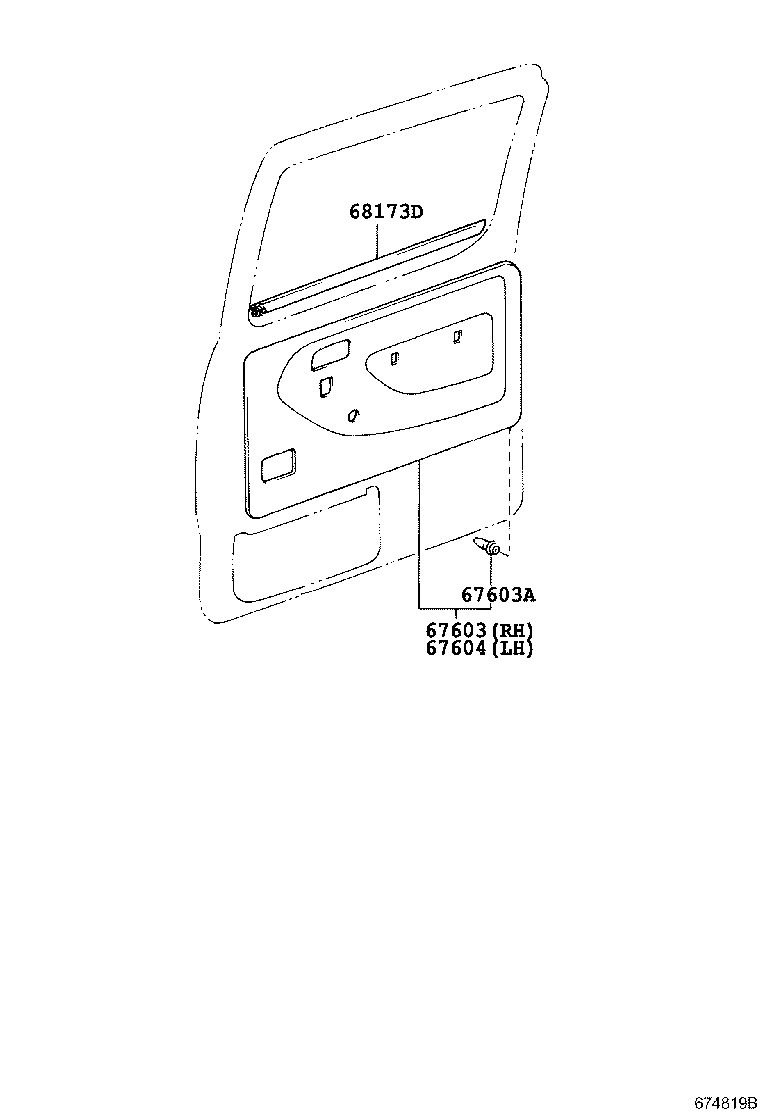

67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-37111B1	XZU60#,640,655,685,695..DCB ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ),GRAY,TRIM1#	07/2011 - 05/2017	1
67630-37131B1	XZU60#,640,655,685,695..DCB GRAY,TRIM1#	07/2011 - 05/2017	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-16080	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	20
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-37101B1	XZU60#,640,655,685,695..DCB GRAY,TRIM1#	07/2011 - 05/2017	1
67640-37081B1	XZU60#,640,655,685,695..DCB ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ),GRAY,TRIM1#	07/2011 - 05/2017	1
68173D - WEATHERSTRIP, REAR DOOR GLASS, CHANNEL
68173-37011	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
Linked diagrams
7451
7456

XZU605-PQMMB3 (2011)

ILLUST NO. 2 OF 2(0610- )DCB

ILLUST NO. 1 OF 2(0610- )DCB

ILLUST NO. 1 OF 2(1107- )DCB

ILLUST NO. 2 OF 2(1107- )DCB
