XZU605-PQMMB3 (2011)
Toyota Dyna/Toyoace
(1107- )XZC605,XZU605..DCB,SCB..5F..DCRTJ,DCRTK..CBU,IV3 ; (1107- )XZC600,645
ﾃﾞﾝｷｼｷ 25KG

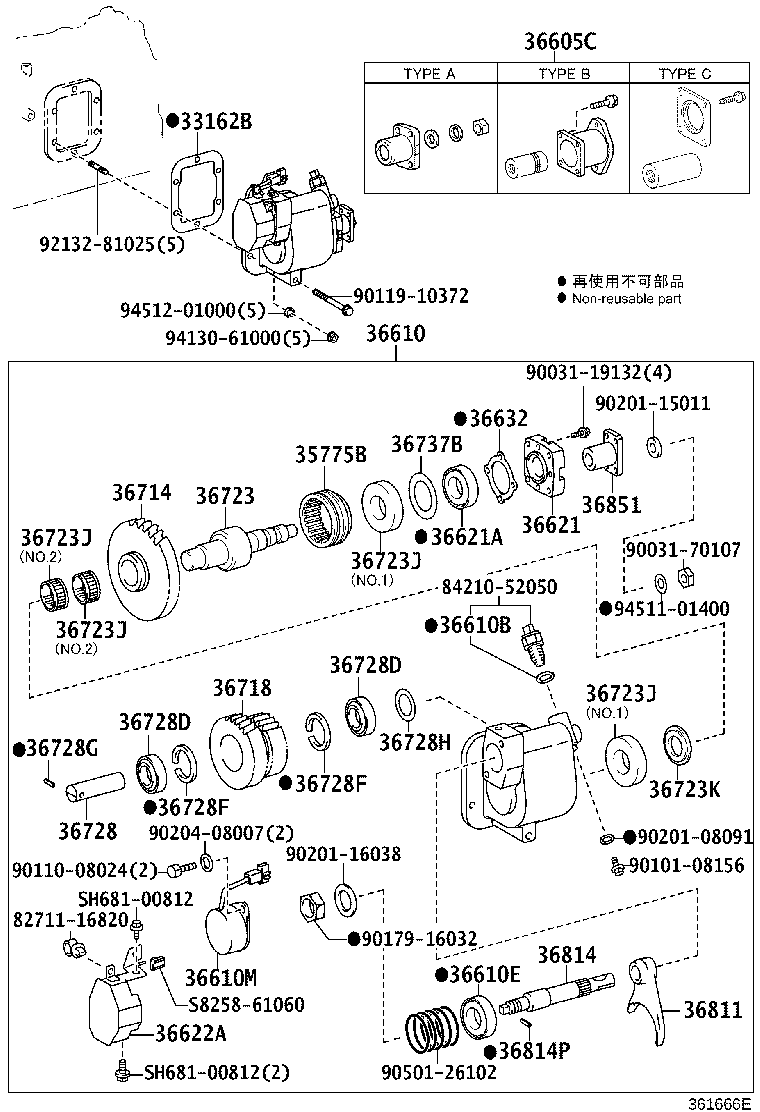

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 33162-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 35775-37030 |
XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,64#,65#..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37410 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610-37410 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36610-37411 |
XZU650..T3..5F..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36610-37411 |
XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,64#,65#..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-18008 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90430-18008 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90311-20010 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610M - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 36800-37010 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36800-37010 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37071 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36621-37071 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90311-25110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36622A - COVER, POWER TAKE-OFF | ||||
| 36622-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36622-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36632 - GASKET, POWER TAKE-OFF JOINT RETAINER | ||||
| 36632-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36632-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37171 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36714-37171 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36718-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36723-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90389-25007 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90389-25007 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36728-37020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90366-25011 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90366-25011 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90521-56108 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90521-56108 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90254-04002 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25002 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25002 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25003 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25003 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25004 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25004 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-42001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-42003 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-42001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-42002 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-42003 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-42004 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-42004 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36811-93104 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37080 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36814-37080 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-05017 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90254-05022 |
XZU650..T3..5F..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90254-05022 |
XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,64#,65#..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90254-05017 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36851-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 84210-52050 | ||||
| 90031-19132 | ||||
| 90031-70107 | ||||
| 90101-08156 | ||||
| 90110-08024 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90501-26102 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| S8258-61060 | ||||
| SH681-00812 | ||||
(1107- )XZU605,655..DCB..5F..DCRTJ..IV3
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ 20KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 35775-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 35775-37030 |
XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,64#,65#..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 35775-37030 |
XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,64#,65#..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37030 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36605-37050 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37410 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610-37410 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610-37410 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36610-37410 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36610-37411 |
XZU650..T3..5F..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36610-37411 |
XZU650..T3..5F..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36610-37411 |
XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,64#,65#..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610-37411 |
XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,64#,65#..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90311-20010 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90311-20010 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90311-20010 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37071 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36621-37071 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36621-37071 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36621-37071 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90311-25110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90311-25110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90311-25110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36622A - COVER, POWER TAKE-OFF | ||||
| 36622-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36622-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36622-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36622-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36622A - COVER, POWER TAKE-OFF | ||||
| 36622-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36622-37040 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36622-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36622-37040 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37171 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36714-37171 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36714-37171 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36714-37171 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36718-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36718-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36718-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36718-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36718-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36718-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36723-37110 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36723-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36723-37110 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90364-28020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.2 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90366-22001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ,NO.1 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90364-28020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.2 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 90366-22001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG,NO.1 |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90389-25007 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90389-25007 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90389-25007 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90389-25007 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36728-37020 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 36728-37020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36728-37020 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90366-25011 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90366-25011 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 90366-25011 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90366-25011 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
2 | ||
| 90366-25011 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 90366-25011 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90254-04002 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90254-04002 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90254-04002 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25001 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25002 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25002 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25002 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25002 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25001 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25003 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25003 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25003 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25003 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25004 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25004 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG |
1 | ||
| 90564-25004 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| 90564-25004 |
XZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 25KG+ﾀﾞﾝﾌﾟﾚﾊﾞｰ |
1 | ||
| Common parts | ||||
| 90031-16079 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| SU002-00719 | ||||
| SU002-00731 | ||||
| SU002-00737 | ||||
| SU002-00786 | ||||
| SU002-00861 | ||||
| SU002-00863 | ||||
| SU002-00877 | ||||
| SU002-00883 | ||||
| SU002-00886 | ||||
| SU002-00910 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91111-40814 | ||||
| 91111-40820 | ||||
| 91611-61025 | ||||
| 94110-51000 | ||||
| 94145-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11200 | ||||
| 95381-03028 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10052 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-40816 | ||||
| 91111-40820 | ||||
| 94110-51000 | ||||
| 94125-41400 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
