XZU605-PQMMB3 (2011)
Toyota Dyna/Toyoace
(1107- )N04C..CBU,IV3,IV5,IV6,IV7
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

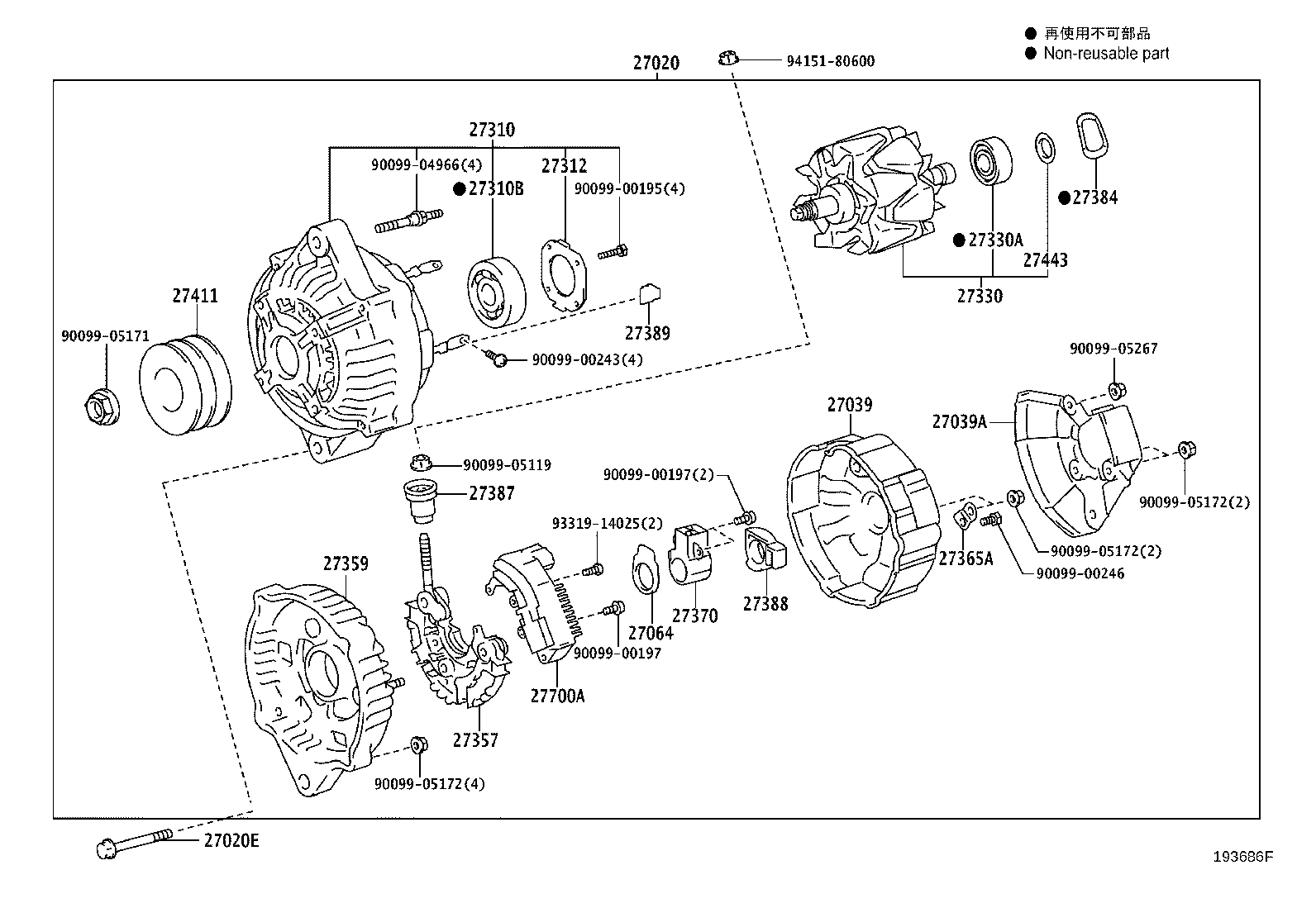

| 27020 - ALTERNATOR ASSY | ||||
| 27060-78210 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-20160 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-EV010 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10226 |
N04C..XZC60#..03S,T2,T4,T5;N04C..XZC610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 90099-10219 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27365A - PLATE, RECTIFIER | ||||
| 27365-55080 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| S2743-11800 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-78210 |
N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 93319-14025 | ||||
| 94151-80600 | ||||
