XZU605-PQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )N04C

Click highlighted areas on diagram

diagram 16100 16210 16371 9003105124 9003105156 9003116054 9003175001
Part # Description Qty Price
Common parts
90031-05124
90031-05156
90031-16054
90031-75001

(1107- )N04C..DCRTH,DCRTJ,DCRTK,DCRVT

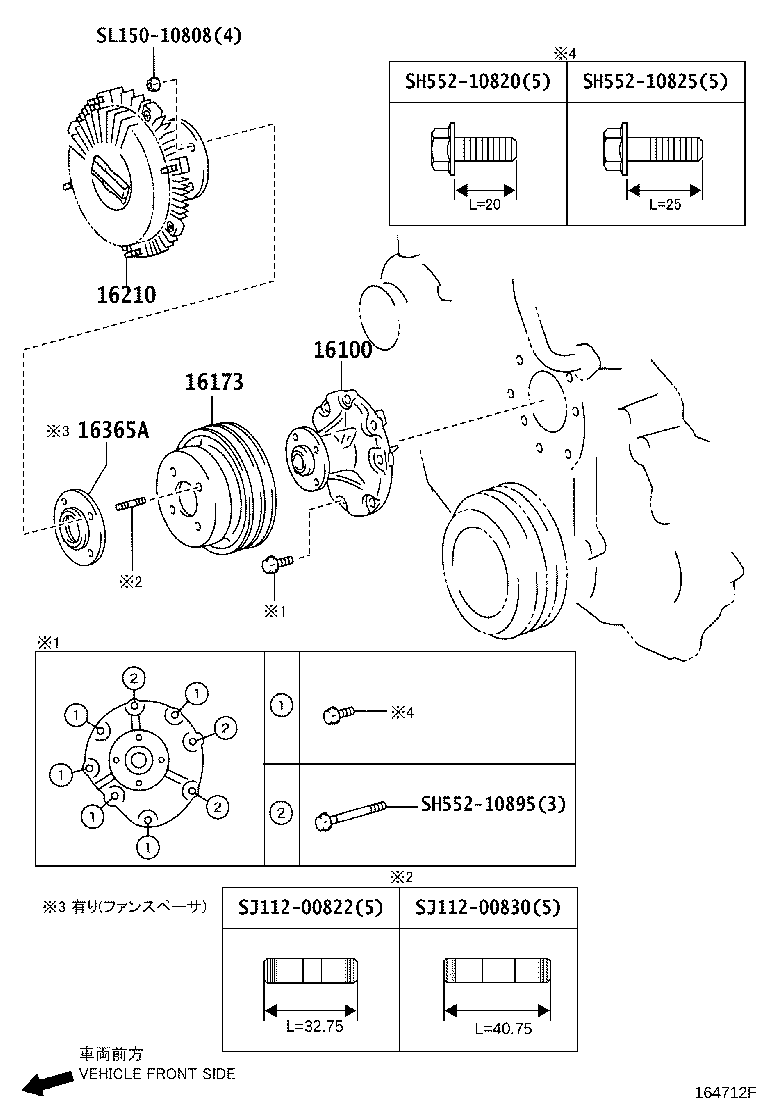

Click highlighted areas on diagram

diagram 16100 16173 16210 16365A SH55210820 SH55210825 SH55210895 SJ11200822 SJ11200830 SL15010808
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-E0B60

N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
16100-E0780

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
16173 - PULLEY, WATER PUMP
16107-E0020

N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
16210 - COUPLING ASSY, FLUID
16250-E0251

N04C..XZC600..5F..ST;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6)

 1
Common parts
SH552-10820
SH552-10825
SH552-10895
SJ112-00822
SJ112-00830
SL150-10808
