XZU605-PQMMA3 (2011)
Toyota Dyna/Toyoace

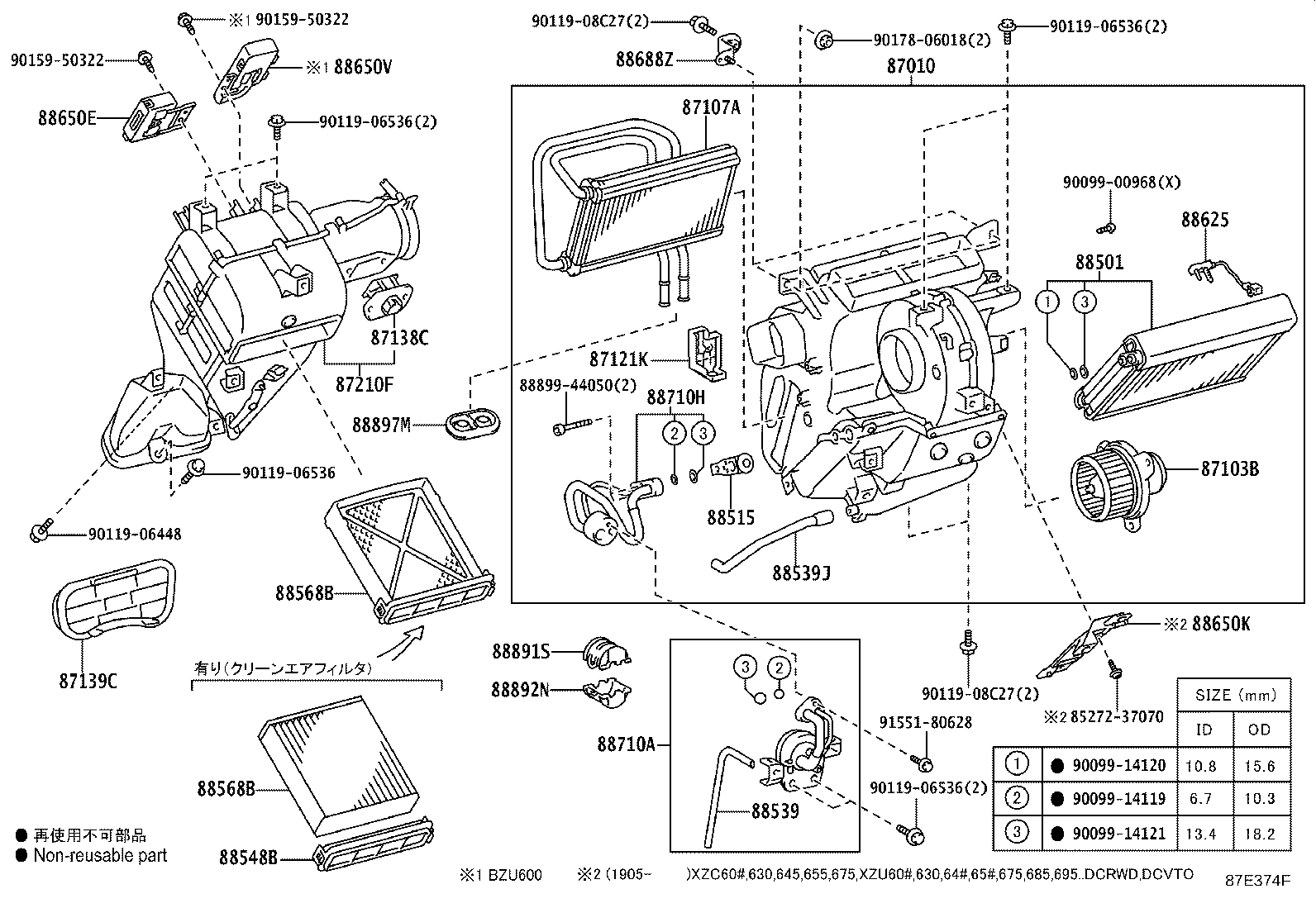

ILLUST NO. 1 OF 2(1107-1408)
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-37011 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87010-37010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87010-37220 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-37070 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87107-37110 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87107-37071 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37230 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87441-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87210-37090 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37110 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12130 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-37060 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-37080 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-37010 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88548-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF |
1 | ||
| 88568-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88568-37020 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF |
1 | ||
| 88568-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88568-37020 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-37300 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-37590 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 88710-37760 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-37690 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 88840-37250 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-37030 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87128-37081 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| Common parts | ||||
| 88899-44050 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06536 | ||||
| 90159-50322 | ||||
| 90178-06018 | ||||
| 90179-08057 | ||||
| 91551-80628 | ||||

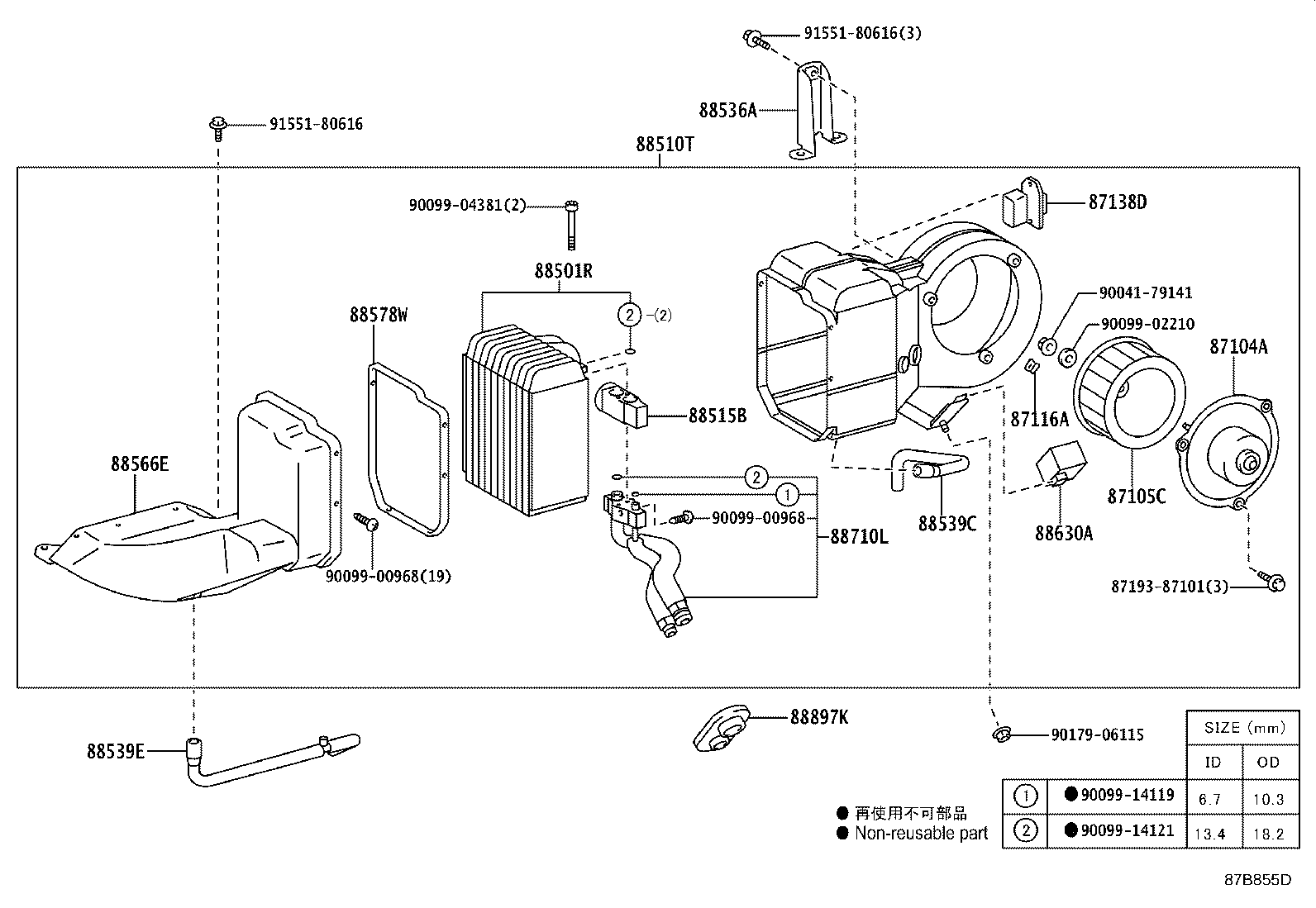

ILLUST NO. 2 OF 2(1107- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-37110 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 87104-37110 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-37020 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 87105-37020 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-97201 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 87116-97201 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-37140 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 87138-37140 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-60140 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88501-60140 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-37050 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88500-37050 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28120 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88515-28120 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-37020 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88536-37020 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-37030 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88539-37030 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-37040 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88539-37040 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88566E - DUCT, COOLER AIR, NO.2 | ||||
| 88566-37040 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88566-37040 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-44040 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88578-44040 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-37080 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88630-37080 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-37220 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 88710-37220 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-37070 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88897-37070 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90041-79141 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90179-06115 | ||||
| 91551-80616 | ||||
ILLUST NO. 1 OF 2(1408- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-37011 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87010-37010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87010-37220 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-37070 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87107-37110 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87107-37071 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37230 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87441-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87210-37090 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37110 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12130 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-37060 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-37080 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-37010 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88548-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF |
1 | ||
| 88568-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88568-37020 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF |
1 | ||
| 88568-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88568-37020 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-37300 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-37N90 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-37590 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 88710-37760 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-37690 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 88840-37250 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-37030 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87128-37081 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| Common parts | ||||
| 85272-37070 | ||||
| 88899-44050 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06448 | ||||
| 90119-06536 | ||||
| 90119-08C27 | ||||
| 90159-50322 | ||||
| 90178-06018 | ||||
| 91551-80628 | ||||
ILLUST NO. 1 OF 2(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-95401 | ||||
| 88718-95411 | ||||
| 88891-95400 | ||||
| 88894-22040 | ||||
| 88899-95405 | ||||
| 90099-00932 | ||||
| 90099-21012 | ||||
| 90099-32098 | ||||
| 90179-08123 | ||||
| 90480-26004 | ||||
| 93381-40816 | ||||
| 93385-18020 | ||||
| 93385-40820 | ||||
| 93540-50612 | ||||
| 93540-55010 | ||||
| 94110-40800 | ||||
ILLUST NO. 2 OF 2(7708- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
