XZU605-PQMMA3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(1107- )XZU605,685..DCB..DCRTH,DCRTJ
ﾌｭｰｴﾙﾀﾝｸ(1030X258X285)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37130 |
XZU605,685..DCB..20T |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95337-08020 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95337-08020 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T *H,L=160,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37610 |
XZU605,685..DCB..20T 1030X258X285 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZC605,XZU60#,640,685..(DCB,VAN)..(03S,T3,T4) |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
XZU605,685..DCB..20T *H,L=240 |
1 | ||
| Common parts | ||||
| 91626-40616 | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

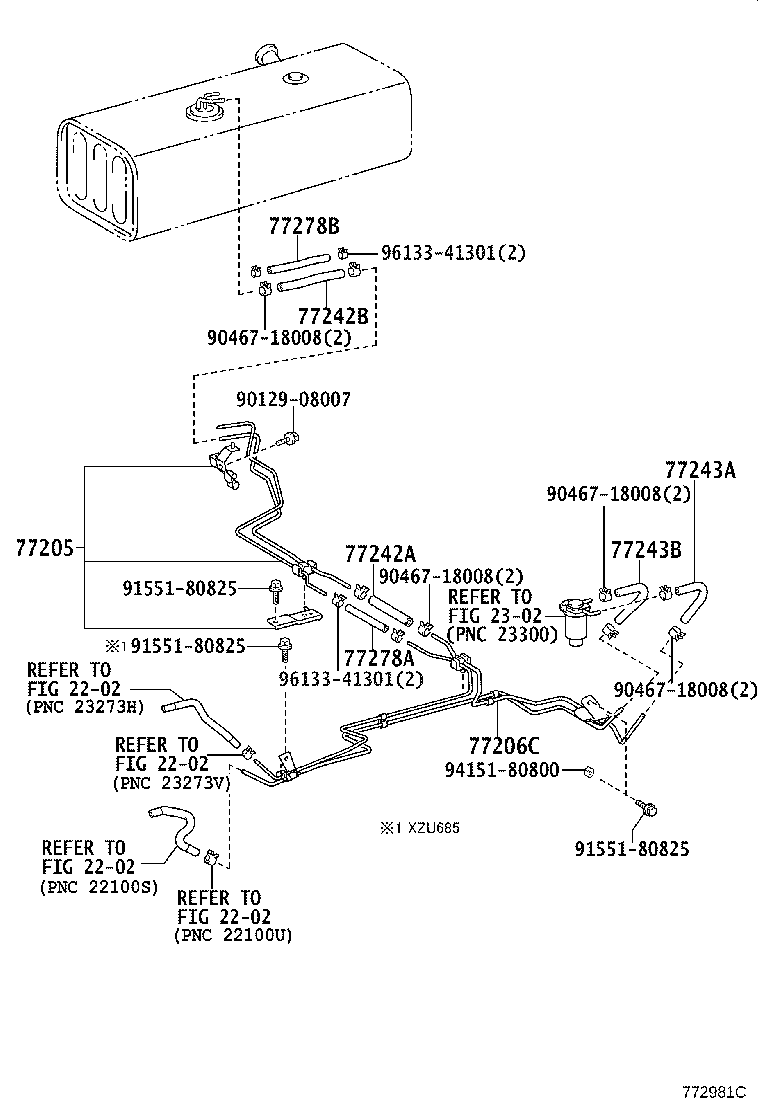

ILLUST NO. 3 OF 3(1107- )XZU605,685..DCB..DCRTH,DCRTJ
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37D00 |
XZU605..DCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37F80 |
XZU605,655..DCB |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12016 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT 長さ=160 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12024 |
XZU605..DCB;XZC600..5F..ST..CBU;XZU685..CBU,IV3,IV6;XZU640..DCRTK..(CBU,IV4);XZC605,XZU60#,645..(T3,T5)..(CBU,IV4) 長さ=240 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12030 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,645,655,XZU60#,645,655..(DCB,SCB)..WT..(CBU,IV3,IV7) 長さ=300 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12019 |
XZC600..5F..ST;XZU605,645,655..CBU,IV3;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT 長さ=190 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT 長さ=160 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
XZU605..DCB;XZU640..DCRTK..CBU;XZC630,XZU630,685..CBU,IV3,IV6;XZC600,XZU600..(T3,T5)..5F..CBU;XZC605,XZU605,645..(T3,T5)..CBU 長さ=260 |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 90467-18008 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

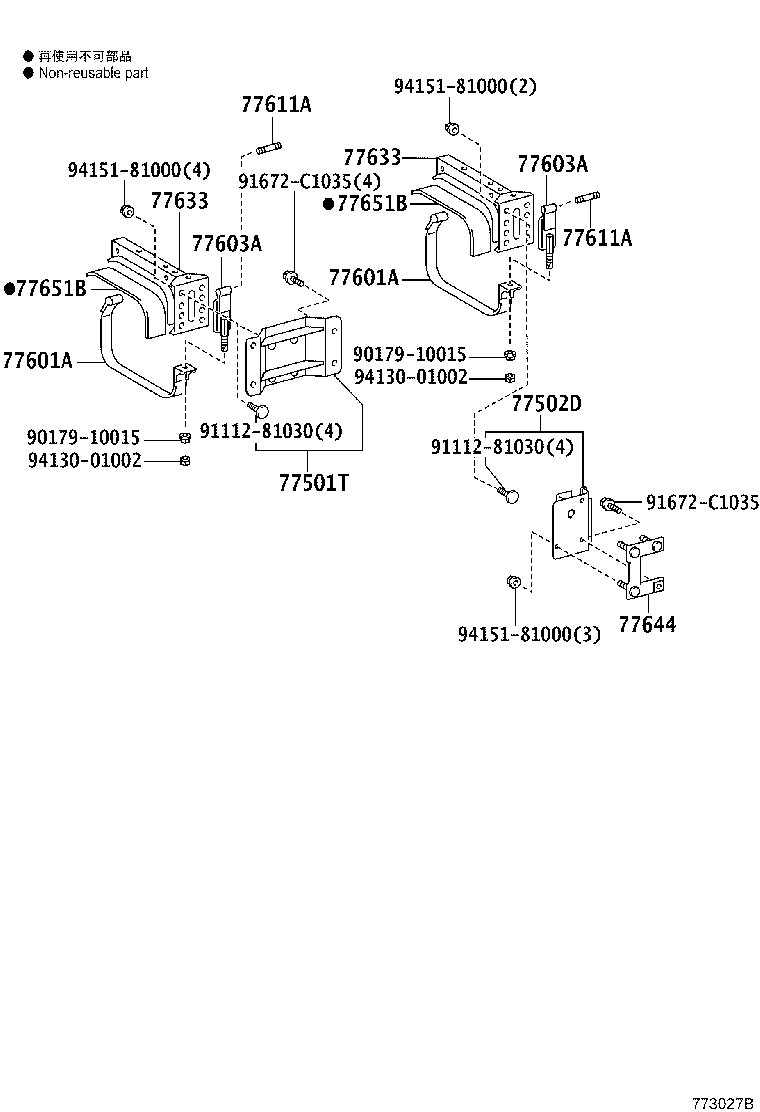

ILLUST NO. 2 OF 3(1107- )XZU605,685..DCB..DCRTH,DCRTJ
ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37290 |
XZU605,685..DCB..20T |
1 | ||
| 77501-37291 |
XZU605,685..DCB..20T |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77502-37100 |
XZU605,685..DCB..20T |
1 | ||
| 77502-37101 |
XZU605,685..DCB..20T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-37010 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-37010 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU605,685..DCB..20T |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU605,685..DCB..20T |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XZU605..DCB;XZU685..CBU,IV3,IV6;BZU600,XZU60#..MTM..(IV5,IV6);XZU600..6FC..(20T,30T)..(IV5,IV6) |
1 | ||
| 77644-37102 |
XZU605..DCB;XZU60#..IV5,IV6;XZU685..CBU,IV3,IV6 |
1 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-26040 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-26040 |
XZC605,XZU605,685..(DCB,VAN)..(03S,T3,T4)..20T |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91112-81030 | ||||
| 91672-C1035 | ||||
| 94130-01002 | ||||
| 94151-81000 | ||||
