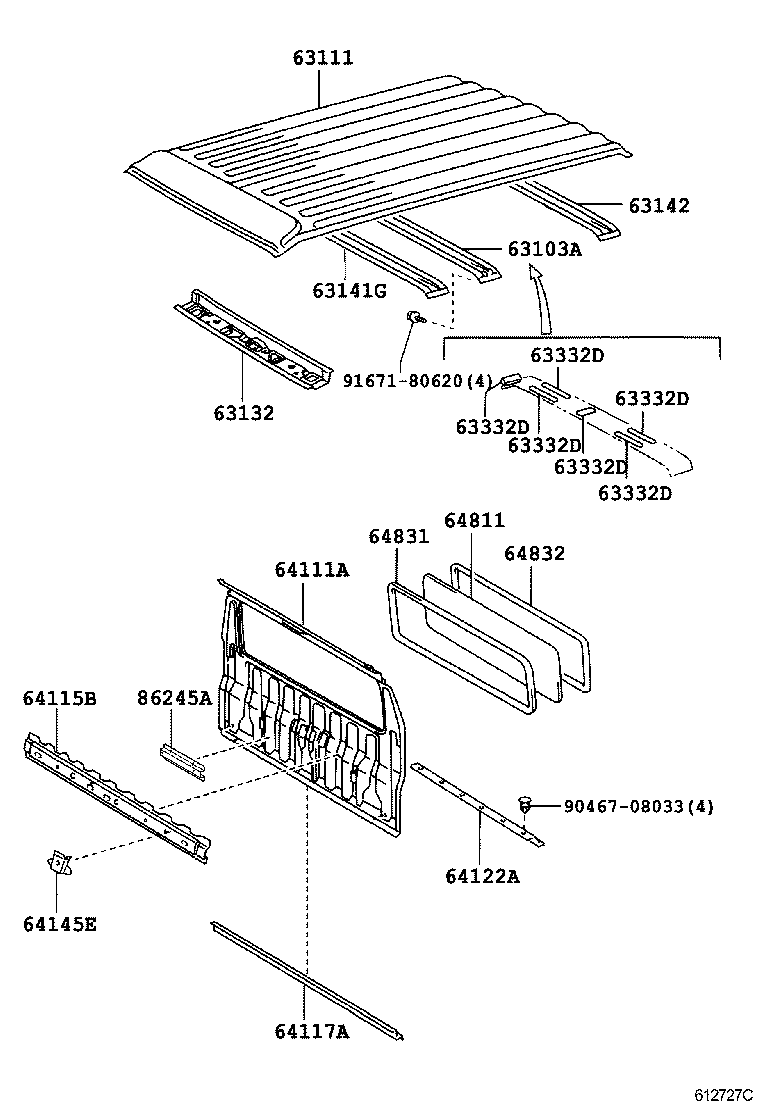

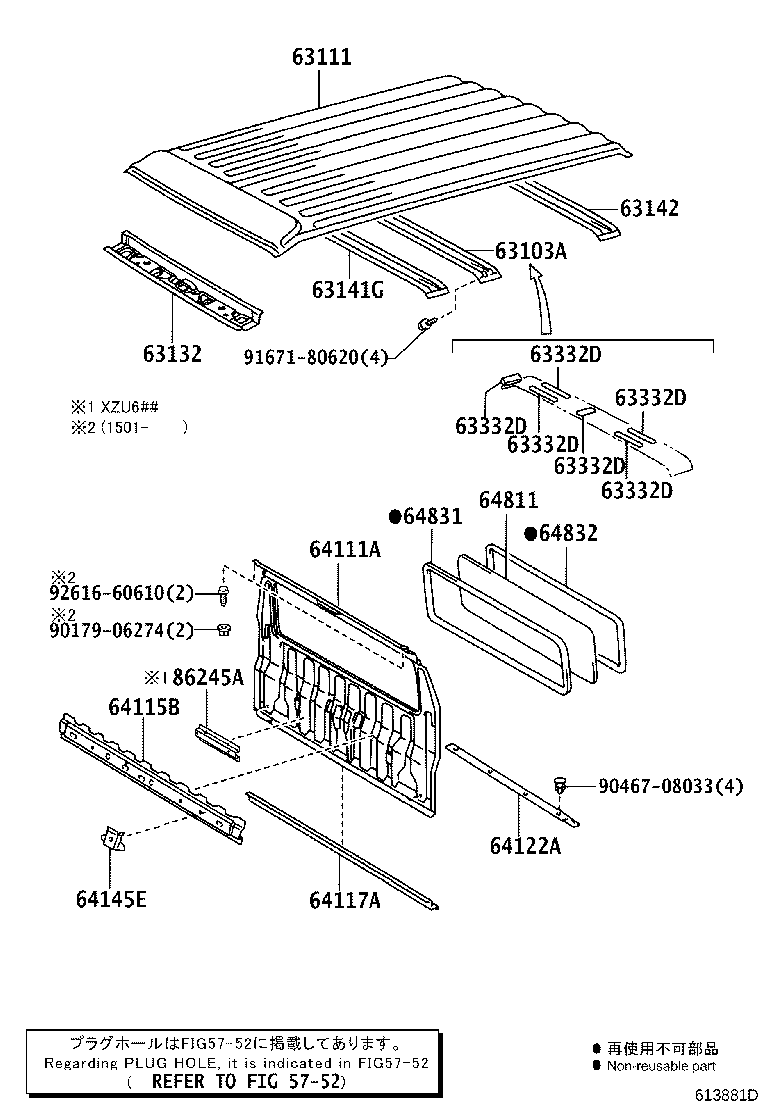

Toyota Dyna/toyoace XZU605 ROOF PANEL & BACK PANEL

Part #	Description	Period	Qty
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63123-37010	TRC600,XZU605,655,685,695..DCB..20T	07/2011 - 03/2014	1
63123-37011	XZU605,655,685,695..DCB..20T	04/2014 - 05/2017	1
63111 - PANEL, ROOF
63111-37140	XZU605,655,685,695..DCB..20T	07/2011 - 05/2017	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-37071	TRC600..DM5;XZU600,640,650,685..IV6;TRC600,XZU655,685,695..DCB..20T;XZC60#,610,630,675,XZU60#,610,620,630,675..DM3,DM5,DM7,T2,T4,T5	07/2011 - 12/2014	1
63132-37072	TRC600..DM5;XZU600,640,650,685..IV6;TRC600,XZU655,685,695..DCB..20T;XZC60#,610,630,675,XZU60#,610,620,630,675..DM3,DM5,DM7,T2,T4,T5	12/2014 - 04/2016	1
63132-37073	XZU600,640,650,685..IV6;XZU655,685,695..DCB..DCRTJ;XZC60#,610,630,675,XZU60#,610,620,630,675..DM3,DM5,DM7,T2,T4,T5	05/2016 - 05/2017	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-37060	XZC600..5F..ST;XZU600..20T..IV3;XZU600..5F..20T..CBU;XZU655,685,695..DCB..DCRTJ;XZU600,640,650,685..MTM..IV6;XZU600..6FC..(20T,30T)..(CBU,IV6);XZC60#,610,630,675,XZU605,610,620,630,675..(DCB,SCB)..WT	07/2011 - 05/2017	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63141-37140	XZU605,655,685,695..DCB..20T	07/2011 - 05/2017	1
63332D - PAD, SUN ROOF HEADLINING
63332-37010	XZU605,655,685,695..DCB..20T 150X15	07/2011 - 05/2017	4
63332-37040	XZU605,655,685,695..DCB..20T 87X20	07/2011 - 05/2017	1
63332-37020	XZU605,655,685,695..DCB..20T 70X9	07/2011 - 05/2017	1
63332D - PAD, SUN ROOF HEADLINING
63332-37010	XZU605,655,685,695..DCB..20T 150X15	07/2011 - 05/2017	4
63332-37040	XZU605,655,685,695..DCB..20T 87X20	07/2011 - 05/2017	1
63332-37020	XZU605,655,685,695..DCB..20T 70X9	07/2011 - 05/2017	1
63332D - PAD, SUN ROOF HEADLINING
63332-37010	XZU605,655,685,695..DCB..20T 150X15	07/2011 - 05/2017	4
63332-37040	XZU605,655,685,695..DCB..20T 87X20	07/2011 - 05/2017	1
63332-37020	XZU605,655,685,695..DCB..20T 70X9	07/2011 - 05/2017	1
63332D - PAD, SUN ROOF HEADLINING
63332-37010	XZU605,655,685,695..DCB..20T 150X15	07/2011 - 05/2017	4
63332-37040	XZU605,655,685,695..DCB..20T 87X20	07/2011 - 05/2017	1
63332-37020	XZU605,655,685,695..DCB..20T 70X9	07/2011 - 05/2017	1
63332D - PAD, SUN ROOF HEADLINING
63332-37010	XZU605,655,685,695..DCB..20T 150X15	07/2011 - 05/2017	4
63332-37040	XZU605,655,685,695..DCB..20T 87X20	07/2011 - 05/2017	1
63332-37020	XZU605,655,685,695..DCB..20T 70X9	07/2011 - 05/2017	1
63332D - PAD, SUN ROOF HEADLINING
63332-37010	XZU605,655,685,695..DCB..20T 150X15	07/2011 - 05/2017	4
63332-37040	XZU605,655,685,695..DCB..20T 87X20	07/2011 - 05/2017	1
63332-37020	XZU605,655,685,695..DCB..20T 70X9	07/2011 - 05/2017	1
64111A - PANEL, BACK
64111-37513	TRC600,XZU605,655,685,695..DCB..20T	10/2014 - 01/2015	1
64111-37512	TRC600,XZU605,655,685,695..DCB..20T	07/2011 - 10/2014	1
64111-37514	TRC600,XZU605,655,685,695..DCB..20T	01/2015 - 05/2017	1
64115B - REINFORCEMENT, BACK PANEL
64115-37124	BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCB,SCB	07/2011 - 07/2016	1
64115-25040	BZU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK)	07/2016 - 12/2999	1
64117A - REINFORCEMENT, CAB BACK, LOWER
64117-37030	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
64122A - BAFFLE, DUST REAR BODY
64122-25020	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
64145E - BRACKET, REAR SEAT BACK SET
64145-37020	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	2
64811 - GLASS, BACK WINDOW
64811-37140	TRC600,XZU60#,640,655,685,695..DCB *TEM,厚さ=3.5,ｸﾞﾘｰﾝ	07/2011 - 01/2012	1
64811-37200	XZU60#,640,655,685,695..DCB *TEM,厚さ=3.5,ｸﾞﾘｰﾝ	02/2012 - 05/2017	1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-37050	TRC600,XZU60#,640,655,685,695..DCB	07/2011 - 01/2012	1
64831-37051	XZU60#,640,655,685,695..DCB	02/2012 - 05/2017	1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-37040	XZU60#,640,655,685,695..DCB	07/2011 - 05/2017	1
86245A - BRACKET, VOLTAGE CONVERTER
86245-37030	XZU605,655,685,695..DCB..20T	07/2011 - 05/2017	1
Common parts
90179-06274
90467-08033
91671-80620
92616-60610
Linked diagrams
5752

XZU605-PQMMA3 (2011)

(0610- )DCB..20T

(1107- )DCB..20T
