XZU605-PQMMA3 (2011)
Toyota Dyna/Toyoace

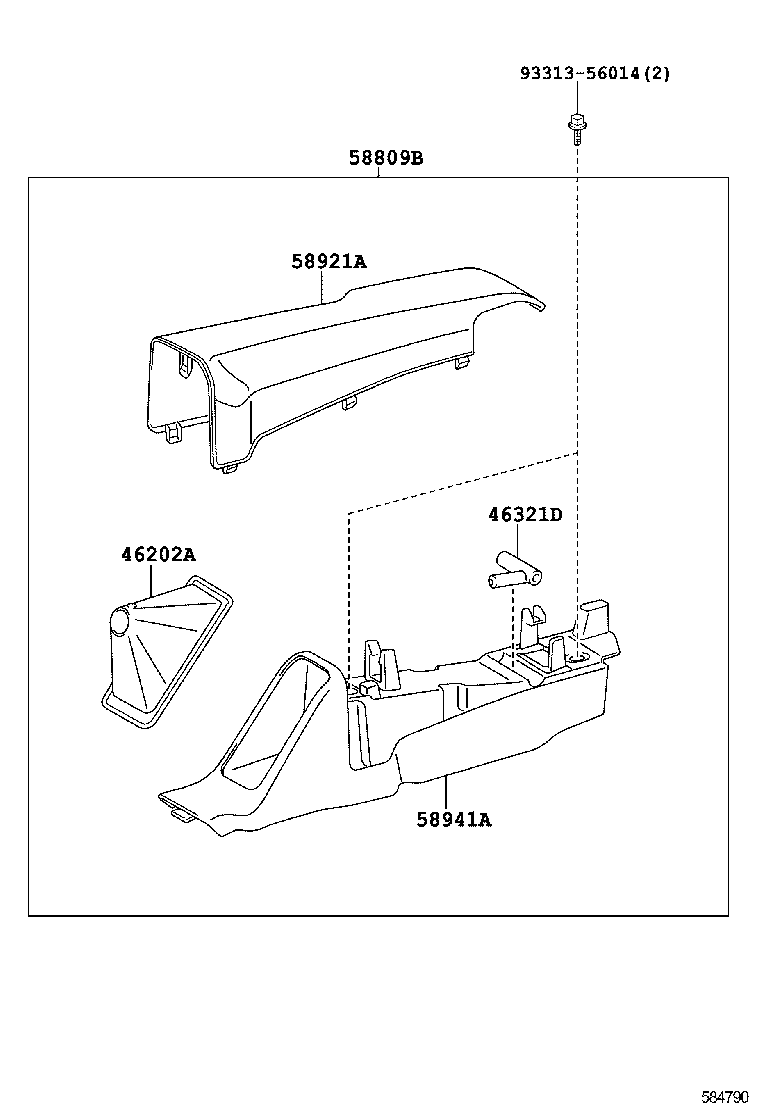

ILLUST NO. 1 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53145-28010 | ||||
| 90119-08190 | ||||
| 90189-06018 | ||||
| 93313-56014 | ||||
| 93560-55016 | ||||
| 93560-55025 | ||||
| Linked diagrams | ||||
| 7455 | ||||

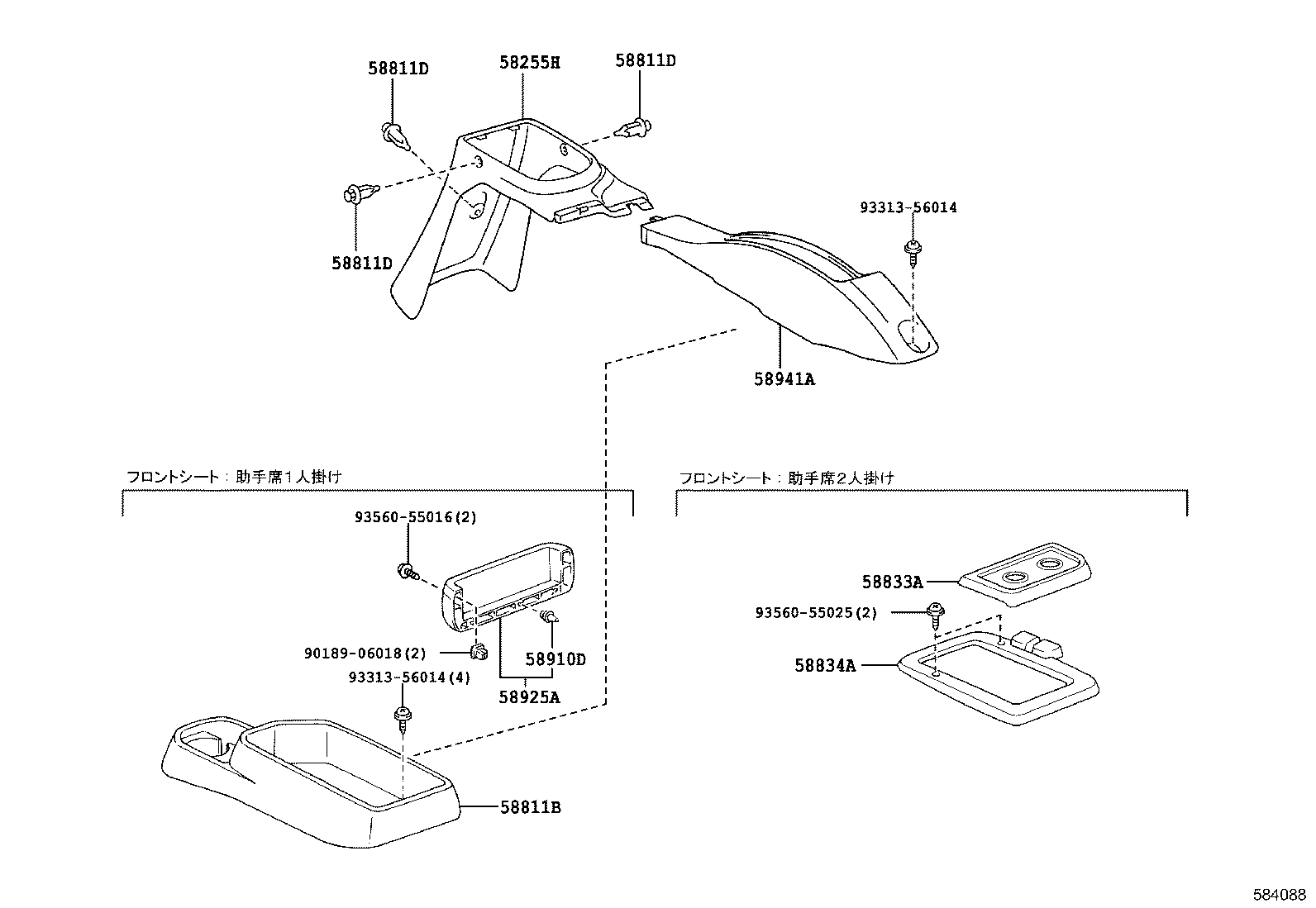

ILLUST NO. 1 OF 3(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58255H - COVER, SHIFT LEVER BOOT | ||||
| 58255-37080B0 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT GRAY,TRIM1# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07191C1 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT BLACK,TRIM1# |
3 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07191C1 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT BLACK,TRIM1# |
3 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07191C1 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT BLACK,TRIM1# |
3 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58839-37010B1 |
XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-25011B1 |
XZU60#,640,655,685,695..DCB GRAY,TRIM1# |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58941-37050B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 58941-37110B0 |
XZU600..6FC..(IV5,IV6);XZU600..CBU,IV3,IV4,IV7;BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU605,610,620,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5 GRAY,TRIM1# |
1 | ||
| 58941-37050B1 |
XZU620..5F;XZU645,655..20T;XZC60#,610,630,645,655,675,XZU60#,610,630,640,650,675,685,695..(03S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90189-06018 | ||||
| 93313-56014 | ||||
| 93560-55016 | ||||
| 93560-55025 | ||||

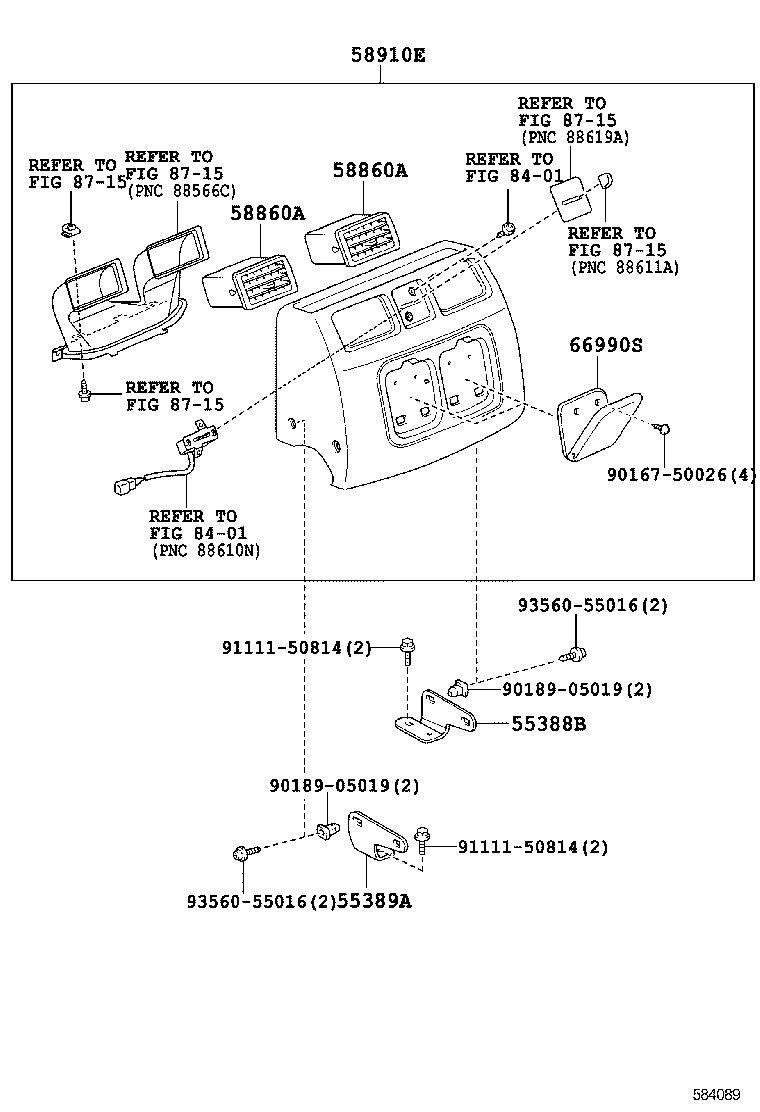

ILLUST NO. 2 OF 3(1107- )XZU605,655..DCB
ﾘﾔｺﾝｿｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-37010 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 55388-37010 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-37020 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO |
1 | ||
| 55389-37020 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 55670-89111B3 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO,GRAY,TRIM1# |
2 | ||
| 55670-89111B3 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO,GRAY,TRIM1# |
2 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 55670-89111B3 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO,GRAY,TRIM1# |
2 | ||
| 55670-89111B3 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO,GRAY,TRIM1# |
2 | ||
| 58910E - BOX ASSY, CONSOLE, REAR | ||||
| 58910-37081B0 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO,GRAY,TRIM1# |
1 | ||
| 58910-37080B0 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO,GRAY,TRIM1# |
1 | ||
| 58910-37080B0 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO,GRAY,TRIM1# |
1 | ||
| 58910-37081B0 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO,GRAY,TRIM1# |
1 | ||
| 58910-37060B1 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO,GRAY,TRIM1# |
1 | ||
| 58910-37060B1 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO,GRAY,TRIM1# |
1 | ||
| 66990S - CONSOLE BOX CUP HOLDER | ||||
| 66990-87201B1 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *RECO,GRAY,TRIM1# |
2 | ||
| 66990-87201B1 |
XZU605,655..DCB ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) + *POF + *RECO,GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90167-50026 | ||||
| 90189-05019 | ||||
| 91111-50814 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8715 | ||||
ILLUST NO. 3 OF 3(1305- )
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58941-37050B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 58941-37110B0 |
XZU600..6FC..(IV5,IV6);XZU600..CBU,IV3,IV4,IV7;BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU605,610,620,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5 GRAY,TRIM1# |
1 | ||
| 58941-37050B1 |
XZU620..5F;XZU645,655..20T;XZC60#,610,630,645,655,675,XZU60#,610,630,640,650,675,685,695..(03S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93313-56014 | ||||
