XZU605-PQMMA3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )N04C..CBU,IV3,IV6

Click highlighted areas on diagram

diagram 11301G 11301J 11301K 11301M 11302A 11311 11312 11321 11351 11351A 11351B 11351F 11351G 11351H 11354 11354 11381A 1201 1201 1201 1201 1201 1603 1603 16603B 16603B 16630H 16630H 16631A 16631A 16631A 16631A 16636D 16636D 19121C 19121C 21814E0120 21857E0030 21857E0090 21857E0090 8716 8716 87208L 9003105075 9003105075 9003105123 9003105123 9003105126 9003105128 9003105133 9003105142 9003105146 9003105153 9003105153 9003116102 9003119141 9003119141 9003204035 9011908386
Part # Description Qty Price
Common parts
21814-E0120
21857-E0030
21857-E0090
90031-05075
90031-05123
90031-05126
90031-05128
90031-05133
90031-05142
90031-05146
90031-05153
90031-16102
90031-19141
90032-04035
90119-08386
Linked diagrams
1201
1603
8716

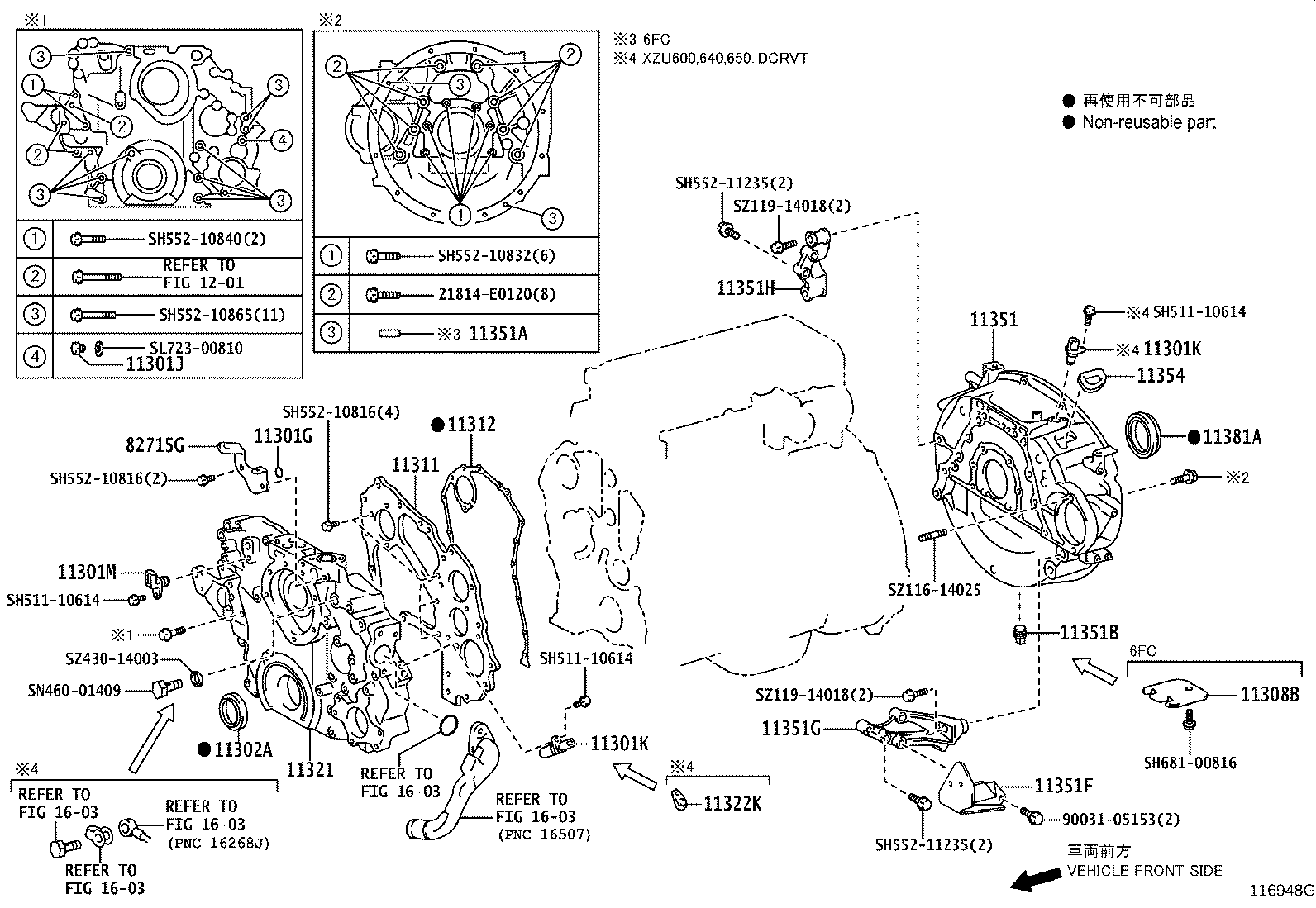

(1107- )N04C..DCRTH,DCRTJ,DCRTK,DCRVT..CBU,IV3,IV5,IV6

Click highlighted areas on diagram

diagram 11301G 11301J 11301K 11301K 11301M 11302A 11308B 11311 11312 11321 11322K 11351 11351A 11351B 11351F 11351G 11351H 11354 11381A 1201 1603 1603 1603 1603 1603 21814E0120 82715G 9003105153 SH51110614 SH51110614 SH51110614 SH55210816 SH55210816 SH55210832 SH55210840 SH55210865 SH55211235 SH55211235 SH68100816 SL72300810 SN46001409 SZ11614025 SZ11914018 SZ11914018 SZ43014003
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
SN741-00253

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
SN460-00807

N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
SZ341-08001

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
SZ313-58002

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
SZ313-58001

N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
11311 - PLATE, FRONT END
S1140-51090

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11321 - CASE, TIMING GEAR
11310-E0150

N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
11310-E0141

N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
11310-E0151

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11351 - HOUSING, FLYWHEEL
11351-E0G72

N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..MTM..(CBU,IV3,IV5,IV6)

 1
11351-E0G75

N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM..(CBU,IV3,IV5,IV6)

 1
11351-E0G73

N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..MTM..(CBU,IV3,IV5,IV6)

 1
11351-E0G74

N04C..XZU640..SCB..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..MTM..(20T,35T);N04C..XZU650..T3..5F..30T..DCRTJ..CBU;N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..MTM..(CBU,IV3,IV5,IV6)

 1
11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING)
SN480-01008

N04C..XZU640..SCB..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..5F..30T..DCRTJ..CBU;N04C..XZC600,610,630,645,655,XZU650..MTM..(20T,35T);N04C..XZC605,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM..(CBU,IV3,IV5,IV6)

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
S1135-62030

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-E0060

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
11381A - SEAL, ENGINE REAR OIL
SZ311-00002

N04C..XZC600..5F..ST;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU600..MTM..(CBU,IV3,IV5,IV6);N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6)

 1
82715G - BRACKET, WIRING HARNESS CLAMP
82715-E0X90

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
82715-3VL60

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
Common parts
21814-E0120
90031-05153
SH511-10614
SH552-10816
SH552-10832
SH552-10840
SH552-10865
SH552-11235
SH681-00816
SL723-00810
SN460-01409
SZ116-14025
SZ119-14018
SZ430-14003
Linked diagrams
1201
1603
