XZU602W-TKTSX6 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

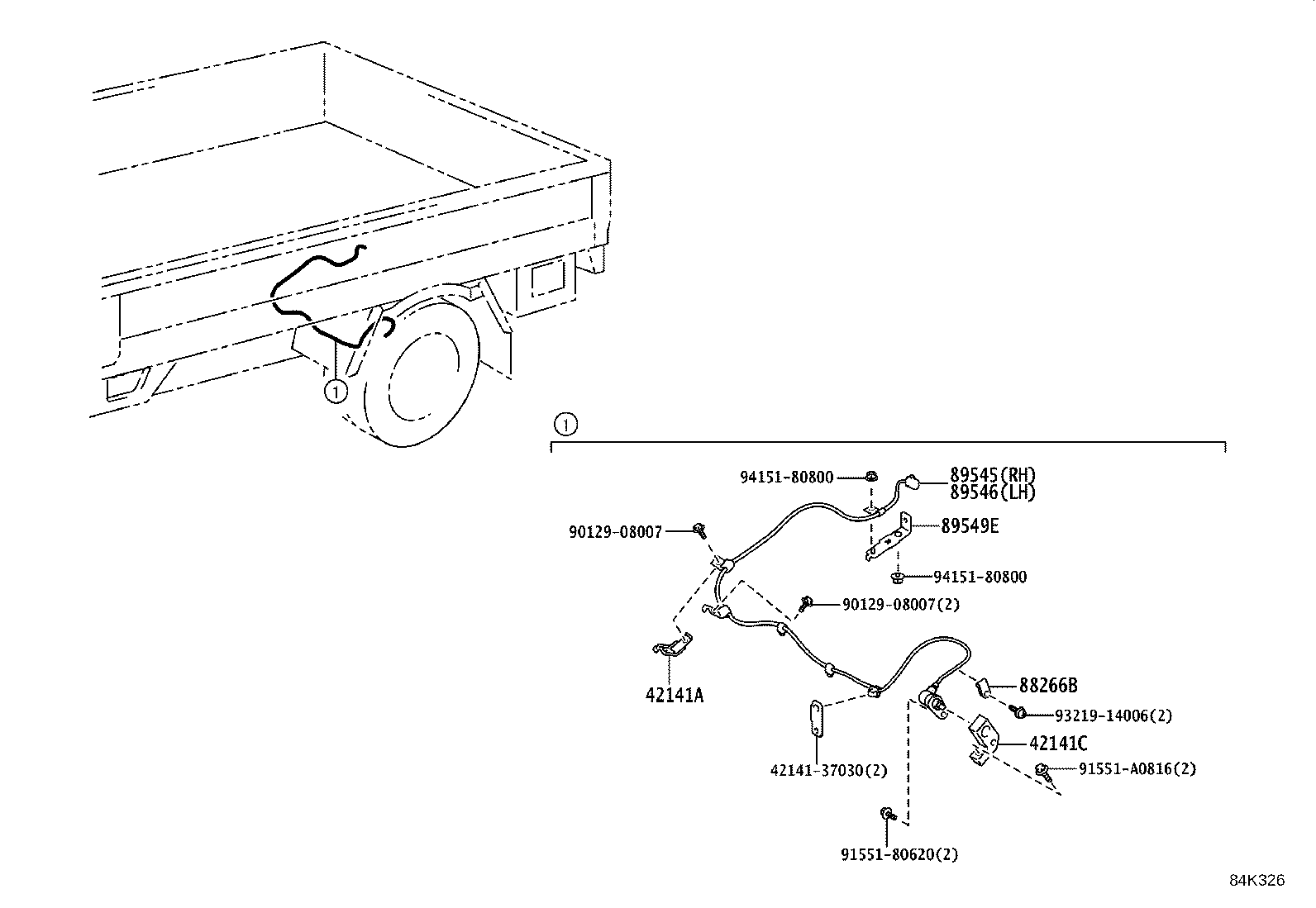

ILLUST NO. 3 OF 3(1905- )XZU650,652..DCRWD,DCVTO..IV6 ; (1905-)XZU600,602,640,642..40T..DCRWD

Click highlighted areas on diagram

ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ

diagram 4214137030 42141A 42141C 88266B 89545 89546 89549E 9012908007 9012908007 9155180620 91551A0816 9321914006 9415180800 9415180800
Part # Description Qty Price
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37010

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO)

 1
42141C - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37050

XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO)

 2
88266B - CLAMP, SKID CONTROL SENSOR, NO.1
88266-37330

XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO)

 2
89545 - SENSOR, SPEED, REAR RH
89545-37230

XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO)

 1
89546 - SENSOR, SPEED, REAR LH
89546-37230

XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO)

 1
89549E - BRACKET, SPEED SENSOR
82715-3V690

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO)

 1
Common parts
42141-37030
90129-08007
91551-80620
91551-A0816
93219-14006
94151-80800
