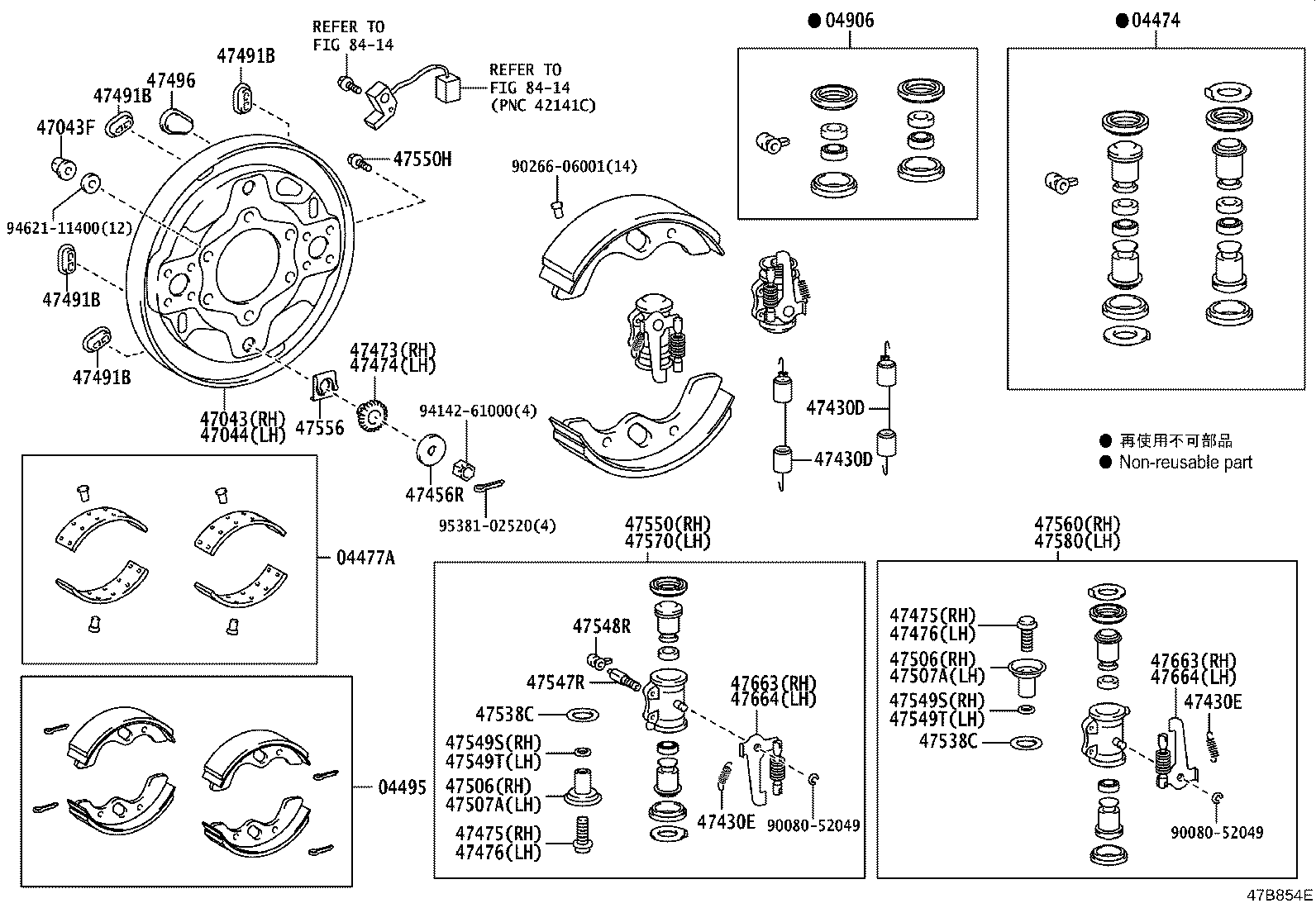

XZU602W-TKTSX6 (2019)
Toyota Dyna/Toyoace
(1905- )XZU650,652..DCRWD,DCVTO..IV6 ; (1905-)XZU600,602,640,642..40T..DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04468-37410 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) 左側 |
1 | ||
| 04474-37560 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) 右側 |
1 | ||
| 04477A - LINING KIT, BRAKE | ||||
| 04477-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) ﾏｰｸ NBK D2204 |
1 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-37230 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) ﾏｰｸ NBK D2204 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04476-37100 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47421-37030 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01441 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47422-37030 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90905-07017 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90905-07017 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12085 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12085 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-37010 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37020 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37090 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37090 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37090 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
8 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37090 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
8 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47496-37020 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37040 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37040 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-37020 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-37020 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37200 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90105-12387 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
8 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47556-37010 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37200 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37220 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37220 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47545-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47545-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47546-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47546-37110 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| Common parts | ||||
| 90080-52049 | ||||
| 90266-06001 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| Linked diagrams | ||||
| 8414 | ||||
