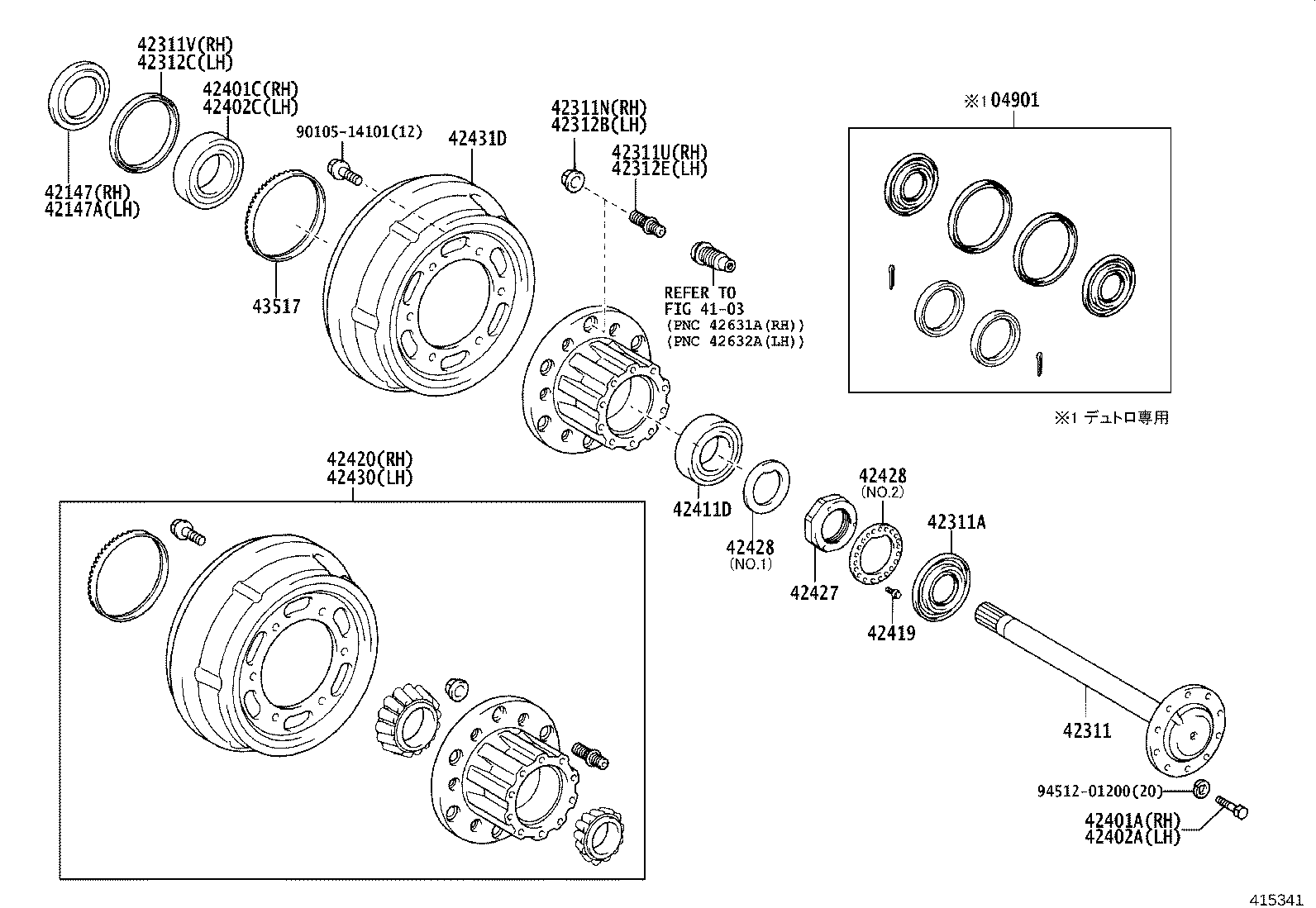

XZU602W-TKTSX6 (2019)
Toyota Dyna/Toyoace
(1905- )XZU650,652..DCRWD,DCVTO..IV6 ; (1905-)XZU600,602,640,642..40T..DCRWD
ﾄﾞﾗﾑﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04901 - MAINTENANCE KIT, BRAKE | ||||
| 04901-37050 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 42147 - GUIDE, REAR AXLE OIL SEAL, RH | ||||
| 42147-37010 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 42147A - GUIDE, REAR AXLE OIL SEAL, LH | ||||
| 42147-37010 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37120 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90033-11032 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-20007 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
6 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| SZ311-01049 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-20007 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
6 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| SZ311-01049 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90031-01163 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
10 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90033-66030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90031-01163 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
10 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90033-66030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90033-66031 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 90119-06199 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
6 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39115 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 42428-37010 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 42428-37010 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39115 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 42431D - DRUM, BRAKE | ||||
| 42431-37101 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37020 |
XZU650,652..(DCRWD,DCVTO)..IV6;XZU600,602,640,642..40T..(DCRWD,DCVTO) |
2 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
