XZU548-TKMMB (2006)
Toyota Dyna/Toyoace
(0610- )BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU

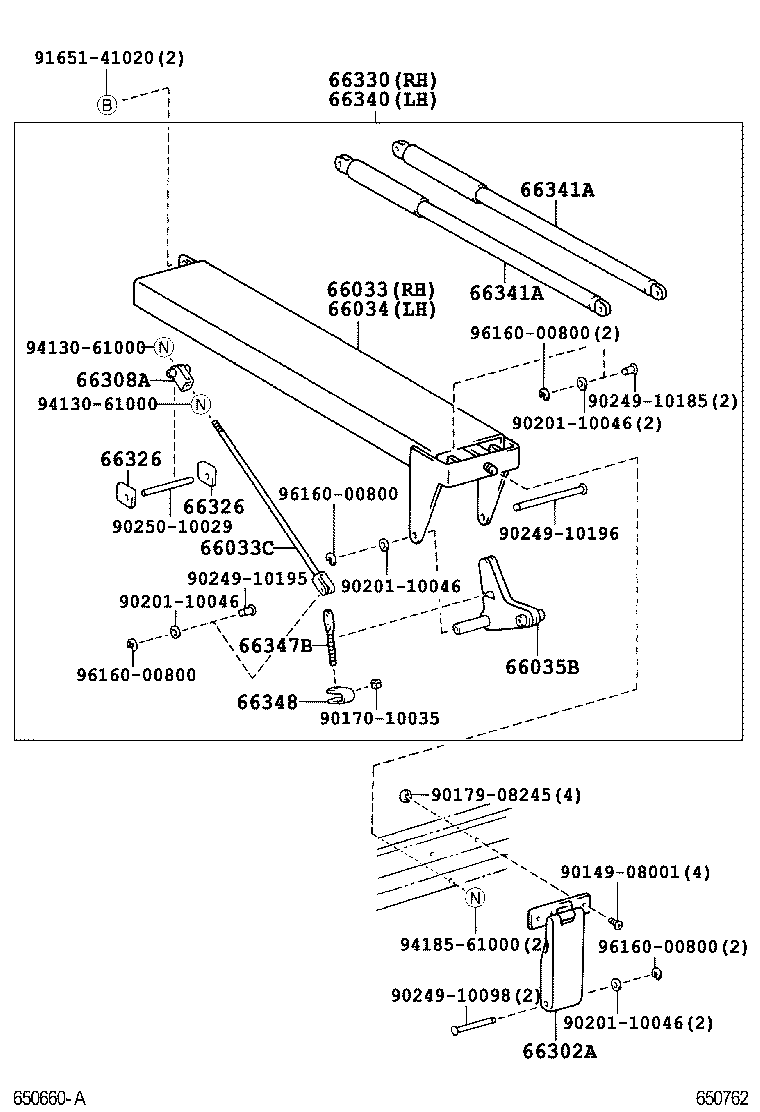

ｻｲﾄﾞｹﾞｰﾄ ﾍﾙﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-37090 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
1 | ||
| 66033C - ROD SUB-ASSY, GATE HELPER TENSION | ||||
| 66033-37100 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
2 | ||
| 66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH | ||||
| 66034-37020 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66035-37020 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37011 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
2 | ||
| 66308A - END SUB-ASSY, GATE HELPER ROD, NO.2 | ||||
| 66308-37010 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
2 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
4 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
4 | ||
| 66330 - HELPER ASSY, GATE, RH | ||||
| 66330-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU *** |
1 | ||
| 66340 - HELPER ASSY, GATE, LH | ||||
| 66340-37050 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU *** |
1 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
4 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
4 | ||
| 66347B - BOLT, GATE HELPER BELLCRANK ADJUST | ||||
| 66347-37020 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
2 | ||
| 66348 - RETAINER, GATE HELPER BELLCRANK ADJUST BOLT | ||||
| 66348-37010 |
BZU340,TRU340,XZU334,34#,378,388,548..SCB..CBU |
2 | ||
| Common parts | ||||
| 90149-08001 | ||||
| 90170-10035 | ||||
| 90179-08245 | ||||
| 90201-10046 | ||||
| 90249-10098 | ||||
| 90249-10185 | ||||
| 90249-10195 | ||||
| 90249-10196 | ||||
| 90250-10029 | ||||
| 91651-41020 | ||||
| 94130-61000 | ||||
| 94185-61000 | ||||
| 96160-00800 | ||||
(0610- )T2,T3,T4,T5..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2 | ||||
| 66187-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| Common parts | ||||
| 90148-80008 | ||||
| 90148-80025 | ||||
| 90179-08245 | ||||
| 90467-06038 | ||||
| 90467-08008 | ||||
| 90541-06021 | ||||
| 93590-16014 | ||||
(0610- )BZU300..T4..30T..CBU ; (0610- )XZU504..DCRTJ,DCRUD..CBU ; (0610- )
TECS=ﾊﾟﾜｰﾘﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66151-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66151-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66152-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66152-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66153-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66153-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66154-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66154-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| Common parts | ||||
| 90148-80008 | ||||
| 90148-80025 | ||||
| 90179-08245 | ||||
| 90467-06038 | ||||
| 90467-08008 | ||||
| 93590-16014 | ||||
(0610- )XZU504..DCRTJ,DCRUD..CBU ; (0610-)XZU504..5F..WT..DCRTH..CBU ; (0610
TECS=ﾊﾟﾜｰｹﾞｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600-3V670 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 90119-08464 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
14 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65679-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65010-37040 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU NO.2 ｾﾝﾀ |
5 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 65050-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU NO.1 ﾌﾛﾝﾄ & ﾘﾔ |
2 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66151-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66151-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66152-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66152-92703 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| Common parts | ||||
| 90148-80008 | ||||
| 90148-80025 | ||||
| 90179-08245 | ||||
| 90467-08008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
