XZU548-TKMMB (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jan 2008
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU304,334,34#,378,388,548..SCB..T3,T4..CBU..1NO

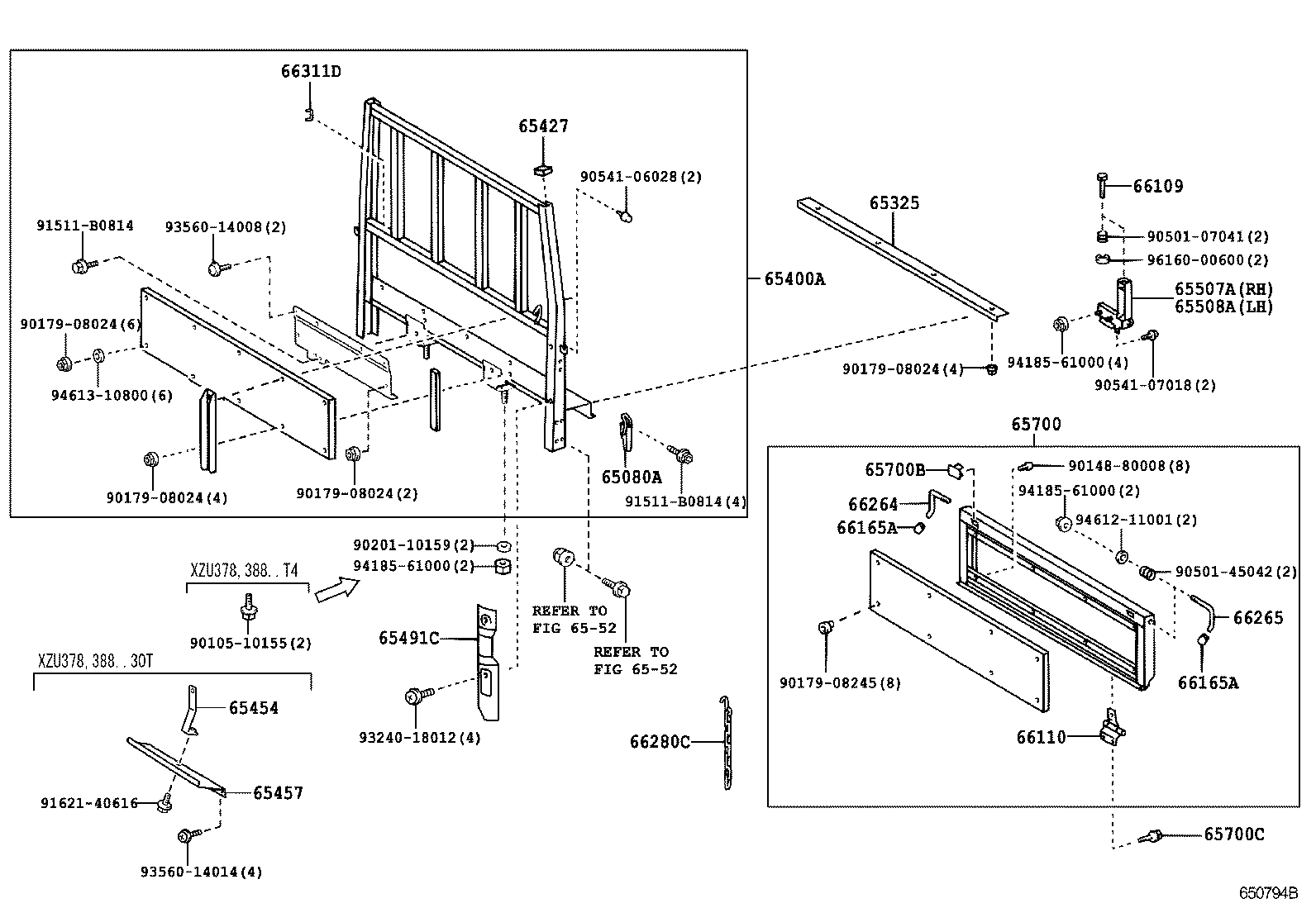

Click highlighted areas on diagram

diagram 65080A 65325 65400A 65427 65454 65457 65491C 65507A 65508A 6552 6552 65700 65700B 65700C 66109 66110 66165A 66165A 66264 66265 66280C 66311D 9010510155 9014880008 9017908024 9017908024 9017908024 9017908024 9017908245 9020110159 9050107041 9050145042 9054106028 9054107018 91511B0814 91511B0814 9162140616 9324018012 9356014008 9356014014 9418561000 9418561000 9418561000 9461211001 9461310800 9616000600
Part # Description Qty Price
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 2
65325 - PLATE, FLOOR BOARD, FRONT
65325-37030

BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..CBU..1NO

 1
65400A - GUARD ASSY, REAR BODY
65400-37J60

XZU34#,548..T3..CBU

 1
65427 - COVER, GUARD FRAME
65427-92800

BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..CBU..1NO

 2
65491C - PROTECTOR, GUARD FLAME, LOWER
65481-37010

BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..CBU..1NO

右側

 1
65482-37010

BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..CBU..1NO

左側

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-37070

XZU378..T3..20T..CBU;BZU340,TRU340,XZU34#,388,548..CBU

 1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464

BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..CBU..1NO

 8
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 2
66110 - HINGE ASSY, TAIL GATE
66110-37010

BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..CBU..1NO

 4
66165A - CAP, GATE LATCH HANDLE
66165-92701

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 2
66165A - CAP, GATE LATCH HANDLE
66165-92701

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 1
66280C - CHAIN ASSY, TAIL GATE
66280-37020

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 2
66311D - HOOK, ROPE
66312-37030

BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU

 2
Common parts
90105-10155
90148-80008
90179-08024
90179-08245
90201-10159
90501-07041
90501-45042
90541-06028
90541-07018
91511-B0814
91621-40616
93240-18012
93560-14008
93560-14014
94185-61000
94612-11001
94613-10800
96160-00600
Linked diagrams
6552
