XZU548-TKMMB (2006)
Toyota Dyna/Toyoace
(0610- )XZU504..DCRTJ,DCRUD..CBU ; (0610-)XZU508..T4..5F..DCRTH,DCRUD..CBU ;
TECS=ﾊﾟﾜｰﾘﾌﾄ

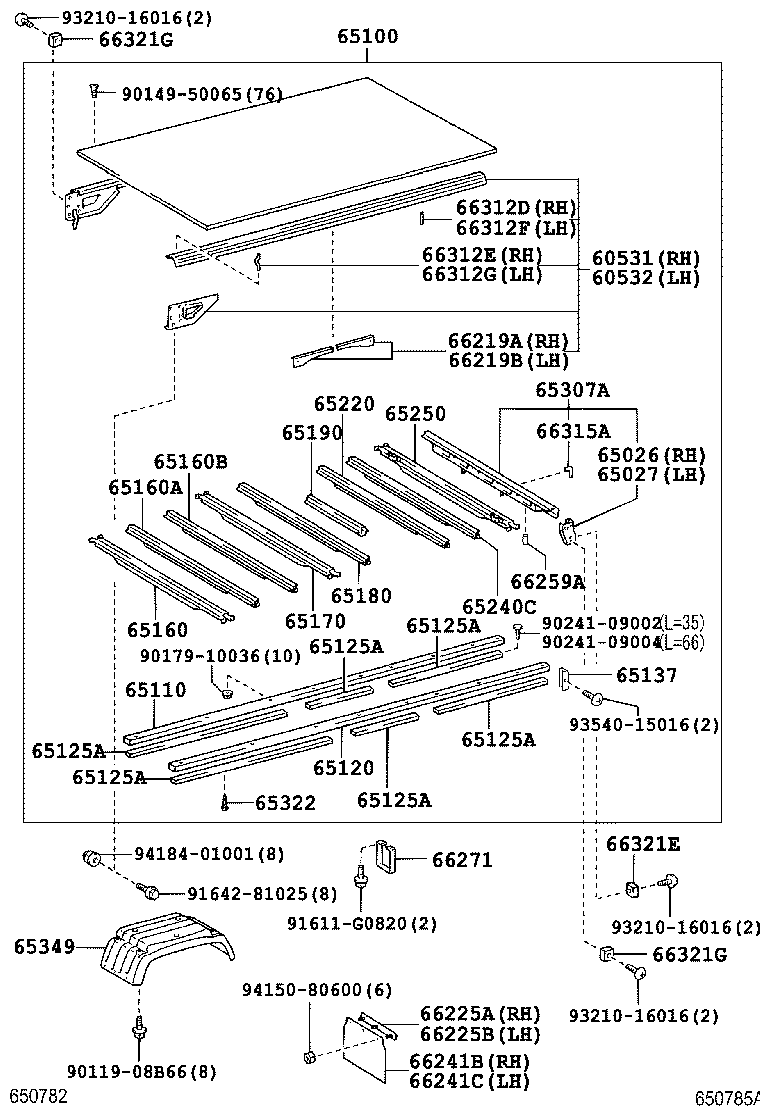

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 60531-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 60532-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-37L60 |
XZU34#,548..T3..20T..CBU |
1 | ||
| 65100-37L60 |
XZU34#,548..T3..20T..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65110-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65120-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
XZU378..SCB..CBU;BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65160-37140 |
XZU378..SCB..CBU;BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37260 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65160-37260 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37040 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65190-37040 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65160-37140 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65322 - NAIL | ||||
| 90290-05001 |
XZU378..T4..CBU;XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU |
17 | ||
| 90290-05001 |
XZU378..T4..CBU;XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU |
17 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BZU300,TRU300,XZU304,378..(T3,T4,T5)..20T..CBU;BZU340,TRU340,500,XZU308,338,34#,368,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66271-37010 |
BZU300,TRU300,XZU304,378..(T3,T4,T5)..20T..CBU;BZU340,TRU340,500,XZU308,338,34#,368,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
(0610- )BZU340,TRU340,XZU34#,388,548..SCB..T3,T4..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-37L60 |
XZU34#,548..T3..20T..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37030 |
BZU300,340..30T..CBU;TRU300,XZU30#,334,34#,378,388,50#,548..(T3,T5)..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
XZU378..SCB..CBU;BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37230 |
BZU340,TRU340,XZU334,34#,388,548..SCB..(T3,T4)..CBU |
1 | ||
| 65160B - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
BZU340,TRU340,XZU34#,388,548..SCB..(T3,T4)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37260 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37040 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37440 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37230 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37540 |
BZU300,340,TRU300,XZU304,334,34#,378,388,548..T3..CBU |
1 | ||
| 65322 - NAIL | ||||
| 90290-05001 |
XZU378..T4..CBU;XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU |
17 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BZU300,TRU300,XZU304,378..(T3,T4,T5)..20T..CBU;BZU340,TRU340,500,XZU308,338,34#,368,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BZU300,340,TRU300,XZU304,334,34#,378,388,548..T3..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
(0610- )XZU504..DCRTJ,DCRUD..CBU ; (0610-)XZU304..T5..20T..DCRUE..CBU ; (061
TECS=ﾊﾟﾜｰｹﾞｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 60531-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 60532-37680 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65026-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-37L60 |
XZU34#,548..T3..20T..CBU |
1 | ||
| 65100-37L60 |
XZU34#,548..T3..20T..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65110-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65120-37B70 |
BZU340,XZU34#,548..T3..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340,XZU34#,548..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65125-37540 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65127-37370 |
XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37030 |
BZU300,340..30T..CBU;TRU300,XZU30#,334,34#,378,388,50#,548..(T3,T5)..CBU |
2 | ||
| 65137-37030 |
BZU300,340..30T..CBU;TRU300,XZU30#,334,34#,378,388,50#,548..(T3,T5)..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
XZU378..SCB..CBU;BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65160-37140 |
XZU378..SCB..CBU;BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37260 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65160-37260 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65180-37450 |
BZU340,TRU340,XZU334,34#,378,388,548..(T3,T4)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37040 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65190-37040 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65160-37140 |
BZU300,TRU300..T3..CBU;BZU340,TRU340,XZU304,334,34#,378,388,548..(T3,T4)..CBU..1NO |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37540 |
BZU300,340,TRU300,XZU304,334,34#,378,388,548..T3..CBU |
1 | ||
| 65307-37540 |
BZU300,340,TRU300,XZU304,334,34#,378,388,548..T3..CBU |
1 | ||
| 65322 - NAIL | ||||
| 90290-05001 |
XZU378..T4..CBU;XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU |
17 | ||
| 90290-05001 |
XZU378..T4..CBU;XZU388..SCB..CBU;BZU340,XZU34#,548..T3..CBU |
17 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219-37080 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37220 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66241-37A20 |
XZU388..SCB..CBU;BZU340,XZU34#,378,548..T3..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 66259-37010 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BZU300,TRU300,XZU304,378..(T3,T4,T5)..20T..CBU;BZU340,TRU340,500,XZU308,338,34#,368,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66271-37010 |
BZU300,TRU300,XZU304,378..(T3,T4,T5)..20T..CBU;BZU340,TRU340,500,XZU308,338,34#,368,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66311-37020 |
BZU340,TRU340,XZU34#,388,548..SCB..CBU |
9 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BZU300,340,TRU300,XZU304,334,34#,378,388,548..T3..CBU |
4 | ||
| 66315-37010 |
BZU300,340,TRU300,XZU304,334,34#,378,388,548..T3..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
