XZU548-TKMMB (2006)
Toyota Dyna/Toyoace

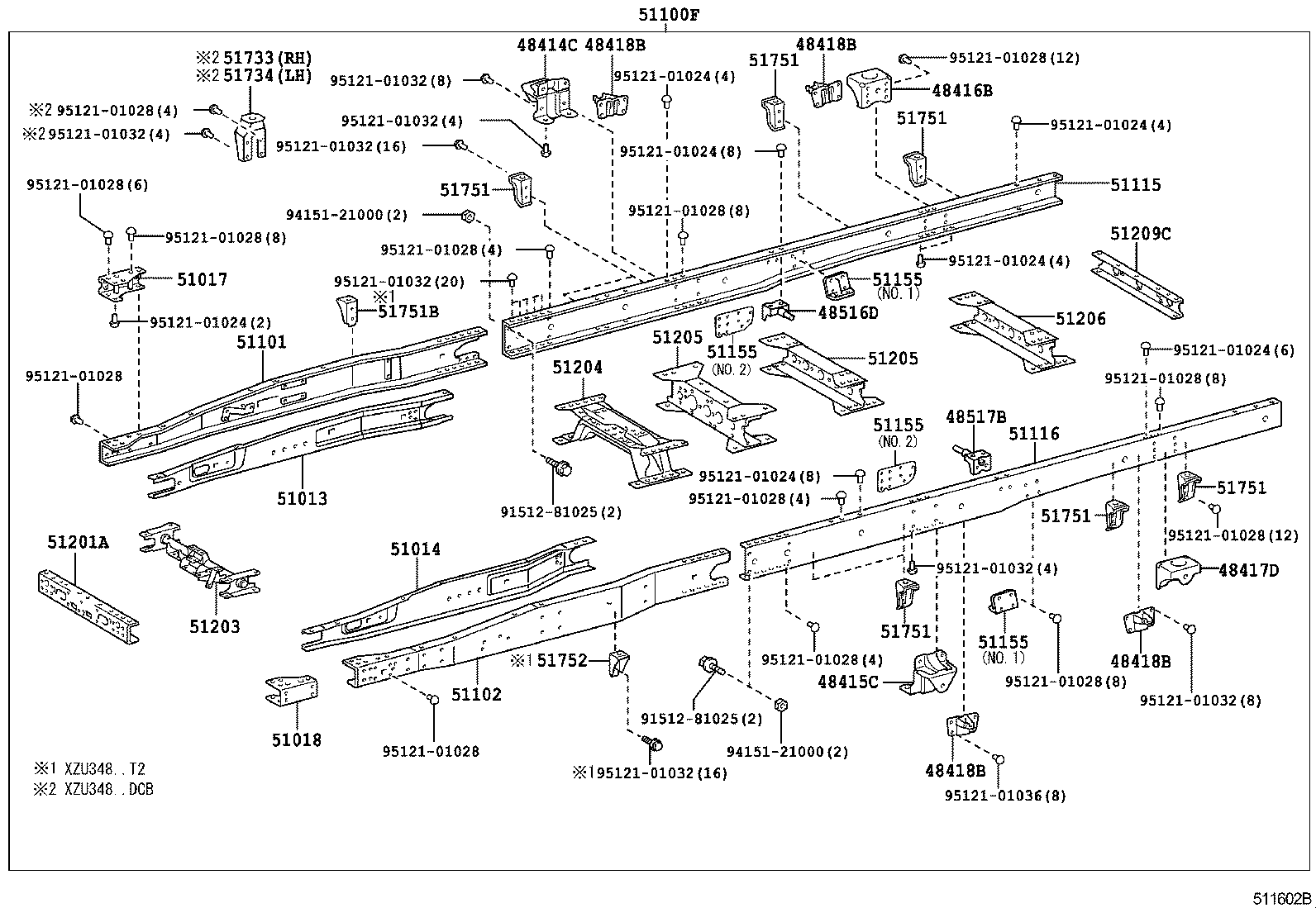

ILLUST NO. 2 OF 4(0610- )XZU348,548
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37430 |
XZU308,338,348,508,538,548 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37410 |
XZU308,338,348,508,538,548 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37170 |
XZU308,338,348,508,538,548 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37140 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37Y30 |
XZU348,548..SCB..(T3,T4)..(5F,6FC) ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 51001-37Y20 |
XZU348,548..SCB..(T3,T4)..(5F,6FC) |
1 | ||
| 51101 - RAIL, FRONT FRAME SIDE, RH | ||||
| 51101-37040 |
XZU308,338,348,508,538,548..SCB..(T3,T4,T5) |
1 | ||
| 51102 - RAIL, FRONT FRAME SIDE, LH | ||||
| 51102-37040 |
XZU308,338,348,508,538,548..SCB..(T3,T4,T5) |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37220 |
XZU348,548..SCB..(5F,6FC) ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 51115-37230 |
XZU34#,548..20T,30T |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37080 |
XZU34#,548..SCB..(20T,30T) |
1 | ||
| 51108-37070 |
XZU348,548..SCB..(5F,6FC) ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU344;XZU334,348,354,548..(20T,40T)..1NO NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37210 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37330 |
XZU344..(20T,30T)..(DCRTJ,DCRTK);XZU30#,338,348,50#,538,548..(T2,T3,T4,T5)..(5F,6FC)..20T |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZU34#,548..20T,30T ﾘﾔ |
1 | ||
| 51204-37110 |
XZU34#,548..20T,30T ﾌﾛﾝﾄ |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZU34#,548..20T,30T ﾘﾔ |
1 | ||
| 51204-37110 |
XZU34#,548..20T,30T ﾌﾛﾝﾄ |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37030 |
XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
BZU340,TRU340,XZU33#,34#,378,388,538,548 |
1 | ||
| Common parts | ||||
| 91512-81025 | ||||
| 94151-21000 | ||||
| 95121-01024 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
ILLUST NO. 1 OF 4(0610- )DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37Y30 |
XZU348,548..SCB..(T3,T4)..(5F,6FC) ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 51001-37Y20 |
XZU348,548..SCB..(T3,T4)..(5F,6FC) |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37451 |
XZU308,338,348,508,538,548..SCB |
1 | ||
| Common parts | ||||
| 90119-12377 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90467-09101 | ||||
| 91642-81245 | ||||
ILLUST NO. 3 OF 4(0610- )XZU308,338,348,508,538,548
ｻｽﾍﾟﾝｼｮﾝ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX | ||||
| 51065-37030 |
XZU308,338,348,508,538,548 |
1 | ||
| 51101A - RAIL SUB-ASSY, FRONT FRAME SIDE, RH | ||||
| 51101-37100 |
XZU308,338,348,508,538,548 |
1 | ||
| 51102A - RAIL SUB-ASSY, FRONT FRAME SIDE, LH | ||||
| 51102-37100 |
XZU308,338,348,508,538,548 |
1 | ||
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-37160 |
XZU308,338,348,508,538,548 |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-37210 |
XZU308,338,348,508,538,548 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37050 |
XZU308,338,348,508,538,548 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37040 |
XZU308,338,348,508,538,548 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37050 |
XZU308,338,348,508,538,548 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37080 |
XZU308,338,348,508,538,548 NO.1 |
1 | ||
| 51508-37100 |
XZU308,338,348,508,538,548 NO.2 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37080 |
XZU308,338,348,508,538,548 NO.1 |
1 | ||
| 51508-37100 |
XZU308,338,348,508,538,548 NO.2 |
1 | ||
| 51508D - SUPPORT SUB-ASSY, STABILIZER, RH | ||||
| 51508-37090 |
XZU308,338,348,508,538,548 |
1 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-37090 |
XZU308,338,348,508,538,548 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XZU308,338,348,508,538,548 NO.1 |
1 | ||
| 51509-37100 |
XZU308,338,348,508,538,548 NO.2 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XZU308,338,348,508,538,548 NO.1 |
1 | ||
| 51509-37100 |
XZU308,338,348,508,538,548 NO.2 |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51607-37010 |
XZU308,338,348,508,538,548 |
1 | ||
| Common parts | ||||
| 51751-37150 | ||||
| 90119-14133 | ||||
| 90179-16029 | ||||
| 91672-L1470 | ||||
| 91672-L1495 | ||||
ILLUST NO. 4 OF 4(0610- )
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37610 |
BZU340,TRU340,XZU34#,548..(5F,6FC)..(20T,30T) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37610 |
BZU340,TRU340,XZU34#,548..(5F,6FC)..(20T,30T) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
BZU340,TRU340,XZU34#,388,548 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 51569-37370 |
TRU340,XZU348,548..T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
BZU340,TRU340,XZU34#,388,548 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 51569-37370 |
TRU340,XZU348,548..T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
BZU340,TRU340,XZU34#,388,548 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 51569-37370 |
TRU340,XZU348,548..T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
BZU340,TRU340,XZU34#,388,548 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 51569-37370 |
TRU340,XZU348,548..T3,T4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90179-08233 | ||||
