XZU524D-TMMMB3 (2006)
Toyota Dyna/Toyoace

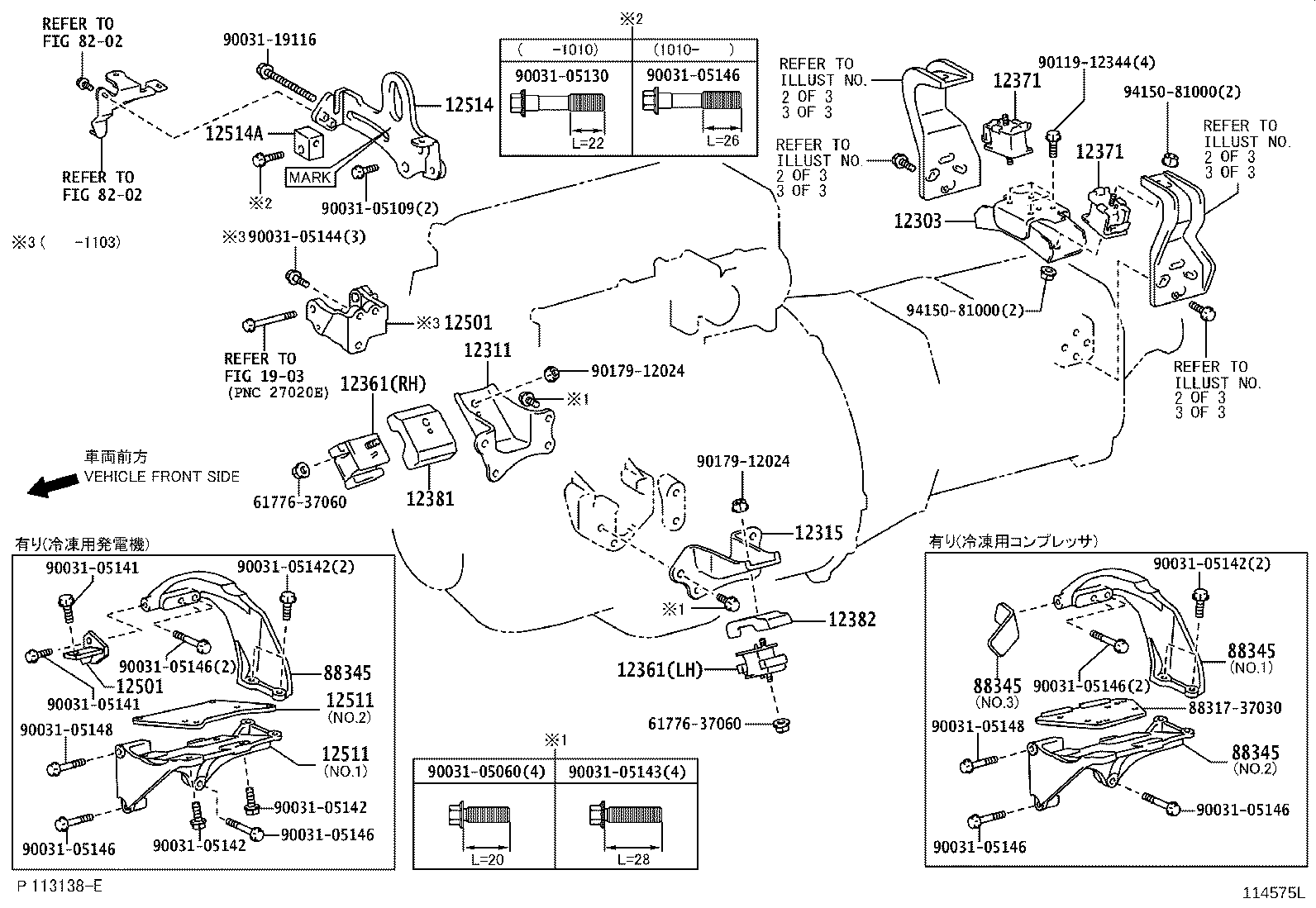

ILLUST NO. 1 OF 3(0610- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78030 |
N04C..XZU324,524;N04C..XZU304,334..5F..IV4;N04C..XZU30#,33#,34#..(6F,6FC)..(DCRTK,DCRUE) |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78060 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78040 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XZU304,314,324,334,344,354,368,378,388,504,524,554,568 右側 & 左側 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XZU304,314,324,334,344,354,368,378,388,504,524,554,568 右側 & 左側 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12511-78120 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12511-78120 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78140 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..CBU,IV3,IV6,IV7 ﾏｰｸ=001 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78020 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 PNC 12514=ﾏｰｸ 001 OR 002 OR 003 OR 004 |
1 | ||
| Common parts | ||||
| 61776-37060 | ||||
| 88317-37030 | ||||
| 90031-05060 | ||||
| 90031-05109 | ||||
| 90031-05130 | ||||
| 90031-05141 | ||||
| 90031-05142 | ||||
| 90031-05143 | ||||
| 90031-05144 | ||||
| 90031-05146 | ||||
| 90031-05148 | ||||
| 90031-19116 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8202 | ||||

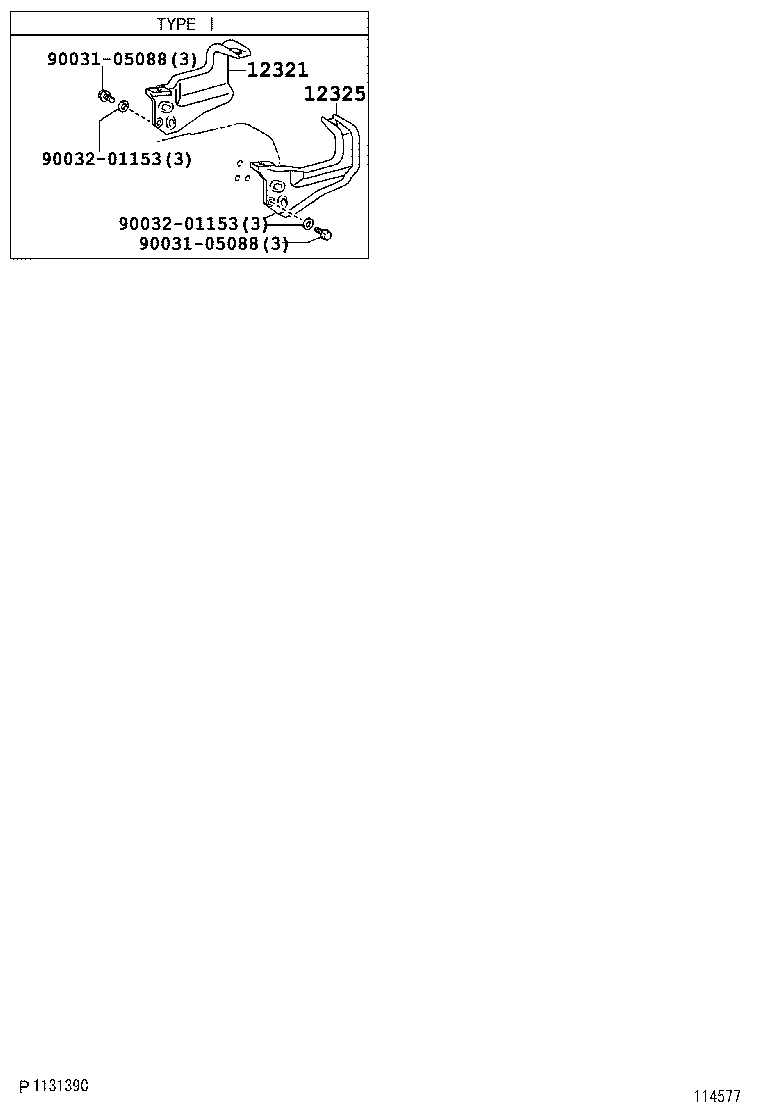

ILLUST NO. 3 OF 3(0610- )N04C..XZU324,524..5F ; (1003- )N04C..XZU30#,324,33#,34#..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78440 |
N04C..XZU324,524;N04C..XZU30#,33#,34#..6F TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78410 |
N04C..XZU324,524;N04C..XZU30#,33#,34#..6F TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90031-05088 | ||||
| 90032-01153 | ||||

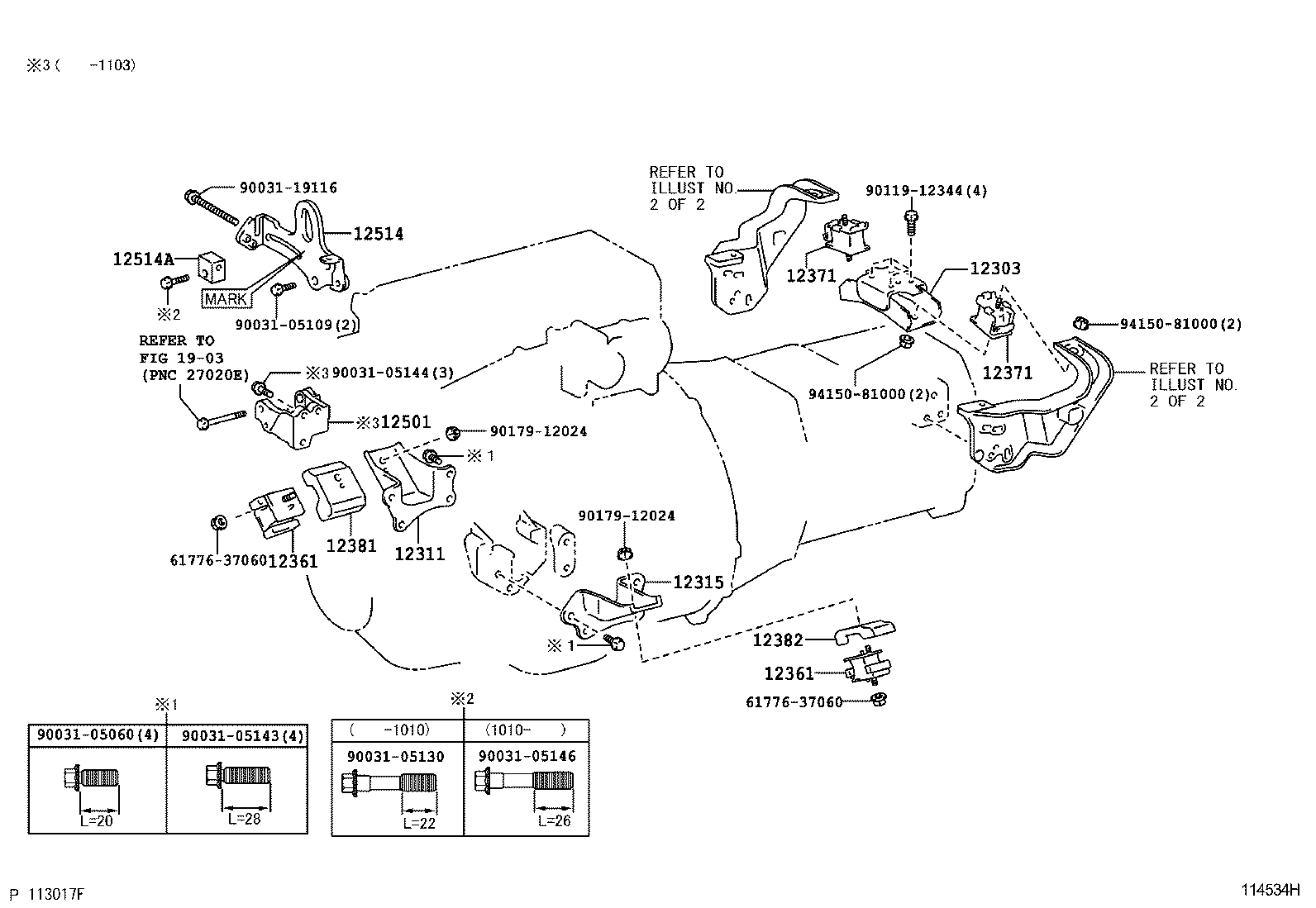

ILLUST NO. 1 OF 2(0610- )N04C..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61776-37060 | ||||
| 90031-05060 | ||||
| 90031-05109 | ||||
| 90031-05130 | ||||
| 90031-05143 | ||||
| 90031-05144 | ||||
| 90031-05146 | ||||
| 90031-19116 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||

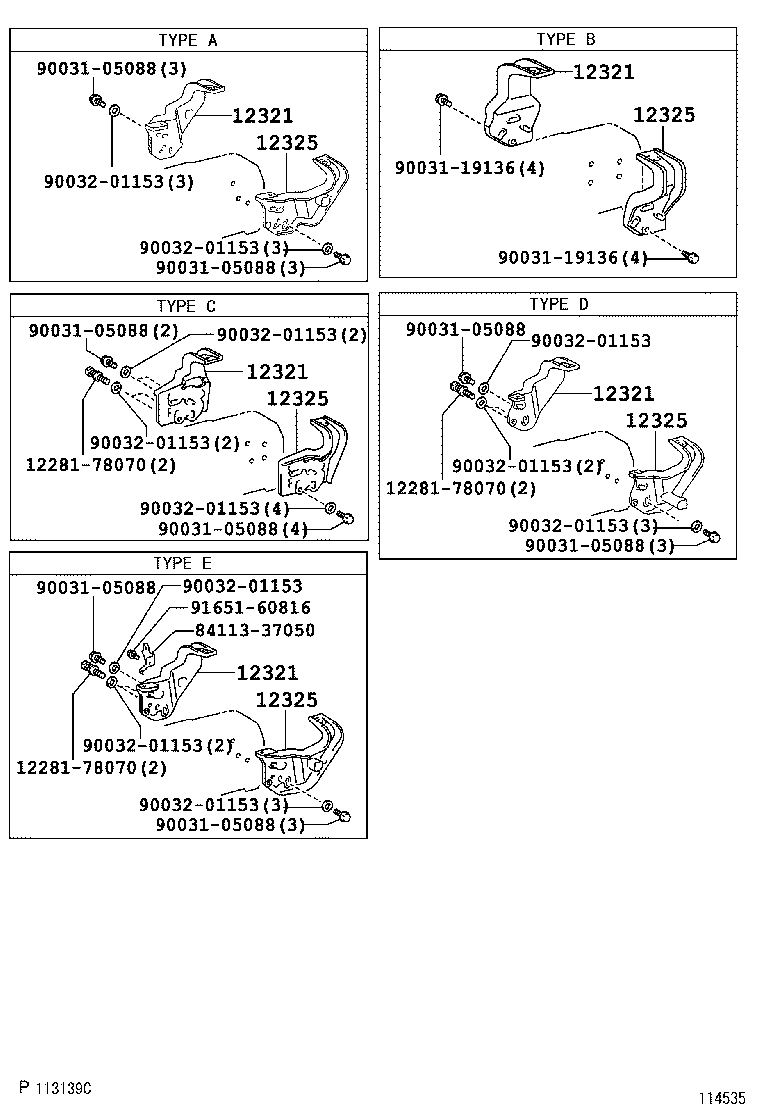

ILLUST NO. 2 OF 2(0610- )N04C..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12281-78070 | ||||
| 84113-37050 | ||||
| 90031-05088 | ||||
| 90031-19136 | ||||
| 90032-01153 | ||||
| 91651-60816 | ||||
