XZU524D-TMMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jan 2008
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

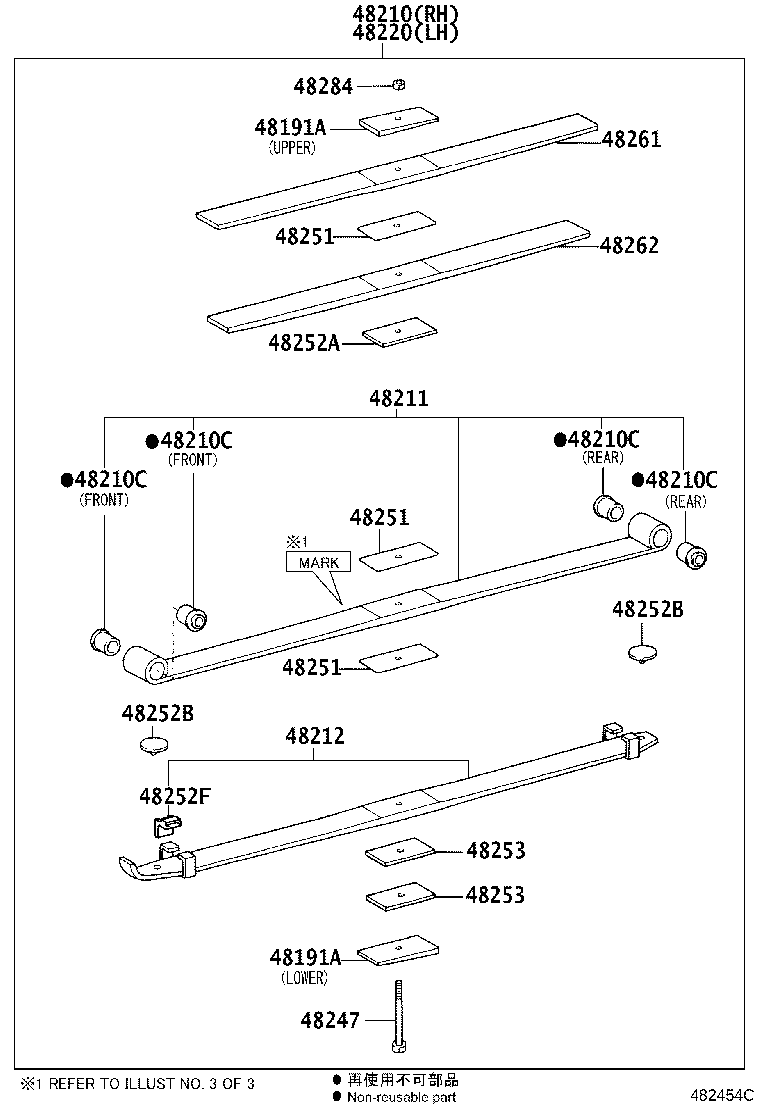

ILLUST NO. 2 OF 3(0610- )XZU324,524..20T

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF

diagram 48191A 48191A 48210 48210C 48210C 48210C 48210C 48211 48212 48220 48247 48251 48251 48251 48252A 48252B 48252B 48252F 48253 48253 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37040

XZU324,524

下側

 2
48192-37020

XZU324,524

上側

 2
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37040

XZU324,524

下側

 2
48192-37020

XZU324,524

上側

 2
48210 - SPRING ASSY, REAR RH
48210-37C00

XZU524

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,厚さ=118.0

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5

ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5

ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5

ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5

ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
48211 - LEAF, REAR SPRING, NO.1
48201-37C00

XZU524

 2
48212 - LEAF, REAR SPRING, NO.2
48202-37C00

XZU524

 2
48220 - SPRING ASSY, REAR LH
48210-37C00

XZU524

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,厚さ=118.0

 1
48247 - BOLT, REAR SPRING, CENTER
48247-37C10

XZU324,524..20T

 2
48251 - SPACER, REAR SPRING LEAF
48251-36530

XZU504..DCRUD;XZU538..DCRTH,DCRTJ;XZU304..T5..20T..DCRTJ;XZU308..DCB..DCRTJ..IV3;XZU508..6FC..DCRTH..IV3;XZU308..(DCRTH,DCRTM)..IV3;XZU508..T5..(DCRUD,DCRUE)..CBU;XZU508..(T2,T5)..5F..DCRTH..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ)..CBU;XZU308,508..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRTM)..(CBU,IV6);BZU300,TRU300,500,XZU324,338,524..(DM7,T2,T4)..(5F,6FC)..20T;XZU308,508..(T2,T5)..(5F,6FC)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3

 6
48251 - SPACER, REAR SPRING LEAF
48251-36530

XZU504..DCRUD;XZU538..DCRTH,DCRTJ;XZU304..T5..20T..DCRTJ;XZU308..DCB..DCRTJ..IV3;XZU508..6FC..DCRTH..IV3;XZU308..(DCRTH,DCRTM)..IV3;XZU508..T5..(DCRUD,DCRUE)..CBU;XZU508..(T2,T5)..5F..DCRTH..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ)..CBU;XZU308,508..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRTM)..(CBU,IV6);BZU300,TRU300,500,XZU324,338,524..(DM7,T2,T4)..(5F,6FC)..20T;XZU308,508..(T2,T5)..(5F,6FC)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3

 6
48251 - SPACER, REAR SPRING LEAF
48251-36530

XZU504..DCRUD;XZU538..DCRTH,DCRTJ;XZU304..T5..20T..DCRTJ;XZU308..DCB..DCRTJ..IV3;XZU508..6FC..DCRTH..IV3;XZU308..(DCRTH,DCRTM)..IV3;XZU508..T5..(DCRUD,DCRUE)..CBU;XZU508..(T2,T5)..5F..DCRTH..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ)..CBU;XZU308,508..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRTM)..(CBU,IV6);BZU300,TRU300,500,XZU324,338,524..(DM7,T2,T4)..(5F,6FC)..20T;XZU308,508..(T2,T5)..(5F,6FC)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3

 6
48252A - SPACER, REAR SPRING, NO.2
48214-3B070

XZU324,348,524..(DM7,T2)..20T

 2
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT

 4
48252F - SILENCER, REAR SPRING, NO.3
48252-37380

BZU300,XZU304,324,524..(DM6,DM7)..20T;BZU340,TRU340,XZU34#,378,388,548..20T

 8
48253 - SPACER, REAR SPRING, NO.1
48253-36530

XZU324,524..20T

 4
48253 - SPACER, REAR SPRING, NO.1
48253-36530

XZU324,524..20T

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C00

XZU524

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-37C00

XZU524

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

XZU504..ST;BZU340,TRU340,XZU324,34#,378,388,524,548..20T

 2

ILLUST NO. 1 OF 3(0610- )XZU324,524

Click highlighted areas on diagram

diagram 48042 48046 48046A 48046A 48047 48210Q 48210Q 48344 48422A 48435 48435 48481 48530 48530A 48530A 48530B 48530B 48533 48533A 48540 9010516021 9010516021 9010516075 9011908336 9011912088 9011912088 9017016016 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 9020116035 91645C1032 9413061600 9418461001 9418461001
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-37150

XZU524

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16144

XZU524

長さ=285

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16144

XZU524

長さ=285

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-37150

XZU524

 1
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 4
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 4
48344 - STOPPER, BUMPER, REAR
48344-37230

XZU324,524

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

 2
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-37010

XZU324,524

 4
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-37010

XZU324,524

 4
48481 - SEAT, REAR SPRING, UPPER
48481-37110

XZU524

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80746

XZU324,524

ﾏｰｸ 48531−37230

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 4
48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48522-37030

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

 1
48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48522-37030

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80746

XZU324,524

ﾏｰｸ 48531−37230

 1
Common parts
90105-16021
90105-16075
90119-08336
90119-12088
90170-16016
90179-16030
90201-16035
91645-C1032
94130-61600
94184-61001

ILLUST NO. 3 OF 3(0610- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48217 48220 48220 48220 48241 48241 48241 48242 48242 48242 48247 48247 48247 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48281 48281 48281 9411041000 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100818 9511100818 9511100820 9511100822 9511100822 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00820
95111-00822

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48217 48220 48220 48241 48241 48242 48242 48247 48247 48261 48261 48262 48262 48263 48263 48264 48265 48265 48266 48266 48267 48281 48281 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00822
