XZU524D-TMMMB3 (2006)
Toyota Dyna/Toyoace
ILLUST NO. 4 OF 4(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37040 |
XZU50#,524,538,548,554..5F..WT ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 44050-37060 |
XZU50#,524,538,548,554..WT |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37030 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
ILLUST NO. 1 OF 4(0610- )XZU524,554
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37530 |
XZU50#,524,538,548,554..WT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37570 |
TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47319A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47313-37530 |
XZU50#,524,538,548,554..WT |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37500 |
XZU50#,524,538,548,554..WT NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37500 |
XZU50#,524,538,548,554..WT NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37500 |
XZU50#,524,538,548,554..WT NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37550 |
XZU314,324,354,524,554..4NO |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37330 |
XZU314,324,354,524,554..4NO |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU314,324,354,368,378,388,524,554,568..20T,30T NO.2 |
1 | ||
| 47391-37300 |
XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU314,324,354,368,378,388,524,554,568..20T,30T NO.2 |
1 | ||
| 47391-37300 |
XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00447 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90480-01628 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 90959-01622 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||

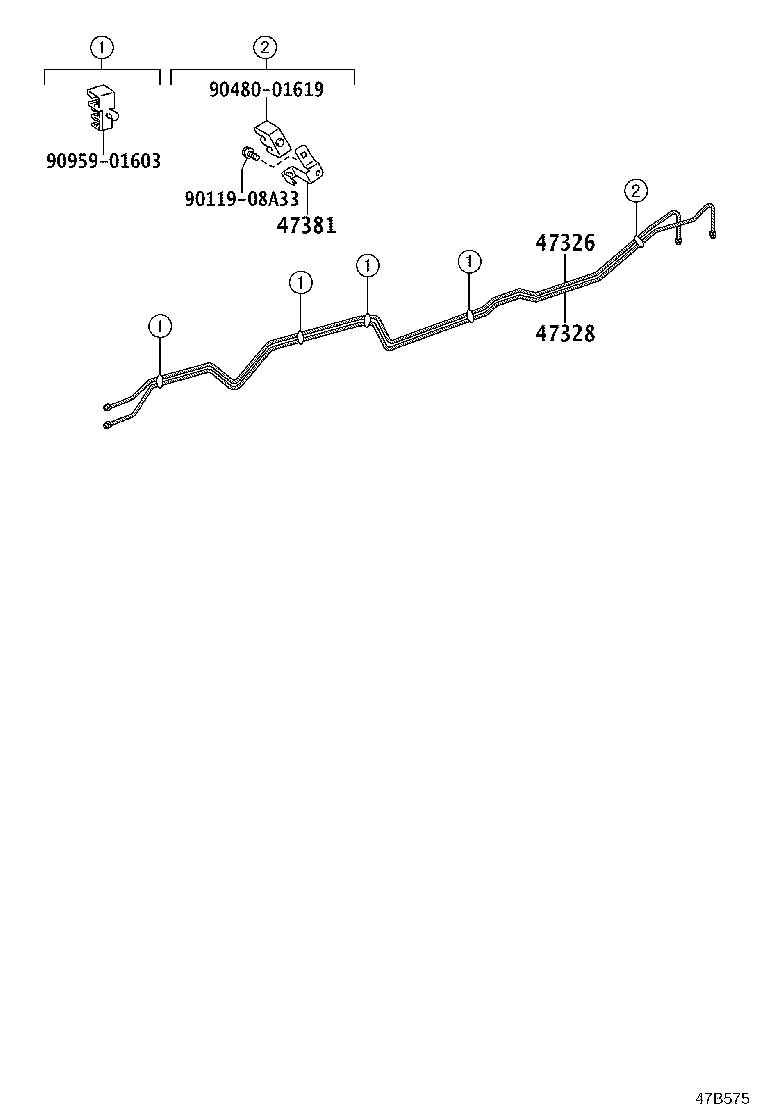

ILLUST NO. 2 OF 4(0610- )XZU324,524
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37530 |
XZU324,524 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37380 |
XZU324,524 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37070 |
XZU324,368,524,568..DM5,DM7 |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90480-01619 | ||||
| 90959-01603 | ||||
ILLUST NO. 3 OF 4(0610- )XZU324,524
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

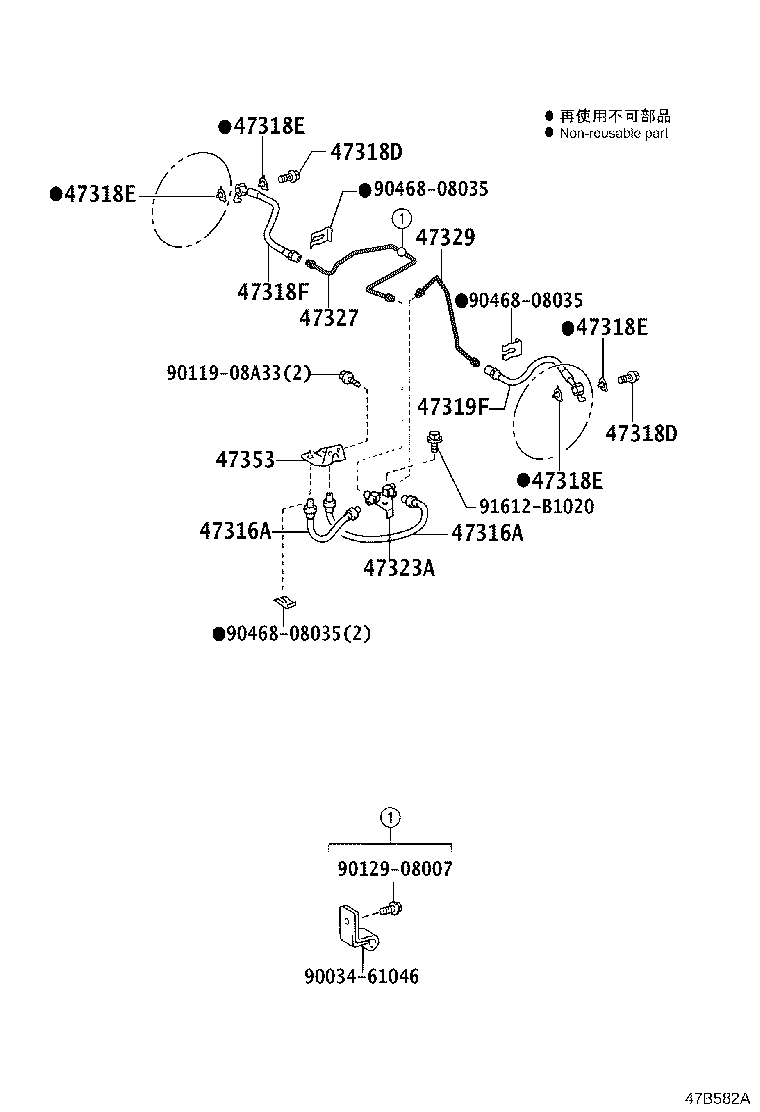

| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B74 |
XZU524 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B74 |
XZU524 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F00 |
XZU314,324,354,368,524,554,568..DM5,DM7 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F01 |
XZU314,324,354,368,524,554,568..DM5,DM7 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12052 |
XZU324,524 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37840 |
XZU524 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37620 |
XZU524 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37120 |
XZU324,524 |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91612-B1020 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91131-50840 | ||||
| 91611-40816 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06009 | ||||
| 90461-06178 | ||||
| 90461-06487 | ||||
| 90461-08058 | ||||
| 90461-10076 | ||||
| 90461-10625 | ||||
| 90461-12124 | ||||
| 90462-10033 | ||||
| 90480-01047 | ||||
| 90480-08343 | ||||
| 90949-01006 | ||||
| 90949-01019 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 91611-40812 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-60614 | ||||
| 91615-41040 | ||||
| 91616-40820 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91661-40614 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
