XZU524D-TMMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jan 2008
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU314,324,354,524,554..4NO

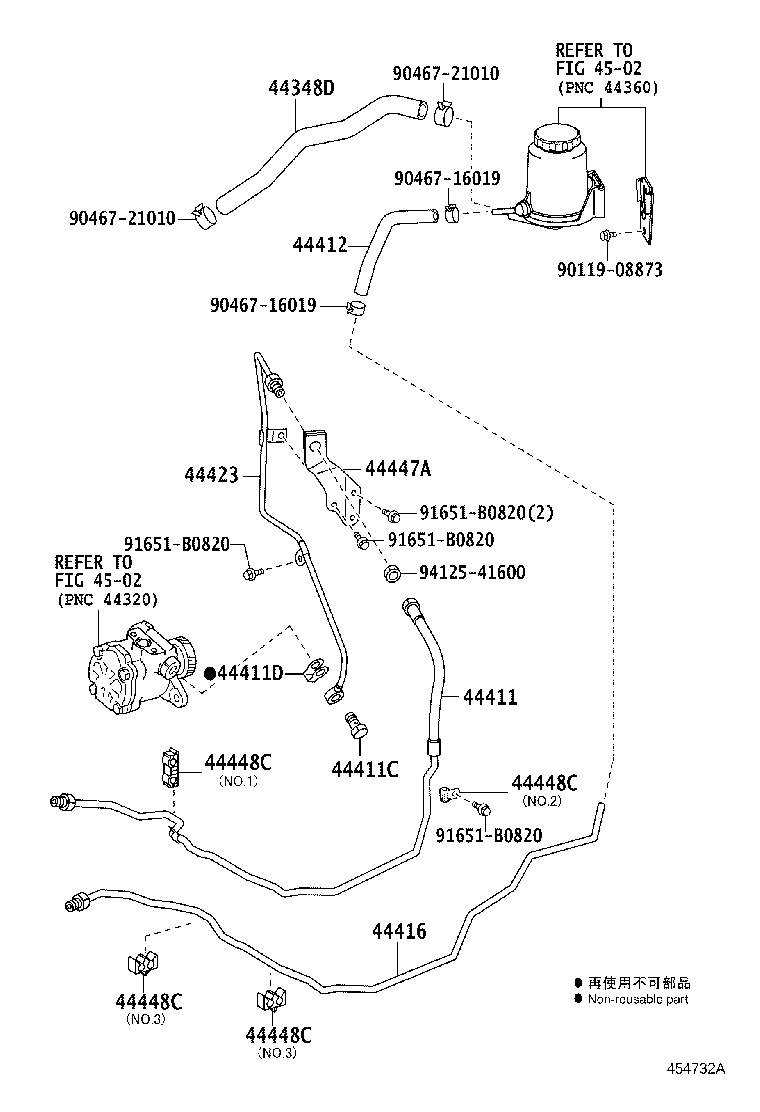

Click highlighted areas on diagram

diagram 44348D 44411 44411C 44411D 44412 44416 44423 44447A 44448C 44448C 44448C 44448C 4502 4502 9011908873 9046716019 9046716019 9046721010 9046721010 91651B0820 91651B0820 91651B0820 91651B0820 9412541600
Part # Description Qty Price
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37400

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
44411 - HOSE, PRESSURE FEED
44411-37400

XZU314,324,354,524,554..4NO

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44412 - HOSE, RETURN
44412-37230

XZU304..(T4,T5)..20T;XZU308,314,324,338,34#,354,50#,524,538,548,554..20T,30T

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37610

XZU314,324,354,524,554..4NO

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37110

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37220

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060

BZU300,340,XZU304,314,324,334,344,354,504,524,554

NO.2

 1
44448-37030

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.1

 1
44448-37080

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.3

 2
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060

BZU300,340,XZU304,314,324,334,344,354,504,524,554

NO.2

 1
44448-37030

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.1

 1
44448-37080

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.3

 2
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060

BZU300,340,XZU304,314,324,334,344,354,504,524,554

NO.2

 1
44448-37030

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.1

 1
44448-37080

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.3

 2
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060

BZU300,340,XZU304,314,324,334,344,354,504,524,554

NO.2

 1
44448-37030

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.1

 1
44448-37080

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

NO.3

 2
Common parts
90119-08873
90467-16019
90467-21010
91651-B0820
94125-41600
Linked diagrams
4502
