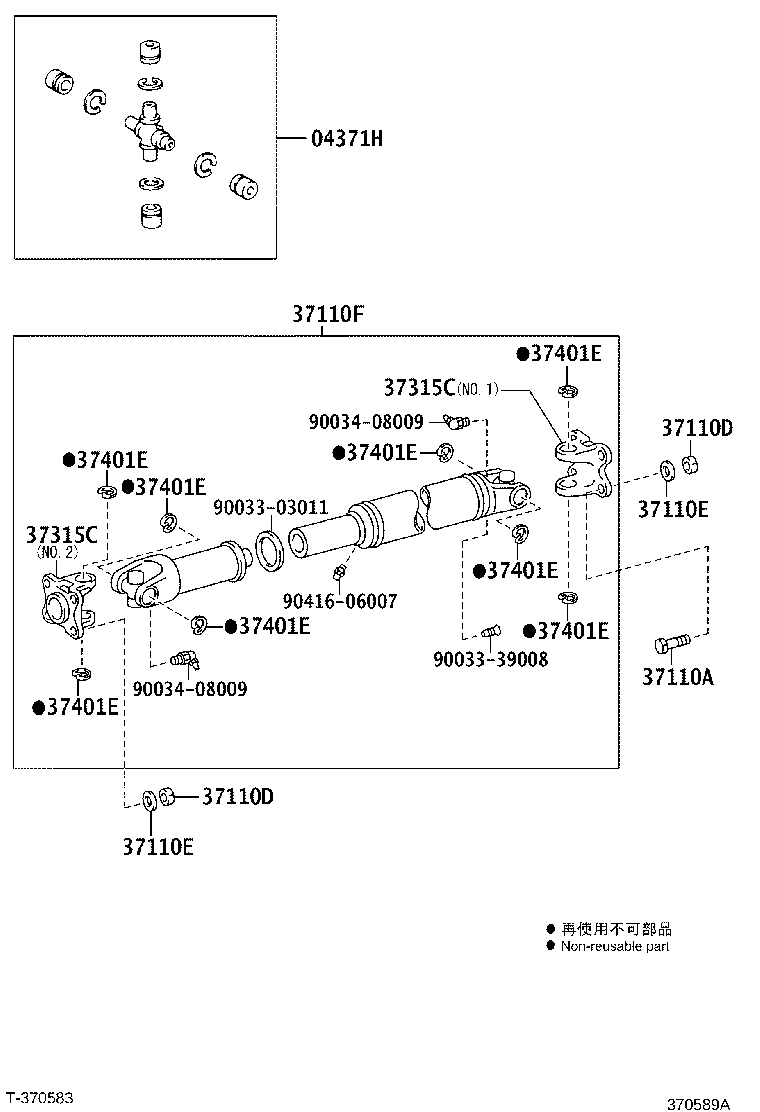

XZU524D-TMMMB3 (2006)
Toyota Dyna/Toyoace
(0610- )XZU524,538 ; (0610- )XZU338..T2 ;(0610- )XZU338..DCRTH ; (0610-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
BZU340,TRU340,XZU34#,388,548;XZU50#,524,538,554..(DM5,DM7,T4,T5)..5F..WT..(DCRTH,DCRTJ) |
3 | ||
| 04371-37080 |
BZU340,TRU340,XZU34#,388,548;XZU50#,524,538,554..(DM5,DM7,T4,T5)..5F..WT..(DCRTH,DCRTJ) |
3 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90031-01165 |
XZU50#,524,538,548,554..(DM5,DM7,T3,T4,T5)..5F..WT *12−1.25PX35−17 |
4 | ||
| 90031-01165 |
XZU50#,524,538,548,554..(DM5,DM7,T3,T4,T5)..5F..WT *12−1.25PX35−17 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 90170-12005 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 90170-12005 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 94512-01200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 94512-01200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37E10 |
XZU314,324,524..5F |
1 | ||
| 37110-37E10 |
XZU314,324,524..5F |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37050 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.1 |
1 | ||
| 37315-37050 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.1 |
1 | ||
| 37315-37070 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.2 |
1 | ||
| 37315-37070 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.2 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37050 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.1 |
1 | ||
| 37315-37050 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.1 |
1 | ||
| 37315-37070 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.2 |
1 | ||
| 37315-37070 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) NO.2 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.62 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.68 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.53 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.56 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.59 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU30#,33#..6F;XZU314,324,354,368,378,524,554,568..MTM..(20T,30T) 厚さ=1.50 |
4 | ||
| Common parts | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08009 | ||||
| 90416-06007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
