XZU524D-TMMMB (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jan 2008
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0610- )BZU300,340,XZU324,354,524,554..DM5,DM7,T4..20T

Click highlighted areas on diagram

2-LEAF

diagram 48110 48110F 48110F 48110F 48111 48112 48120 48147 48147A 48153 48153 48153A 48153A 48251B 48251B 48251B 48252D 48252D 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37A00

XZU324,354,524,554..20T

2枚ﾘｰﾌ

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4)

ﾌﾛﾝﾄ

 2
90389-16026

XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4)

ﾌﾛﾝﾄ

 2
90389-16026

XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4)

ﾌﾛﾝﾄ

 2
90389-16026

XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37A10

XZU324,354,524,554..20T

助手席側

 1
48101-37A00

XZU324,354,524,554..20T

運転席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48102-37A10

XZU324,354,524,554..20T

助手席側

 1
48102-37A00

XZU324,354,524,554..20T

運転席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37A10

XZU324,354,524,554..20T

2枚ﾘｰﾌ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37300

TRU300,340,500,XZU324,354,524,554..SCB..(DM5,DM7,T4)..20T

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU324,354,524,554..20T

 4
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU324,354,524,554..20T

 4
48153A - SILENCER, FRONT SPRING, NO.1
48252-37670

XZU524,554..5F..DCRTJ;XZU324,354..20T..DCRUE

 4
48153A - SILENCER, FRONT SPRING, NO.1
48252-37670

XZU524,554..5F..DCRTJ;XZU324,354..20T..DCRUE

 4
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

BZU300,340,XZU324,354,524,554..(DM5,DM7,T4)..20T

 6
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

BZU300,340,XZU324,354,524,554..(DM5,DM7,T4)..20T

 6
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

BZU300,340,XZU324,354,524,554..(DM5,DM7,T4)..20T

 6
48252D - SILENCER
48252-37380

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T

 8
48252D - SILENCER
48252-37380

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48253-3B770

XZU304..DM3;XZU304..T4..30T;BZU300,340,XZU324,354,524,554..(DM5,DM7,T4)..20T

 2

ILLUST NO. 3 OF 3(0610- )XZU524,554..DCRTJ ; (0610- )BZU300,340,TRU300,340,500,XZU304,314,324,

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 3(0610- )XZU304,334..IV4 ; (0610- )XZU324,354..20T ; (0610- )XZU524,554..DC

Click highlighted areas on diagram

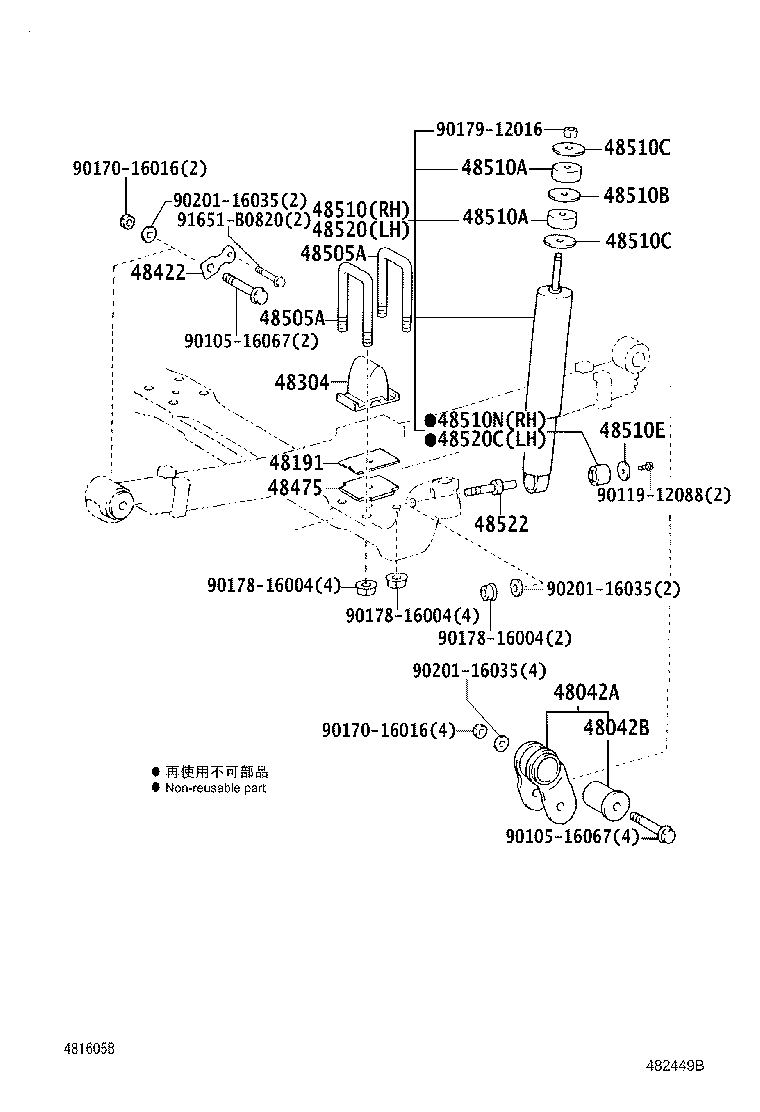

diagram 48042A 48042B 48191 48304 48422 48475 48505A 48505A 48510 48510A 48510A 48510B 48510C 48510C 48510E 48510N 48520 48520C 48522 9010516067 9010516067 9011912088 9017016016 9017016016 9017816004 9017816004 9017816004 9017912016 9020116035 9020116035 9020116035 91651B0820
Part # Description Qty Price
48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2
48042-37020

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 2
48042B - BUSH, FRONT SPRING NO.2 SHACKLE
90389-16026

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 4
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-37060

XZU354..4NO;BZU300,340,TRU300,340,500,XZU304,314,324,334,344,504,524,554

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-37040

XZU304..DM3,DM6,T3,T4;XZU304,324..(DM7,T5)..20T;BZU300,340,TRU300,340,500,XZU334,344,354,504,524,554

 2
48422 - SUPPORT, FRONT SPRING PIN
48422-37010

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 2
48475 - PLATE, DISTANCE(FOR FRONT)
48475-36070

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
48505A - BOLT, U(FOR FRONT SPRING)
90117-16080

XZU524,554..5F

長さ=130,ｱﾘ(PNC 48475)

 1
90117-16066

XZU524,554;XZU324,354..20T..(DCRTJ,DCRTK)

長さ=120,ﾅｼ(PNC 48475)

 4
90117-16066

XZU524,554..5F

長さ=120,ｱﾘ(PNC 48475)

 3
48505A - BOLT, U(FOR FRONT SPRING)
90117-16080

XZU524,554..5F

長さ=130,ｱﾘ(PNC 48475)

 1
90117-16066

XZU524,554;XZU324,354..20T..(DCRTJ,DCRTK)

長さ=120,ﾅｼ(PNC 48475)

 4
90117-16066

XZU524,554..5F

長さ=120,ｱﾘ(PNC 48475)

 3
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80120

BZU300,340,XZU304,324,344,354,504,524,554..(DM3,DM5,DM7,T3,T4,T5)..(20T,40T)..WT

ﾏｰｸ 48511−37230

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01071

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01071

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02054

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02009

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02009

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 4
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03011

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 2
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-19011

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80120

BZU300,340,XZU304,324,344,354,504,524,554..(DM3,DM5,DM7,T3,T4,T5)..(20T,40T)..WT

ﾏｰｸ 48511−37230

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-19011

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48522-37030

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 2
Common parts
90105-16067
90119-12088
90170-16016
90178-16004
90179-12016
90201-16035
91651-B0820
