XZU508V-REMMA (2006)
Toyota Dyna/Toyoace

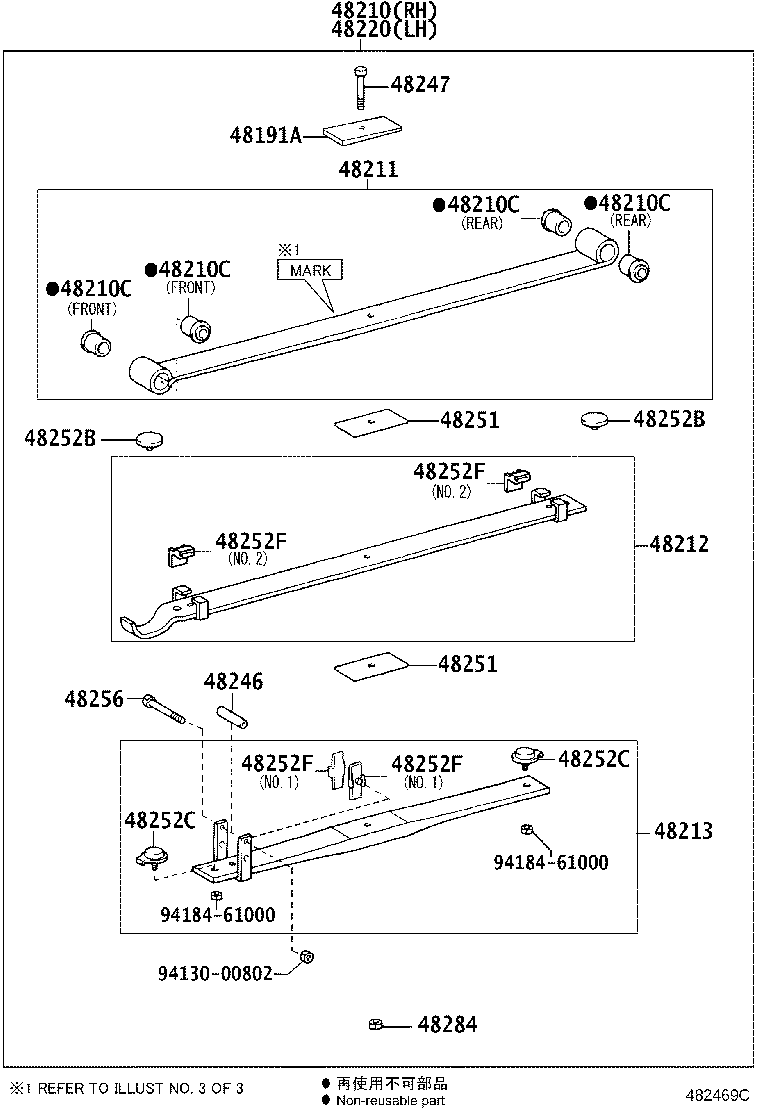

ILLUST NO. 2 OF 3(0610- )VAN
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XZU508..VAN |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37620 |
XZU508..VAN 3枚ﾘｰﾌ,厚さ=64.0 |
1 | ||
| 48210-37621 |
XZU508..VAN 3枚ﾘｰﾌ,厚さ=64.0 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37620 |
XZU508..VAN |
2 | ||
| 48201-37621 |
XZU508..VAN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37620 |
XZU508..VAN |
2 | ||
| 48202-37621 |
XZU508..VAN |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-37620 |
XZU508..VAN |
2 | ||
| 48203-37621 |
XZU508..VAN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37620 |
XZU508..VAN 3枚ﾘｰﾌ,厚さ=64.0 |
1 | ||
| 48210-37621 |
XZU508..VAN 3枚ﾘｰﾌ,厚さ=64.0 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37880 |
TRU500,XZU308,338,354,508,554..03S,06S,DM5,T2 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU368;XZU324..30T;XZU308..5F..DCRUE;BZU340,TRU340,XZU34#,378,388,548,568..20T;BZU300,XZU304,354,508,554..03S,06S,DM5,DM6 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU368;XZU324..30T;XZU308..5F..DCRUE;BZU340,TRU340,XZU34#,378,388,548,568..20T;BZU300,XZU304,354,508,554..03S,06S,DM5,DM6 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,T2,T4,T5)..WT |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,T2,T4,T5)..WT |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37880 |
XZU504..ST..IV3;XZU338,354,554..DM5,T2;XZU508..6FC..DCRTH..IV3;XZU308,508..T2..DCRTJ..IV3;XZU504..(DCRTH,DCRTJ)..CBU;XZU508..T2..5F..DCRTH..IV3;XZU308..DCB..(DCRTH,DCRTJ)..IV3;BZU300,TRU300,500..(T2,T4)..20T;XZU30#,508..(03S,06S,T2,T4)..20T..(DCRTH,DCRTJ)..(CBU,IV6) NO.1 |
4 | ||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37880 |
XZU504..ST..IV3;XZU338,354,554..DM5,T2;XZU508..6FC..DCRTH..IV3;XZU308,508..T2..DCRTJ..IV3;XZU504..(DCRTH,DCRTJ)..CBU;XZU508..T2..5F..DCRTH..IV3;XZU308..DCB..(DCRTH,DCRTJ)..IV3;BZU300,TRU300,500..(T2,T4)..20T;XZU30#,508..(03S,06S,T2,T4)..20T..(DCRTH,DCRTJ)..(CBU,IV6) NO.1 |
4 | ||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37880 |
XZU504..ST..IV3;XZU338,354,554..DM5,T2;XZU508..6FC..DCRTH..IV3;XZU308,508..T2..DCRTJ..IV3;XZU504..(DCRTH,DCRTJ)..CBU;XZU508..T2..5F..DCRTH..IV3;XZU308..DCB..(DCRTH,DCRTJ)..IV3;BZU300,TRU300,500..(T2,T4)..20T;XZU30#,508..(03S,06S,T2,T4)..20T..(DCRTH,DCRTJ)..(CBU,IV6) NO.1 |
4 | ||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37880 |
XZU504..ST..IV3;XZU338,354,554..DM5,T2;XZU508..6FC..DCRTH..IV3;XZU308,508..T2..DCRTJ..IV3;XZU504..(DCRTH,DCRTJ)..CBU;XZU508..T2..5F..DCRTH..IV3;XZU308..DCB..(DCRTH,DCRTJ)..IV3;BZU300,TRU300,500..(T2,T4)..20T;XZU30#,508..(03S,06S,T2,T4)..20T..(DCRTH,DCRTJ)..(CBU,IV6) NO.1 |
4 | ||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU324..30T;BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
| 94184-61000 | ||||

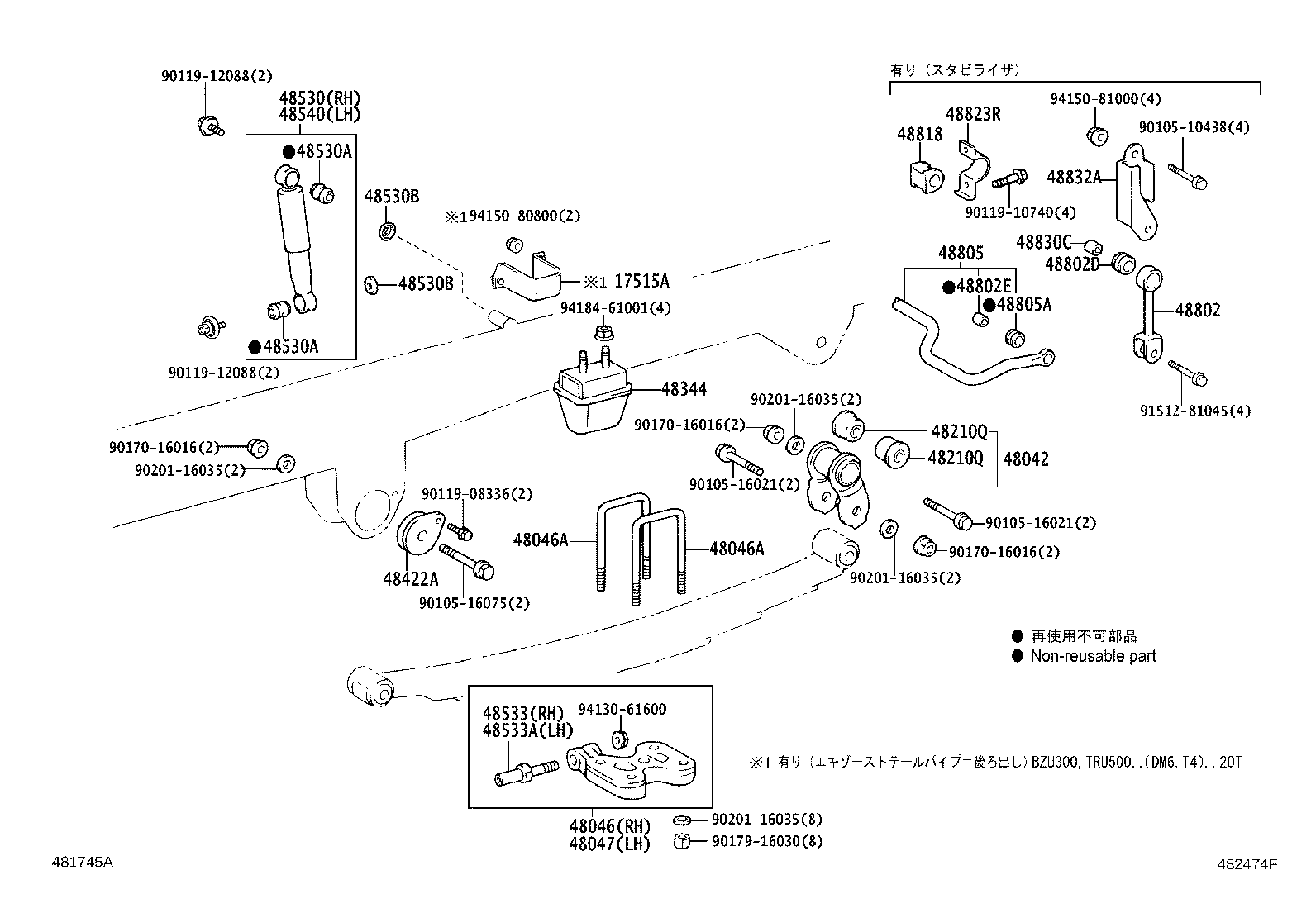

ILLUST NO. 1 OF 3(0610- )XZU368,568..T4 ; (0610- )BZU300,TRU300,500,XZU30#,338,50#,538..03S,06
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37090 |
XZU338..T2;BZU300,TRU300,500,XZU30#,50#..(03S,06S,DM5,T2,T4)..20T..(DCRTH,DCRTJ,EFI,LPG) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16011 |
XZU338,554..(DM5,T2)..DCRTJ;BZU300,TRU300,500,XZU30#,50#..(03S,06S,T2,T4)..20T..(DCRTH,DCRTJ,EFI,LPG) 長さ=220 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16011 |
XZU338,554..(DM5,T2)..DCRTJ;BZU300,TRU300,500,XZU30#,50#..(03S,06S,T2,T4)..20T..(DCRTH,DCRTJ,EFI,LPG) 長さ=220 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37090 |
XZU338..T2;BZU300,TRU300,500,XZU30#,50#..(03S,06S,DM5,T2,T4)..20T..(DCRTH,DCRTJ,EFI,LPG) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37080 |
XZU508..VAN |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80684 |
XZU508..VAN ﾏｰｸ 48531−37120 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80684 |
XZU508..VAN ﾏｰｸ 48531−37120 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
XZU348,368,548,568..SCB..(T2,T3,T4);BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
XZU348,368,548,568..SCB..(T2,T3,T4);BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
XZU348,368,548,568..SCB..(T2,T3,T4);BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37030 |
XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
XZU348,368,548,568..SCB..(T2,T3,T4);BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48815-37060 |
XZU348,368,548,568..SCB..(T2,T3,T4);BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37011 |
XZU348,368,548,568..SCB..(T2,T3,T4);BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
XZU348,368,548,568..SCB..(T2,T3,T4);BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37020 |
XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 94130-61600 | ||||
| 94150-80800 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||
ILLUST NO. 3 OF 3(0610- )
| Part # | Description | Qty | Price |
|---|
