XZU508V-REMMA (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0610- )N04C..XZU304,314,324,33#,344,354,368,378,388,50#,524,538,548,554,568

Click highlighted areas on diagram

diagram 23921 23921 23921 23921 23921 23921 23921 23921 23925 9017908038 9017908038 9017908038 9017908038 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825
Part # Description Qty Price
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90179-08038
91651-B0825

ILLUST NO. 2 OF 3(0610- )N04C..DCRTH,DCRTJ,DCRTK ; (0912- )N04C..XZU308,348..DCB..DCRUE

Click highlighted areas on diagram

diagram 23921 9017908038 91651B0825
Part # Description Qty Price
23921 - SUPPORT, FUEL FILTER
23921-78080

N04C..XZU508..VAN

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90179-08038
91651-B0825

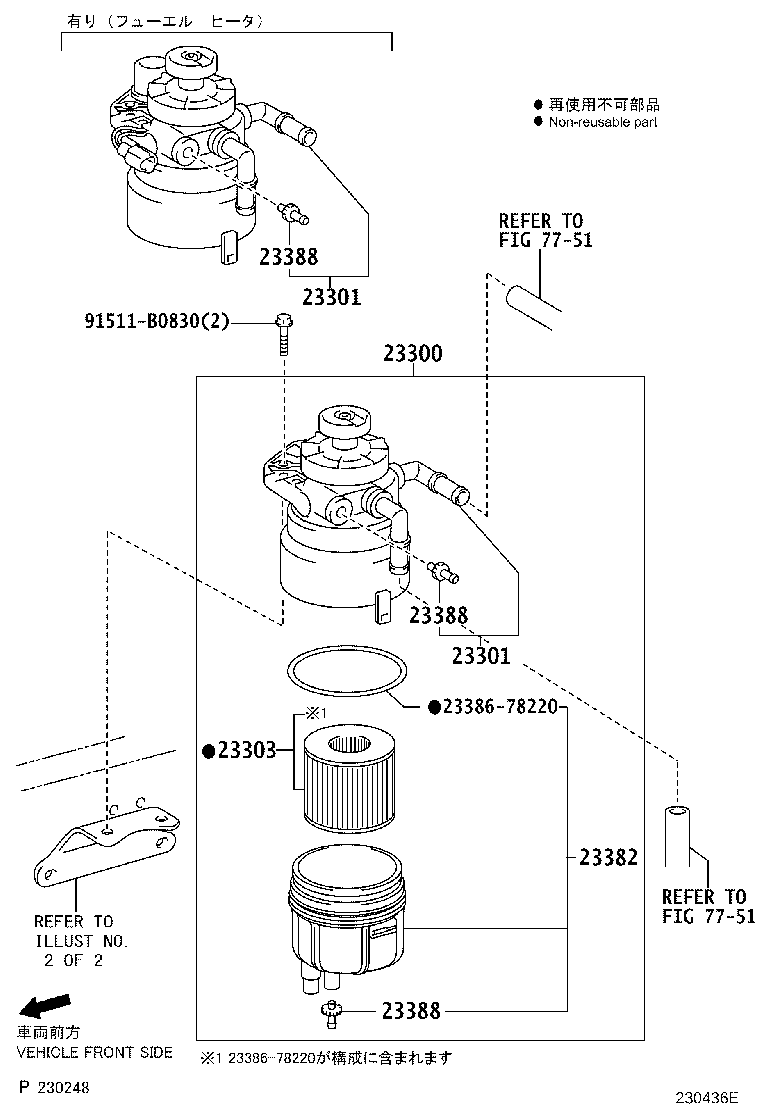

ILLUST NO. 1 OF 3(0610- )N04C..XZU508..VAN ; (0610- )N04C..XZU304,334,378..IV4

Click highlighted areas on diagram

diagram 23300 23301 23301 23303 23382 2338678220 23388 23388 23388 7751 7751 91511B0830
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-78262

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23300-78261

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23300-78251

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

 1
23300-78252

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23301-78261

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23301-78252

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

 1
23301-78251

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

 1
23301-78262

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23301-78261

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23301-78252

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

 1
23301-78251

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

 1
23301-78262

N04C..XZU508..VAN;N04C..XZU304,334,378..IV4

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-78221

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
23382 - CASE, FUEL FILTER
23382-78221

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
23382-78222

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
23388 - PLUG, FUEL FILTER DRAIN
23388-78222

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
23388-78220

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
23388 - PLUG, FUEL FILTER DRAIN
23388-78222

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
23388-78220

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
23388 - PLUG, FUEL FILTER DRAIN
23388-78222

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
23388-78220

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
Common parts
23386-78220
91511-B0830
Linked diagrams
7751
