XZU508-TQMMG (2008)
Toyota Dyna/Toyoace

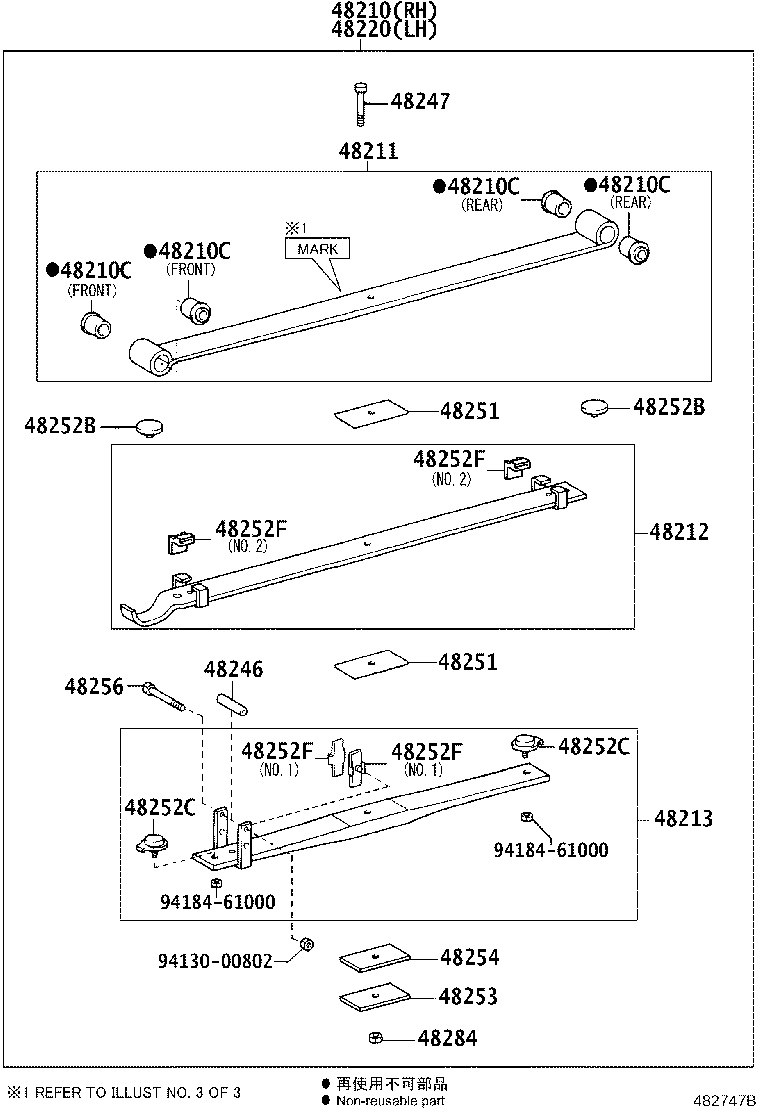

ILLUST NO. 2 OF 3(0801- )XZU308,508,538..T4..DCRUD,DCRUE
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37630 |
XZU30#..T5..20T;XZU338..T4..(DCRTJ,DCRUE);XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,50#,538..5F..(DCRUD,DCRUE) 3枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630,厚さ=67.0 |
1 | ||
| 48210-37F00 |
XZU308,508,538..T4..(DCRUD,DCRUE) 3枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00,厚さ=67.0 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU304..T5..20T;XZU308,508..CBU,IV6;XZU354,368,554,568..20T;XZU508..6FC..DCRTH..IV3;XZU304,504..T4..20T..CBU;XZU308..(DCRTH,DCRTM)..IV3;XZU308..DCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..DCRTH..IV3;BZU300,TRU300,500,XZU338,538..(T2,T4)..20T;XZU308,508..(T2,T5)..(DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37630 |
XZU30#..T5..20T;XZU338..T4..(DCRTJ,DCRUE);XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,50#,538..5F..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630 |
2 | ||
| 48201-37F00 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37630 |
XZU30#..T5..20T;XZU338..T4..(DCRTJ,DCRUE);XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,50#,538..5F..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630 |
2 | ||
| 48202-37F00 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-37630 |
XZU30#..T5..20T;XZU338..T4..(DCRTJ,DCRUE);XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,50#,538..5F..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630 |
2 | ||
| 48203-37F00 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37630 |
XZU30#..T5..20T;XZU338..T4..(DCRTJ,DCRUE);XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,50#,538..5F..(DCRUD,DCRUE) 3枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630,厚さ=67.0 |
1 | ||
| 48210-37F00 |
XZU308,508,538..T4..(DCRUD,DCRUE) 3枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00,厚さ=67.0 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V010 |
XZU508,538..T4..5F..CBU |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU508,538..T4..5F ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00 |
4 | ||
| 48251-36530 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630 |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU508,538..T4..5F ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00 |
4 | ||
| 48251-36530 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630 |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,T2,T4,T5)..WT |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,T2,T4,T5)..WT |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48252-37630 |
XZU508,538..T4..5F;XZU308..DCB..DCRUE..IV3;XZU308..5F..DCRUE..(CBU,IV6) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630,NO.1 |
4 | ||
| 48252-37880 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00,NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48252-37630 |
XZU508,538..T4..5F;XZU308..DCB..DCRUE..IV3;XZU308..5F..DCRUE..(CBU,IV6) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630,NO.1 |
4 | ||
| 48252-37880 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00,NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48252-37630 |
XZU508,538..T4..5F;XZU308..DCB..DCRUE..IV3;XZU308..5F..DCRUE..(CBU,IV6) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630,NO.1 |
4 | ||
| 48252-37880 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00,NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 NO.2 |
8 | ||
| 48252-37630 |
XZU508,538..T4..5F;XZU308..DCB..DCRUE..IV3;XZU308..5F..DCRUE..(CBU,IV6) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37630,NO.1 |
4 | ||
| 48252-37880 |
XZU308,508,538..T4..(DCRUD,DCRUE) ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37F00,NO.1 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-25670 |
XZU324..30T;BZU300,TRU300,500,XZU30#,338,50#,538..(T2,T4,T5)..20T..WT |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-3B060 |
XZU308,508,538..T4..(DCRUD,DCRUE) |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU324..30T;BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
| 94184-61000 | ||||
