XZU424-TQTRW3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0406- )CNG,DCR,DCRL,DSL,DSLL,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37160 |
BU410,420,430,XZU400,401,41#,42#,430..295T,30T,35T,40T |
1 | ||
| 44610-37161 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37010 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 44597-37021 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44597-37020 |
BZU410,XZU388,40#,41#,42#,433 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 44734-37011 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44776-37090 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37150 |
BZU410,XZU388,40#,41#,42#,433 |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37160 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37130 |
XZU401,411,414,421,424..6FC |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37130 |
XZU401,411,414,421,424..6FC |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
ILLUST NO. 2 OF 2(0406- )SCB..6FC..DCRL,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78023 |
J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB |
1 | ||
| 27690-78032 |
S05D..XZU401,411..T4..30T..IV3;N04C..XZU414,424..T4..35T..IV3;J05D,N04C..XZU414,423..40T..IV3;S05D..XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37140 |
BZU410;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU414,424..T4..35T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ |
1 | ||
| 44704-37070 |
XZU40#,41#,42#,433..SCB |
1 | ||
| 44704-37071 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44704-37141 |
XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37091 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU388,404,414,415,424 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37571 |
XZU404,414,415,424 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37270 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
BZU410,XZU40#,41#,42#,433..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 44778-37060 |
XZU388;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 NO.2 |
2 | ||
| 44781C - BRACKET, HOSE CLAMP, NO.2 | ||||
| 44781-37081 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37A10 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90034-68028 | ||||
| 90119-08830 | ||||
| 90461-08385 | ||||
| 91641-80818 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||

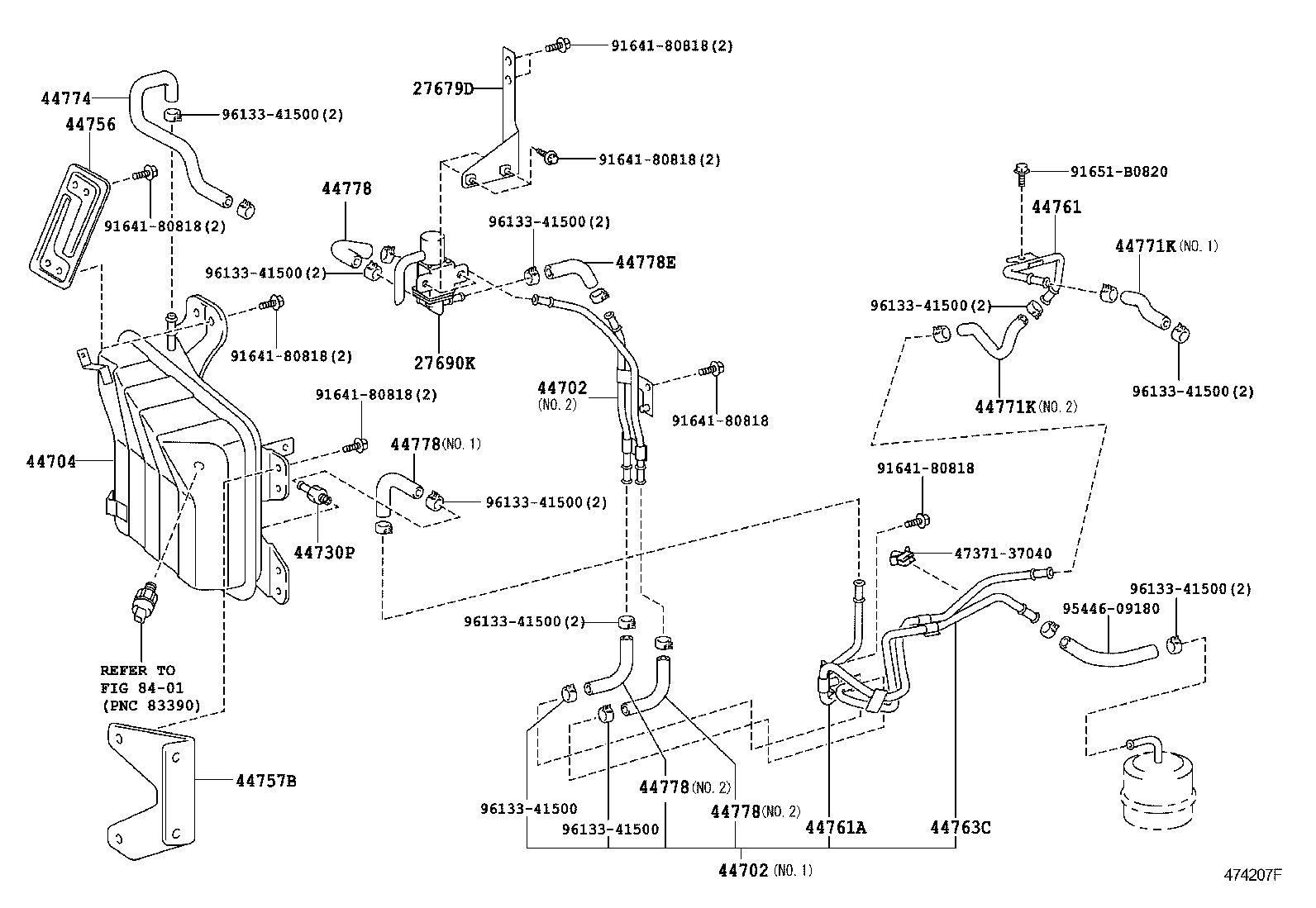

ILLUST NO. 2 OF 2(0406- )XZU414,423..40T..DCRL..IV3 ; (0406-)XZU414,423,424..T4..35T..DCRL..I
ﾎﾞﾄﾙｶｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78260 |
S05D..XZU401..5F..CBU;S05D..XZU401..30T..IV3;S05D..XZU411,421..SCB..5F;S05D..XZU401..5F..20T..IV3;N04C..XZU414,424..T4..35T..IV3;S05D..XZU411..T4..6FC..30T..IV3;J05D,N04C..XZU414,423..40T..IV3 |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78023 |
J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB |
1 | ||
| 27690-78032 |
S05D..XZU401,411..T4..30T..IV3;N04C..XZU414,424..T4..35T..IV3;J05D,N04C..XZU414,423..40T..IV3;S05D..XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ |
1 | ||
| 44702 - TUBE SUB-ASSY, AIR, NO.1 | ||||
| 44702-37240 |
XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ,NO.2 |
1 | ||
| 44702-37230 |
XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ,NO.1 |
1 | ||
| 44702 - TUBE SUB-ASSY, AIR, NO.1 | ||||
| 44702-37240 |
XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ,NO.2 |
1 | ||
| 44702-37230 |
XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ,NO.1 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37140 |
BZU410;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU414,424..T4..35T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ |
1 | ||
| 44704-37070 |
XZU40#,41#,42#,433..SCB |
1 | ||
| 44704-37071 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44704-37141 |
XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37091 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU388,404,414,415,424 |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-37710 |
XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 ﾎﾞﾄﾙｶｰ |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37571 |
XZU404,414,415,424 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37571 |
XZU404,414,415,424 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
BZU410,XZU40#,41#,42#,433..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 44778-37060 |
XZU388;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 NO.2 |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 44778-37060 |
XZU388;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 NO.2 |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 44778-37060 |
XZU388;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 NO.2 |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 44778-37060 |
XZU388;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU401,411..T4..30T..IV3;XZU411..SCB..T4..5F..20T..IV3 NO.2 |
2 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 95446-09120 |
XZU401..5F..CBU;XZU401..30T..IV3;XZU411,421..SCB..5F;XZU401..5F..20T..IV3;XZU414,423..40T..IV3;XZU414,424..T4..35T..IV3;XZU411..T4..6FC..30T..IV3 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 91641-80818 | ||||
| 91651-B0820 | ||||
| 95446-09180 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
