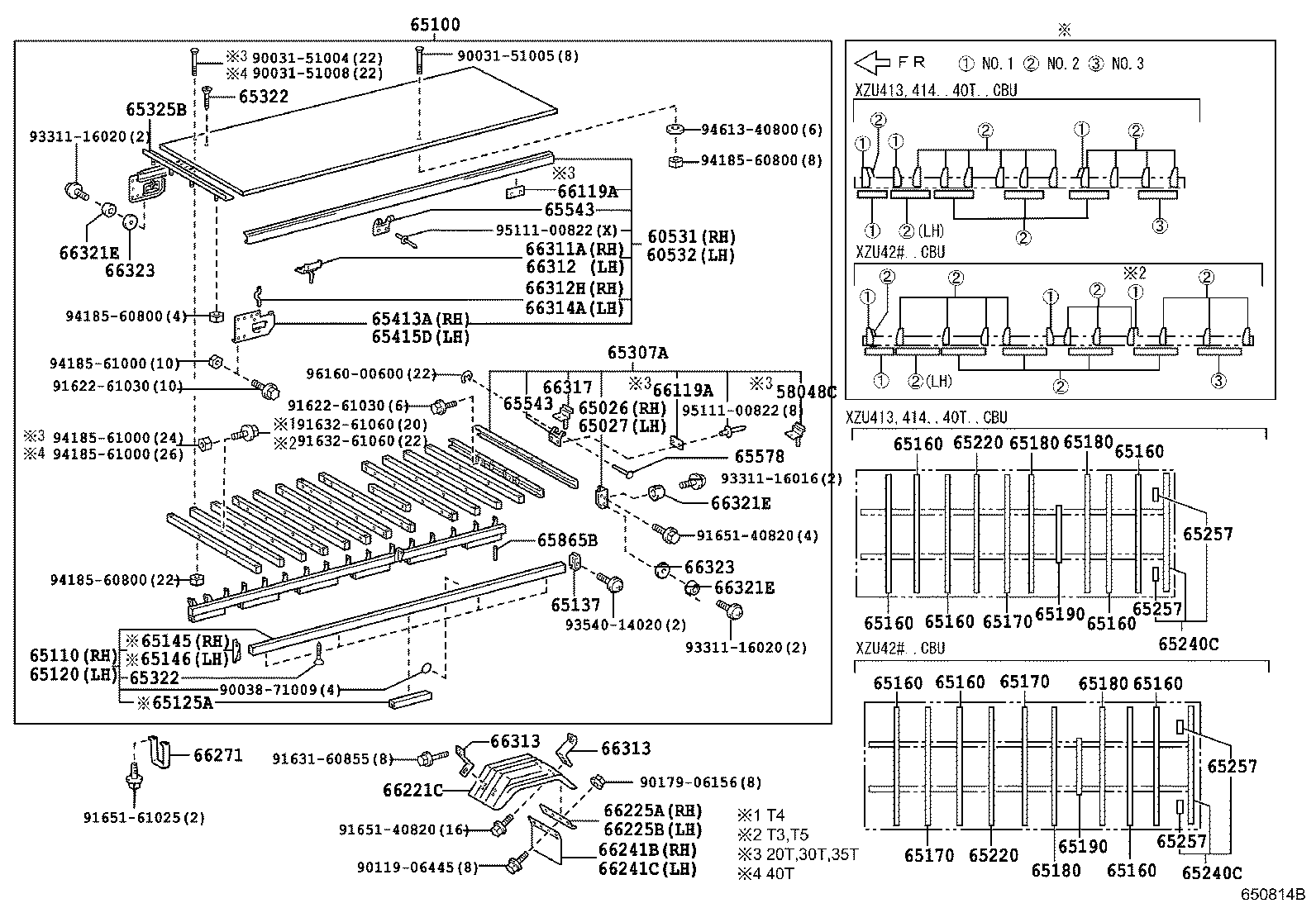

XZU423-TQFMW (2004)
Toyota Dyna/Toyoace
(0406- )XZU42#..CBU
5 ﾎｳｶｲﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58048C - HOOK SUB-ASSY, ROPE, NO.1 | ||||
| 58048-37040 |
XZU42#..(20T,30T,35T)..CBU |
2 | ||
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37290 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60531-37310 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60531-37880 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60531-37870 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37300 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60532-37280 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60532-37870 |
XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60532-37880 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37040 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37040 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-3V020 |
XZU42#..T4..20T..CBU *** |
1 | ||
| 60530-3V090 |
XZU42#..T4..20T..CBU ***,ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60530-3V160 |
XZU42#..T4..20T..CBU ***,ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-3V090 |
BU420,XZU42#..T4..CBU |
1 | ||
| 65110-3V500 |
XZU42#..T4..CBU |
1 | ||
| 65115F - SUPPORT, CROSS SILL | ||||
| 65115-37010 |
XZU42#..(20T,30T,35T)..CBU |
4 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-3V090 |
BU420,XZU42#..T4..CBU |
1 | ||
| 65120-3V500 |
XZU42#..T4..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37560 |
BU420,XZU42#..T4..CBU |
9 | ||
| 65125-37560 |
XZU42#..T4..CBU 右側,NO.2 |
4 | ||
| 65125-37610 |
XZU42#,433..T4..CBU 右側,NO.3 |
1 | ||
| 65126-37070 |
XZU42#,433..T4..CBU 左側,NO.1 |
1 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37080 |
XZU42#..T4..20T..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65137-37080 |
XZU42#,433..T4..CBU |
2 | ||
| 65145 - GUSSET, CROSS SILL | ||||
| 65146-37030 |
XZU42#..T4..CBU NO.1 |
2 | ||
| 65145-37230 |
BU420,XZU42#..T4..CBU |
13 | ||
| 65145-37230 |
XZU42#..T4..CBU NO.2 |
11 | ||
| 65146 - GUSSET, CROSS SILL | ||||
| 65146-37030 |
BU420,XZU42#..T4..CBU |
13 | ||
| 65145-37230 |
XZU42#..T4..CBU NO.1 |
2 | ||
| 65146-37030 |
XZU42#..T4..CBU NO.2 |
11 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37030 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65171-37030 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37040 |
XZU42#,433..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37250 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37260 |
XZU42#..20T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65181-37250 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37250 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37260 |
XZU42#..20T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65181-37250 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
BU420,430,XZU42#,430..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65191-37050 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65191-37050 |
XZU42#..CBU;XZU433..T3..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65191-37050 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65221-37090 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65191-37090 |
XZU42#..CBU;XZU433..T3..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37301 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65240-37291 |
XZU42#,433..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65240-37301 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
2 | ||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
2 | ||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65293A - HOLDER, CENTER POST | ||||
| 65293-37010 |
XZU42#,433..CBU |
2 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37270 |
XZU42#..20T..CBU |
1 | ||
| 65307-37280 |
XZU42#..20T..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65322 - NAIL | ||||
| 90032-82001 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU ﾒｲﾝｼﾙ用 |
1 | ||
| 90032-82001 |
XZU42#..CBU ﾒｲﾝｼﾙ用 |
26 | ||
| 90290-03001 |
XZU42#,433..CBU;XZU413,414..40T..CBU ﾌﾛｱﾎﾞｰﾄﾞ用 |
1 | ||
| 65322 - NAIL | ||||
| 90032-82001 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU ﾒｲﾝｼﾙ用 |
1 | ||
| 90032-82001 |
XZU42#..CBU ﾒｲﾝｼﾙ用 |
26 | ||
| 90290-03001 |
XZU42#,433..CBU;XZU413,414..40T..CBU ﾌﾛｱﾎﾞｰﾄﾞ用 |
1 | ||
| 65325B - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-37060 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾎｿﾊﾊﾞ ﾀｲﾌﾟ,横幅=1798mm |
1 | ||
| 65325-37070 |
XZU42#,433..CBU;XZU413,414..40T..CBU 横幅=1968mm |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37080 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37060 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37030 |
XZU42#,433..CBU |
22 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37030 |
XZU42#,433..CBU |
22 | ||
| 65578 - PIN, SIDE GATE HINGE | ||||
| 65578-37030 |
XZU42#,433..CBU |
22 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37010 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 66119A - PATCH, HINGE GATE MALE | ||||
| 66119-37010 |
XZU42#..(20T,30T,35T)..CBU |
6 | ||
| 66119A - PATCH, HINGE GATE MALE | ||||
| 66119-37010 |
XZU42#..(20T,30T,35T)..CBU |
6 | ||
| 66221C - PLATE, REAR FENDER, REAR | ||||
| 66221-37160 |
XZU42#..20T..CBU |
2 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37180 |
XZU42#..20T..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37180 |
XZU42#..20T..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37820 |
XZU42#..T4..20T..CBU HINO |
1 | ||
| 66241-37800 |
XZU42#..T4..20T..CBU TOYOTA |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66247-37010 |
XZU42#..T4..20T..CBU TOYOTA |
1 | ||
| 66247-37030 |
XZU42#..T4..20T..CBU HINO |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
6 | ||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU |
7 | ||
| 66312 - HOOK, ROPE, NO.2 | ||||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5ｶｲﾎｳ ﾀｲﾌﾟ) |
6 | ||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU |
7 | ||
| 66312H - HOOK, ROPE | ||||
| 66313-37010 |
XZU42#..(20T,30T,35T)..CBU |
3 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37140 |
XZU42#..20T..CBU |
8 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37140 |
XZU42#..20T..CBU |
8 | ||
| 66314A - HOOK, ROPE, NO.4 | ||||
| 66313-37010 |
XZU42#..(20T,30T,35T)..CBU |
3 | ||
| 66317 - HOOK, ROPE, NO.7 | ||||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
6 | ||
| 66303-87403 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
10 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
6 | ||
| 66303-87403 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
10 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
6 | ||
| 66303-87403 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
10 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
4 | ||
| 66323-37020 |
XZU42#,433..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
8 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
4 | ||
| 66323-37020 |
XZU42#,433..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
8 | ||
| Common parts | ||||
| 90031-51004 | ||||
| 90031-51005 | ||||
| 90031-51008 | ||||
| 90038-71009 | ||||
| 90119-06445 | ||||
| 90179-06156 | ||||
| 91621-60860 | ||||
| 91622-61030 | ||||
| 91631-60855 | ||||
| 91632-61060 | ||||
| 91651-40820 | ||||
| 91651-40830 | ||||
| 93311-16016 | ||||
| 93311-16020 | ||||
| 93540-14020 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 94613-40800 | ||||
| 95111-00822 | ||||
| 96160-00600 | ||||

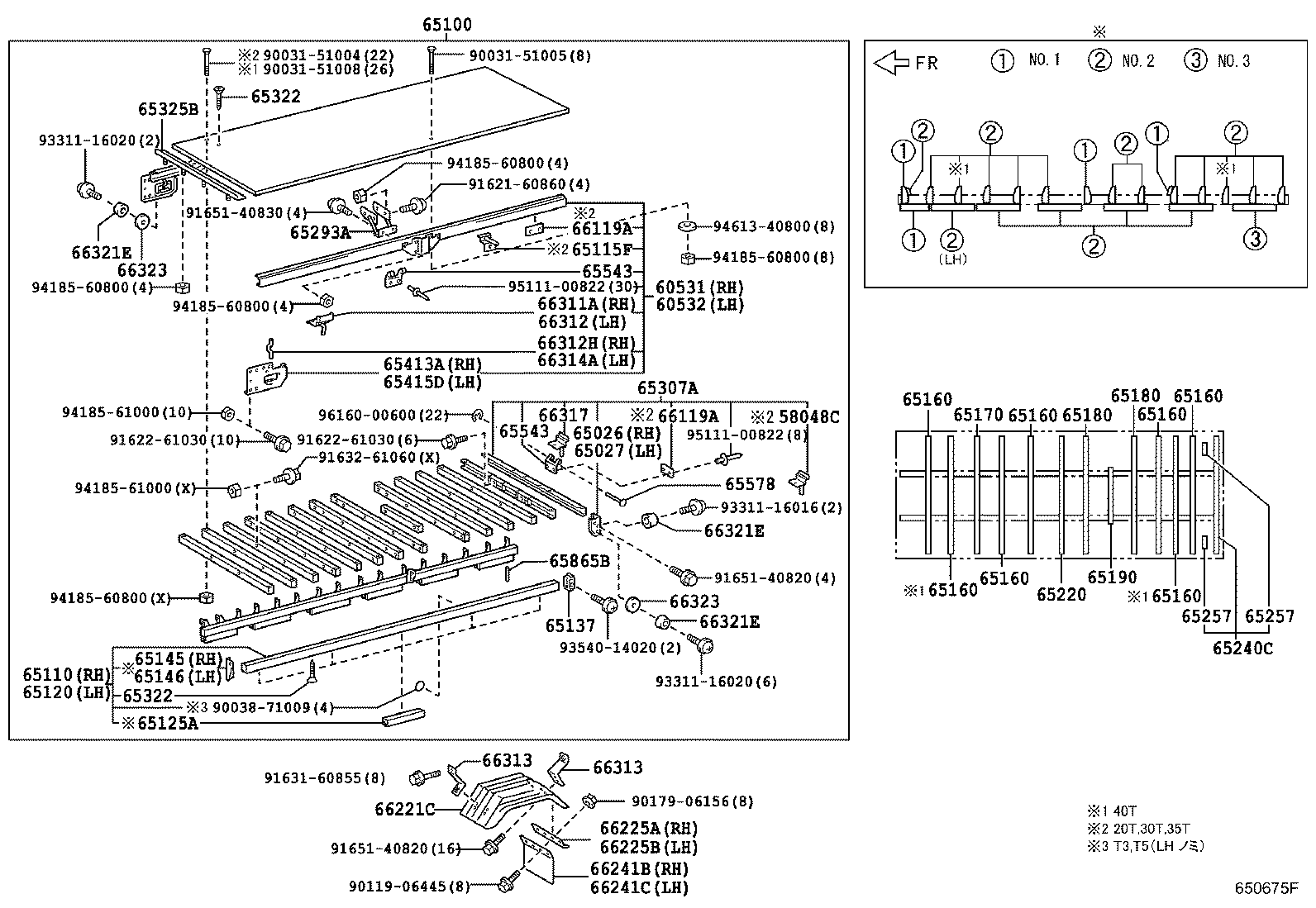

(0406- )XZU42#..CBU ; (0406- )XZU413,414..40T..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58048C - HOOK SUB-ASSY, ROPE, NO.1 | ||||
| 58048-37040 |
XZU42#..(20T,30T,35T)..CBU |
2 | ||
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37290 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60531-37310 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60531-37880 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60531-37870 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37300 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60532-37280 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60532-37870 |
XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60532-37880 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37040 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37040 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-3V020 |
XZU42#..T4..20T..CBU *** |
1 | ||
| 60530-3V090 |
XZU42#..T4..20T..CBU ***,ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60530-3V160 |
XZU42#..T4..20T..CBU ***,ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-3V090 |
BU420,XZU42#..T4..CBU |
1 | ||
| 65110-3V500 |
XZU42#..T4..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-3V090 |
BU420,XZU42#..T4..CBU |
1 | ||
| 65120-3V500 |
XZU42#..T4..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37560 |
BU420,XZU42#..T4..CBU |
9 | ||
| 65125-37560 |
XZU42#..T4..CBU 右側,NO.2 |
4 | ||
| 65125-37610 |
XZU42#,433..T4..CBU 右側,NO.3 |
1 | ||
| 65126-37070 |
XZU42#,433..T4..CBU 左側,NO.1 |
1 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37080 |
XZU42#..T4..20T..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65137-37080 |
XZU42#,433..T4..CBU |
2 | ||
| 65145 - GUSSET, CROSS SILL | ||||
| 65146-37030 |
XZU42#..T4..CBU NO.1 |
2 | ||
| 65145-37230 |
BU420,XZU42#..T4..CBU |
13 | ||
| 65145-37230 |
XZU42#..T4..CBU NO.2 |
11 | ||
| 65146 - GUSSET, CROSS SILL | ||||
| 65146-37030 |
BU420,XZU42#..T4..CBU |
13 | ||
| 65145-37230 |
XZU42#..T4..CBU NO.1 |
2 | ||
| 65146-37030 |
XZU42#..T4..CBU NO.2 |
11 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37140 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37150 |
XZU42#..(20T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65161-37140 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37030 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65171-37030 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37040 |
XZU42#,433..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37030 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65171-37030 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37040 |
XZU42#,433..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37030 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65171-37030 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37040 |
XZU42#,433..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37250 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37260 |
XZU42#..20T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65181-37250 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37250 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37260 |
XZU42#..20T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65181-37250 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37250 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37260 |
XZU42#..20T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65181-37250 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37250 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37260 |
XZU42#..20T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65181-37250 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
BU420,430,XZU42#,430..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65191-37050 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65191-37050 |
XZU42#..CBU;XZU433..T3..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65191-37050 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
BU420,430,XZU42#,430..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65191-37050 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65191-37050 |
XZU42#..CBU;XZU433..T3..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65191-37050 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65221-37090 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65191-37090 |
XZU42#..CBU;XZU433..T3..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65221-37090 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65191-37090 |
XZU42#..CBU;XZU433..T3..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37301 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65240-37291 |
XZU42#,433..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65240-37301 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37301 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65240-37291 |
XZU42#,433..CBU;XZU413,414..40T..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65240-37301 |
XZU42#..20T..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
2 | ||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
2 | ||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
2 | ||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
2 | ||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37270 |
XZU42#..20T..CBU |
1 | ||
| 65307-37280 |
XZU42#..20T..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65322 - NAIL | ||||
| 90032-82001 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU ﾒｲﾝｼﾙ用 |
1 | ||
| 90032-82001 |
XZU42#..CBU ﾒｲﾝｼﾙ用 |
26 | ||
| 90290-03001 |
XZU42#,433..CBU;XZU413,414..40T..CBU ﾌﾛｱﾎﾞｰﾄﾞ用 |
1 | ||
| 65322 - NAIL | ||||
| 90032-82001 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU ﾒｲﾝｼﾙ用 |
1 | ||
| 90032-82001 |
XZU42#..CBU ﾒｲﾝｼﾙ用 |
26 | ||
| 90290-03001 |
XZU42#,433..CBU;XZU413,414..40T..CBU ﾌﾛｱﾎﾞｰﾄﾞ用 |
1 | ||
| 65325B - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-37060 |
XZU421,423..20T..CBU;XZU424..T4..20T..CBU;XZU424..(T3,T5)..(20T,30T)..CBU ﾎｿﾊﾊﾞ ﾀｲﾌﾟ,横幅=1798mm |
1 | ||
| 65325-37070 |
XZU42#,433..CBU;XZU413,414..40T..CBU 横幅=1968mm |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37080 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37060 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37030 |
XZU42#,433..CBU |
22 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37030 |
XZU42#,433..CBU |
22 | ||
| 65578 - PIN, SIDE GATE HINGE | ||||
| 65578-37030 |
XZU42#,433..CBU |
22 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37010 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 66119A - PATCH, HINGE GATE MALE | ||||
| 66119-37010 |
XZU42#..(20T,30T,35T)..CBU |
6 | ||
| 66119A - PATCH, HINGE GATE MALE | ||||
| 66119-37010 |
XZU42#..(20T,30T,35T)..CBU |
6 | ||
| 66221C - PLATE, REAR FENDER, REAR | ||||
| 66221-37160 |
XZU42#..20T..CBU |
2 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37180 |
XZU42#..20T..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37180 |
XZU42#..20T..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37820 |
XZU42#..T4..20T..CBU HINO |
1 | ||
| 66241-37800 |
XZU42#..T4..20T..CBU TOYOTA |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66247-37010 |
XZU42#..T4..20T..CBU TOYOTA |
1 | ||
| 66247-37030 |
XZU42#..T4..20T..CBU HINO |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37020 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
6 | ||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU |
7 | ||
| 66312 - HOOK, ROPE, NO.2 | ||||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU ｱﾘ(5ｶｲﾎｳ ﾀｲﾌﾟ) |
6 | ||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU |
7 | ||
| 66312H - HOOK, ROPE | ||||
| 66313-37010 |
XZU42#..(20T,30T,35T)..CBU |
3 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37140 |
XZU42#..20T..CBU |
8 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37140 |
XZU42#..20T..CBU |
8 | ||
| 66314A - HOOK, ROPE, NO.4 | ||||
| 66313-37010 |
XZU42#..(20T,30T,35T)..CBU |
3 | ||
| 66317 - HOOK, ROPE, NO.7 | ||||
| 66301-37010 |
XZU42#..(20T,30T,35T)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
6 | ||
| 66303-87403 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
10 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
6 | ||
| 66303-87403 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
10 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
6 | ||
| 66303-87403 |
XZU42#,433..CBU 有り(5方開ﾀｲﾌﾟ) |
10 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
4 | ||
| 66323-37020 |
XZU42#,433..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
8 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
XZU42#,433..CBU;XZU413,414..40T..CBU |
4 | ||
| 66323-37020 |
XZU42#,433..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
8 | ||
| Common parts | ||||
| 90031-51004 | ||||
| 90031-51005 | ||||
| 90031-51008 | ||||
| 90038-71009 | ||||
| 90119-06445 | ||||
| 90179-06156 | ||||
| 91622-61030 | ||||
| 91631-60855 | ||||
| 91632-61060 | ||||
| 91651-40820 | ||||
| 91651-61025 | ||||
| 93311-16016 | ||||
| 93311-16020 | ||||
| 93540-14020 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 94613-40800 | ||||
| 95111-00822 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
