Toyota Dyna/toyoace XZU421 REAR BODY SIDE PANEL

XZU421-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

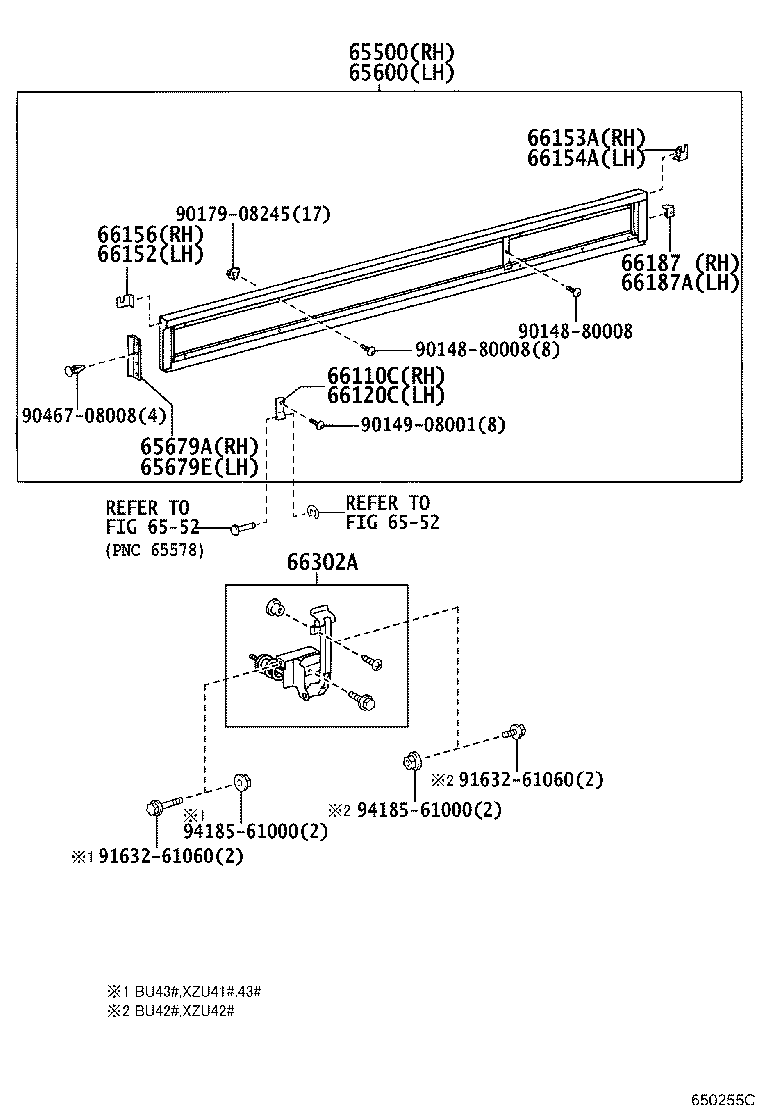

(9905- )XZU410,413,414..40T..CBU ; (9905-)BU420,430,XZU42#,43#..CBU

Click highlighted areas on diagram

Part #	Description	Period	Qty
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65500-3V420	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65500-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600-3V440	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65600-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65679A - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
65679E - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66152 - LATCH, SIDE GATE FEMALE, LH
66152-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66154A - LATCH, TAIL GATE FEMALE, LH
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66154-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	1
66187-37020	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66187A - LATCH, SIDE GATE SUPPORT
66187-37030	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66187-37030	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	1
66302A - LINK SUB-ASSY, GATE HELPER
66302-37040	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	08/1999 - 06/2004	2
Common parts
90148-80008
90149-08001
90179-08245
90467-08008
91632-61060
94185-61000
Linked diagrams
6552

(9905- )BU420,430,XZU42#,43#..CBU

Click highlighted areas on diagram

ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ)

Part #	Description	Period	Qty
65080B - HANDLE ASSY, SIDE GATE LATCH
65080-92701	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	2
65080C - HANDLE ASSY, SIDE GATE LATCH
65080-92701	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	2
65309A - POST SUB-ASSY, RH
65391-37040	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
65309B - POST SUB-ASSY, LH
65391-37040	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
65390 - POST ASSY, CENTER
65390-37040	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	2
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65500-3V420	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65500-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65500-3V420	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65500-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600-3V440	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65600-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600-3V440	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65600-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65679A - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
65679A - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
65679E - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
65679E - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66152 - LATCH, SIDE GATE FEMALE, LH
66152-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66152 - LATCH, SIDE GATE FEMALE, LH
66152-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66154A - LATCH, TAIL GATE FEMALE, LH
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66154-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66154A - LATCH, TAIL GATE FEMALE, LH
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66154-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	1
66187-37020	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66187A - LATCH, SIDE GATE SUPPORT
66187-37030	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66187-37030	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	1
Common parts
90148-80008
90149-08001
90179-08245
90467-08008
Linked diagrams
6552

(0206- )CNG ; (0206- )XZU410,414..20T,30T,35T..CBU ; (0206- )BU410,BZU410,

Click highlighted areas on diagram

Part #	Description	Period	Qty
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65500-3V420	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65500-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65500-3V420	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65500-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600-3V440	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65600-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V430	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU	05/1999 - 06/2004	1
65600-3V440	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾌﾛﾝﾄ	05/1999 - 06/2004	1
65600-3V450	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU ｱﾘ(5ｶｲﾎｳﾀｲﾌﾟ),ﾘﾔ	05/1999 - 06/2004	1
65679A - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
65679E - SEAL, SIDE GATE
65679-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	3
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65535-37080	XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	9
65535-37080	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	9
66152 - LATCH, SIDE GATE FEMALE, LH
66152-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66152-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66154A - LATCH, TAIL GATE FEMALE, LH
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66154-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-37010	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾌﾛﾝﾄ	05/1999 - 06/2004	1
66151-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU ﾘﾔ	05/1999 - 06/2004	1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37020	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	1
66187-37020	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66187A - LATCH, SIDE GATE SUPPORT
66187-37030	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66187-37030	BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU 有り(5開放ﾀｲﾌﾟ)	05/1999 - 06/2004	1
Common parts
90148-80008
90148-80025
90179-08245
90467-06038
90467-08008
90541-06021
93590-16014
