Toyota Dyna/toyoace XZU421 FUEL TANK & TUBE

XZU421-TQFQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05D

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

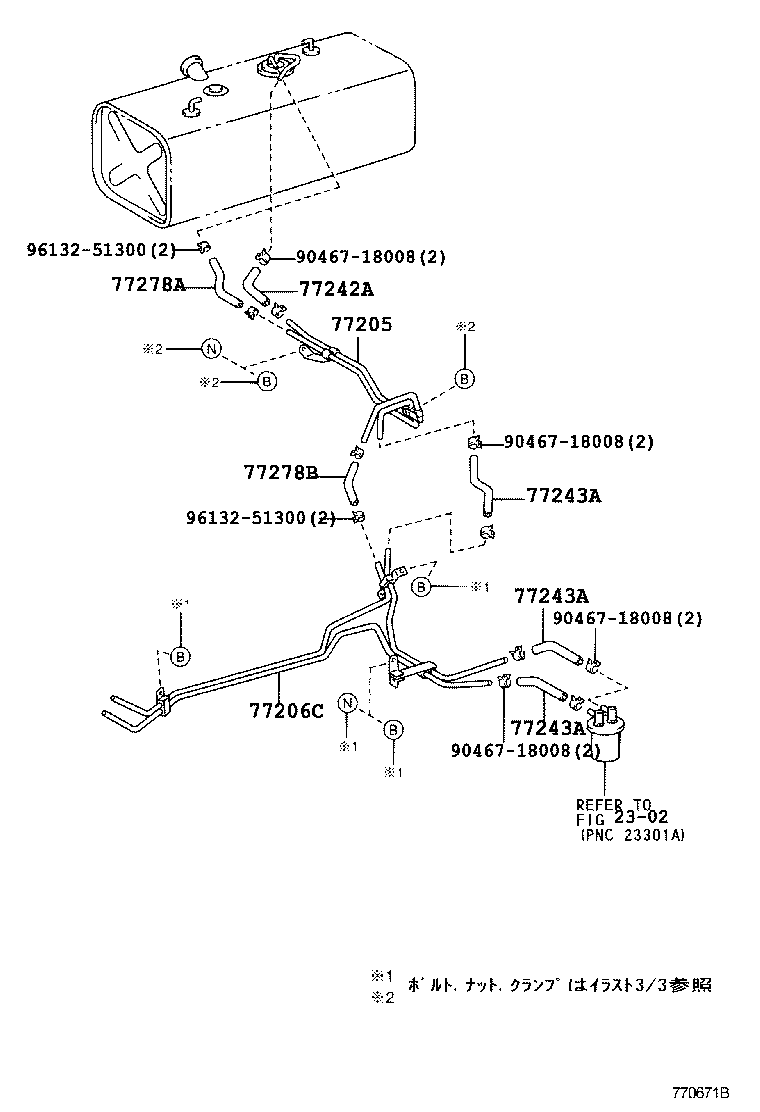

ILLUST NO. 2 OF 3(9905-0406)BU400,410,420,430,XZU401,402,411,412,421

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37571	BU420,XZU42#	12/2003 - 06/2004	1
77205-37570	XZU420;BU420..20T,35T;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F)	05/1999 - 12/2003	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37350	XZU401,402;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(295T,30T,35T)..(DSL,DSLL);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL)	05/1999 - 06/2004	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055	BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=12	05/1999 - 06/2002	1
95332-12055	BU410,420,XZU41#,42#..SCB..(DSL,TDEFI)..(CBU,IV3) *H,L=550,内径=12	06/2002 - 10/2002	1
95332-12055	BU410,420,XZU410,411,412,42#..SCB..(DSL,DSLL,TDEFI)..(CBU,IV3) *H,L=550,内径=12	10/2002 - 06/2004	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12026	XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(295T,30T,35T)..(DSL,DSLL) *H,L=260,内径=12	05/1999 - 06/2004	1
95332-12020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) *H,L=200,内径=12	05/1999 - 06/2004	1
95332-12032	XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(295T,30T,35T)..(DSL,DSLL);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) *H,L=320,内径=12	05/1999 - 06/2004	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12026	XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(295T,30T,35T)..(DSL,DSLL) *H,L=260,内径=12	05/1999 - 06/2004	1
95332-12020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) *H,L=200,内径=12	05/1999 - 06/2004	1
95332-12032	XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(295T,30T,35T)..(DSL,DSLL);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) *H,L=320,内径=12	05/1999 - 06/2004	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12026	XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(295T,30T,35T)..(DSL,DSLL) *H,L=260,内径=12	05/1999 - 06/2004	1
95332-12020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) *H,L=200,内径=12	05/1999 - 06/2004	1
95332-12032	XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(295T,30T,35T)..(DSL,DSLL);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) *H,L=320,内径=12	05/1999 - 06/2004	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08060	BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=7.6	05/1999 - 06/2002	1
95333-08060	BU410,420,XZU41#,42#..SCB..(DSL,TDEFI)..(CBU,IV3) *H,L=550,内径=7.6	06/2002 - 10/2002	1
95333-08060	BU410,420,XZU410,411,412,42#..SCB..(DSL,DSLL,TDEFI)..(CBU,IV3) *H,L=550,内径=7.6	10/2002 - 06/2004	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) *H,L=200,内径=7.6	05/1999 - 06/2004	1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

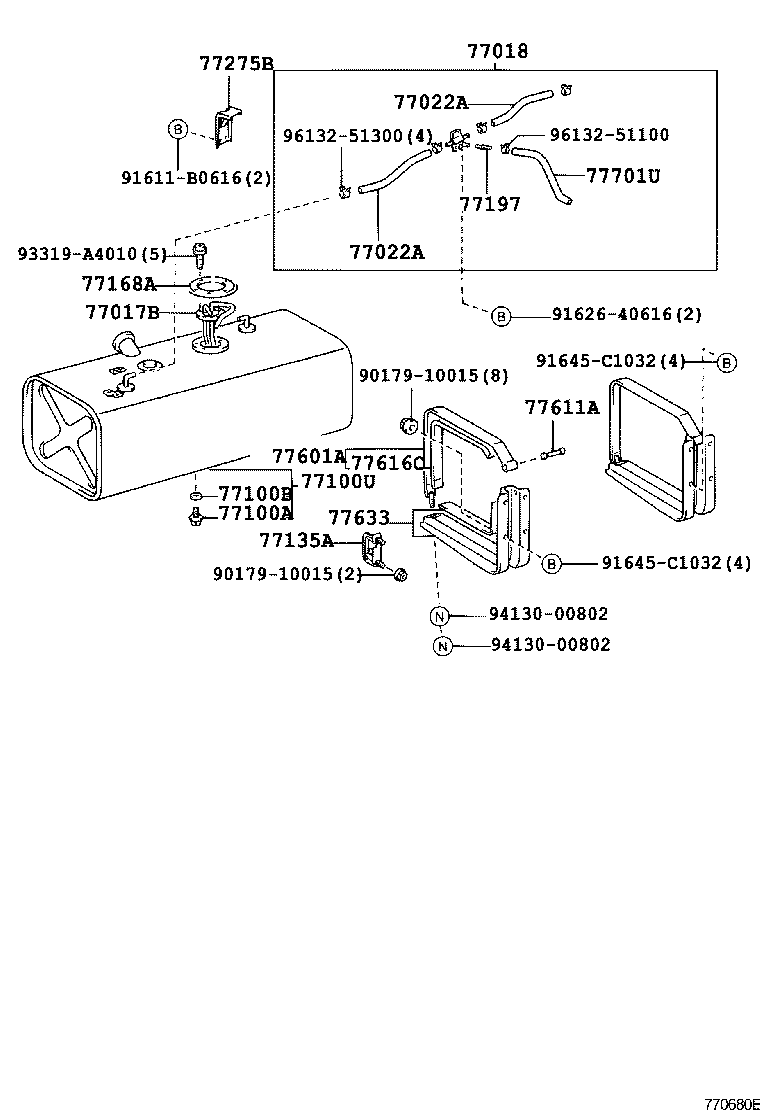

ILLUST NO. 1 OF 3(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37020	BU400,410,420,430,XZU401,402,41#,42#..SCB..(T2,T4)..(DSL,DSLL,TDEFI)	05/1999 - 06/2002	1
77017-37010	BU410,420,430,XZU382,40#,41#,42#,430..(DM7,T3,T4,T5)..(DSL,TDEFI)	06/2002 - 10/2002	1
77017-37010	BU410,420,430,XZU382,40#,410,411,412,42#,430..(DM7,T3,T4,T5)..(DSL,DSLL,TDEFI)	10/2002 - 06/2004	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU401..T4..35T;XZU410..T4..(30T,35T);BU410,420,430,XZU402,420..T4;XZU411,412,421..SCB..T4..(4FC,6F)..DSL	06/2002 - 06/2004	1
77018-37040	BU400,410,420,430,XZU401,402,41#,42#..SCB..(T2,T4)..(DSL,DSLL,TDEFI)	05/1999 - 06/2002	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T *H,L=280,内径=7.6	05/1999 - 06/2004	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T *H,L=280,内径=7.6	05/1999 - 06/2004	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
77100U - TANK SUB-ASSY, FUEL
77001-37200	BU410,420,430,XZU410,420..T4..6F;BU400,XZU401,402,411,412,421..SCB..(T2,T4)..(DSL,TDEFI) 967X355X265,ﾌﾕ-ｴﾙﾀﾝｸ=75L	05/1999 - 06/2002	1
77001-37220	XZU420..40TOV;BU430..T3..4FC;XZU412..DCB..5F;XZU411..T4..4FC;XZU411..(T4,T5)..MTM;XZU412,421..SCB..(T4,T5)..DSL;BU410,420,430,XZU401,402,410,420..T4 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	06/2002 - 10/2002	1
77001-37221	BU410,420,430,XZU382,40#,410,411,412,42#,430..(DM7,T3,T4,T5)..(DSL,DSLL,TDEFI) 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	01/2003 - 06/2004	1
77001-37220	XZU420..40TOV;BU430..T3..4FC;XZU412..DCB..5F;XZU411..T4..4FC;XZU411..T3..DSLL;XZU411..(T4,T5)..MTM;XZU412,421..SCB..(T4,T5)..DSL;BU410,420,430,XZU401,402,410,420..T4 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	10/2002 - 01/2003	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37110	XZU410,420;XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSL;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL)	05/1999 - 06/2004	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36090	BU400,410,420,430,XZU401,402,41#,42#..SCB..(T2,T4)..(DSL,DSLL,TDEFI)	05/1999 - 06/2002	2
77601-36150	XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,410,411,412,42#..(T3,T5)..(IV3,IV6);BU410,420,430,XZU401,402,410,411,412,42#..T4..(DSL,DSLL,TDEFI)	10/2002 - 06/2004	2
77601-36150	XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,402,41#,42#..T4..(DSL,TDEFI);BU410,420,430,XZU401,41#,42#..(T3,T5)..(DSL,TDEFI)..(IV3,IV6)	06/2002 - 10/2002	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU410..CBU,IV3;BU410,420,430,XZU382,40#,411,412,42#,430..DSL,DSLL,TDEFI	10/2002 - 06/2004	2
77629-36010	BU400,410,420,430,XZU382,40#,41#,42#,430..DSL,DSLL,TDEFI	05/1999 - 06/2002	2
77629-36010	XZU410..CBU,IV3;BU410,420,430,XZU382,40#,411,412,42#,430..DSL,TDEFI	06/2002 - 10/2002	2
77616C - SEAT, FUEL TANK BAND
77616-36030	BU410,420,430,XZU382,40#,41#,42#,430..(DM7,T3,T4,T5)..(DSL,TDEFI)	06/2002 - 10/2002	2
77616-36010	BU400;XZU411,412..T2..6F..CBU;XZU411,412,421..SCB..(T2,T4)..6F..20T..IV3;BU410,420,430,XZU401,402,41#,42#..SCB..T4..CBU	05/1999 - 06/2002	2
77616-36030	BU410,420,430,XZU382,40#,410,411,412,42#,430..(DM7,T3,T4,T5)..(DSL,DSLL,TDEFI)	10/2002 - 06/2004	2
77633 - STAY, FUEL TANK
77501-37080	XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,402,41#,42#..T4..(DSL,TDEFI);BU410,420,430,XZU401,41#,42#..(T3,T5)..(DSL,TDEFI)..(IV3,IV6)	06/2002 - 10/2002	2
77501-37080	XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,410,411,412,42#..(T3,T5)..(IV3,IV6);BU410,420,430,XZU401,402,410,411,412,42#..T4..(DSL,DSLL,TDEFI)	10/2002 - 06/2004	2
77633-37110	BU400,410,420,430,XZU401,402,41#,42#..SCB..(T2,T4)..(DSL,DSLL,TDEFI)	05/1999 - 06/2002	2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	BU400;XZU411,412..T2..6F..CBU;XZU411,412,421..SCB..(T2,T4)..6F..20T..IV3;BU410,420,430,XZU401,402,41#,42#..SCB..T4..CBU *H,L=360	05/1999 - 06/2002	1
95333-06040	XZU401..T4..35T;XZU410..T4..(30T,35T);BU410,420,430,XZU402,420..T4;XZU411,412,421..SCB..T4..(4FC,6F)..DSL *H,L=400	06/2002 - 06/2004	1
Common parts
90179-10015
91611-B0616
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

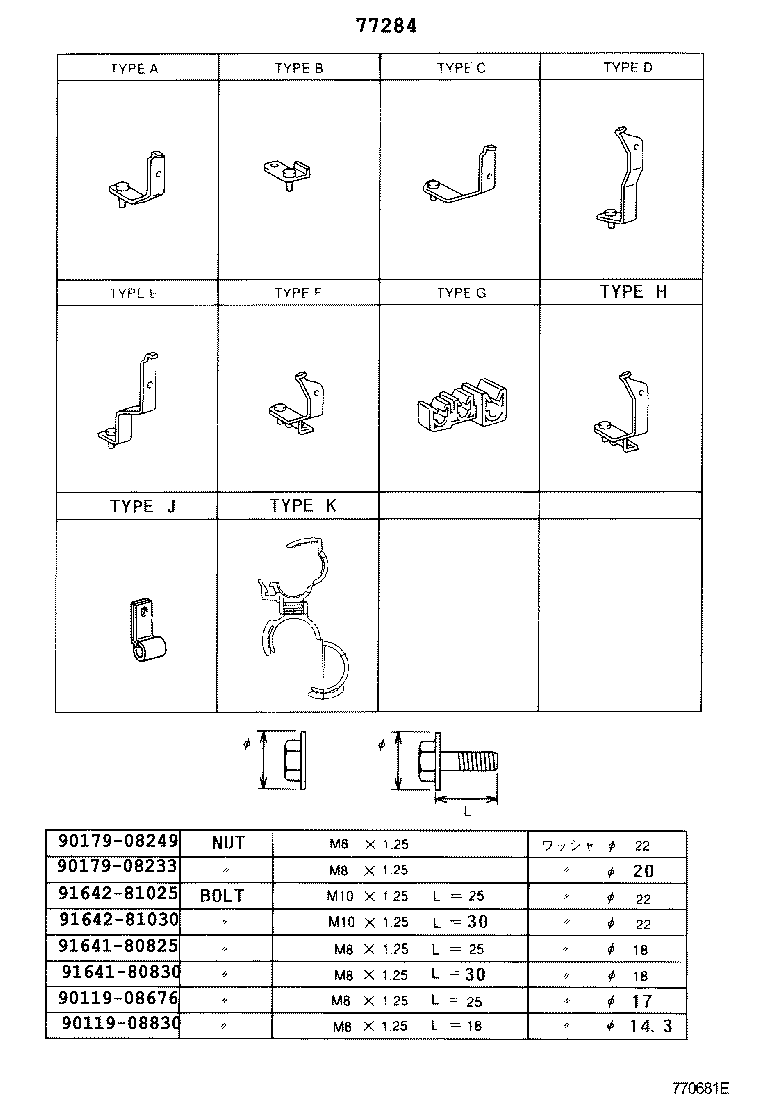

ILLUST NO. 3 OF 3(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430

Click highlighted areas on diagram

ﾌﾕ-ｴﾙｸﾗﾝﾌﾟ

Part #	Description	Period	Qty
77284 - CLAMP, FUEL TUBE
90034-61051	BU410,420,XZU41#,42#..4FC,6F TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	BU410,420,XZU41#,42#..(DSL,TDEFI)..(CBU,IV3) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 10/2002	1
77281-60080	XZU421..T5..5F..IV3;XZU421..6F..30T..IV3;XZU421..T4..(4FC,5F);XZU421..T4..6F..30T..CBU;BU410,420,XZU410,420..T4;XZU410,411,412,420..T3..(IV3,IV6);BU410,420..(T3,T5)..(20T,30T,35T)..IV3;XZU411,412..T4..(295T,30T)..(DSL,DSLL);XZU411,412..SCB..(T2,T4)..(4FC,5F)..20T..CBU;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL)..IV3 TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
77286-37310	XZU421..T5..5F..IV3;XZU421..T4..(4FC,5F);XZU421..T4..6F..30T..CBU;XZU412..DCB..T5..5F..CBU;BU410,420,430,XZU410,420..T4;XZU410,411,412,420..T3..(IV3,IV6);XZU421,430..6F..(30T,35T,40T)..IV3;XZU411,412..T4..(295T,30T)..(DSL,DSLL);XZU411,412..(T2,T4)..(4FC,5F)..20T..CBU;BU410,420,430..(T3,T5)..(20T,30T,35T)..IV3;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)..IV3 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
90034-61051	BU410,420,XZU410,411,412,42#..(DSL,DSLL,TDEFI)..(CBU,IV3) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	10/2002 - 06/2004	1
Common parts
90119-08676
90119-08830
90179-08233
90179-08249
91641-80825
91641-80830
91642-81025
91642-81030

XZU421-TQFQS (1999)

ILLUST NO. 2 OF 3(9905-0406)BU400,410,420,430,XZU401,402,411,412,421

ILLUST NO. 1 OF 3(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430

ILLUST NO. 3 OF 3(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430
