Toyota Dyna/toyoace XZU421 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU421-TQFQS (1999)
6751 - FRONT DOOR PANEL & GLASS

XZU421-TQFQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05D

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9905- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-37110B0	XZU411..T3..DSL;XZU411..T2,T4,T5;XZU410,420..6F..(CBU,IV3);BU410,420,430,XZU382,40#,412,421,430..SCB..(DSL,TDEFI)..(CBU,IV3,IV5) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHACOAL,TRIM1#	06/2002 - 06/2004	1
67610-37080B0	XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU410,420..CBU,IV3;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,40#..20T,30T,35T MD.CHACORL,TRIM1#	08/1999 - 06/2004	1
67610-37090B0	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07071B6	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
67601M - RETAINER, DOOR TRIM, NO.2
90467-10188	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	06/2003 - 06/2004	16
67771-12050	XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411..T4..(295T,30T);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T	05/1999 - 06/2003	16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-37130B0	XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU410,420..CBU,IV3;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,40#..20T,30T,35T MD.CHARCORL,TRIM1#	08/1999 - 06/2004	1
67620-37190B0	XZU411..T3..DSL;XZU411..T2,T4,T5;XZU410,420..6F..(CBU,IV3);BU410,420,430,XZU382,40#,412,421,430..SCB..(DSL,TDEFI)..(CBU,IV3,IV5) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ﾅｼ(ｱﾂｼﾕﾘｾﾌﾟﾀｸﾙ),MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
67620-37170B0	XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..SCB..DSL;BU410,420,430,BZU410,XZU382,40#,410,42#,430..(T2,T3,T4,T5)..(CBU,IV3,IV5) ﾅｼ(ｱﾂｼﾕﾘｾﾌﾟﾀｸﾙ),MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
67620-37140B0	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
67620-37160B0	XZU411..T3..DSL;XZU411..T2,T4,T5;XZU410,420..6F..(CBU,IV3);BU410,420,430,XZU382,40#,412,421,430..SCB..(DSL,TDEFI)..(CBU,IV3,IV5) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHACOAL,TRIM1#	06/2002 - 06/2004	1
67620-37180B0	XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..SCB..DSL;BU410,420,430,BZU410,XZU382,40#,410,42#,430 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ﾅｼ(ｱﾂｼﾕﾘｾﾌﾟﾀｸﾙ),MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-26010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	2
67651B - GRILLE, SPEAKER DOOR, RH
67651-37040B0	XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU400,410,420..MTM..(CBU,IV3);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
67652B - GRILLE, SPEAKER DOOR, LH
67651-37040B0	XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU400,410,420..MTM..(CBU,IV3);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 11/2003	1
68171-37011	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	11/2003 - 06/2004	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-37011	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	11/2003 - 06/2004	1
68172-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 11/2003	1
74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1
74141-25010B0	XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..SCB..DSL;BU410,420,430,BZU410,XZU382,40#,410,42#,430 MD.CHARCOAL,TRIM1#	06/2002 - 06/2004	1
Common parts
90159-60047
90168-40093
90189-06018
Linked diagrams
7451
7456
8602

ILLUST NO. 1 OF 3(9905- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

Part #	Description	Period	Qty
53866F - SEAL, FRONT FENDER TO COWL SIDE, RH
53867-37010	XZU40#,41#,42#,430	05/1999 - 07/1999	1
53866-37040	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	07/1999 - 06/2004	1
53867F - SEAL, FR FENDER TO COWL SIDE, LH
53866-37020	XZU40#,41#,42#,430	05/1999 - 07/1999	1
53867-37030	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	07/1999 - 06/2004	1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-37080	XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU401,410,420..4FC,6F;BU410,420,430,XZU382..20T,30T,35T;XZU411,430..(295T,30T,35T,40T)..DSL	05/1999 - 10/2002	1
67001-37081	XZU412..DSL;BU410,420,430,BZU410,XZU382,410,411,42#,430	10/2002 - 06/2004	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09031	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-37091	XZU412..DSL;BU410,420,430,BZU410,XZU382,410,411,42#,430	10/2002 - 06/2004	1
67002-37090	XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU401,410,420..4FC,6F;BU410,420,430,XZU382..20T,30T,35T;XZU411,430..(295T,30T,35T,40T)..DSL	05/1999 - 10/2002	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-37020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-37020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 03/2004	1
67831-37040	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	04/2004 - 06/2004	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 03/2004	1
67832-37050	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	04/2004 - 06/2004	1
67832-37020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T ｱﾘ(AM ﾃﾞﾝｼﾁﾕ-ﾅｶｾﾂﾄ 1ｽﾋﾟ-ｶ)	05/1999 - 03/2004	1
67832-37060	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 ｱﾘ(AM ﾃﾞﾝｼﾁﾕ-ﾅｶｾﾂﾄ 1ｽﾋﾟ-ｶ)	04/2004 - 06/2004	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-37020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 09/2003	1
67861-37021	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	09/2003 - 06/2004	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-37021	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	09/2003 - 06/2004	1
67862-37020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 09/2003	1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T TYPE A:ｲﾗｽﾄ参照	05/1999 - 06/2004	38
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T TYPE A:ｲﾗｽﾄ参照	05/1999 - 06/2004	38
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-89103	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T TYPE B:ｲﾗｽﾄ参照	05/1999 - 06/2004	38
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-89103	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T TYPE B:ｲﾗｽﾄ参照	05/1999 - 06/2004	38
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-37100	BU400,410,420,430,XZU382,40#,41#,42#,430 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ	05/1999 - 06/2002	1
68101-37130	XZU412..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;BU410,420,430,BZU410,XZU382,40#,410,42#,430 *TT,厚さ=3.5,ｸﾞﾘｰﾝ	06/2002 - 06/2004	1
68101-37110	BU400,410,420,430,XZU382,40#,41#,42#,430..SCB..(DSL,DSLL,TDEFI)..(CBU,IV3,IV5) *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ	05/1999 - 06/2002	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-37120	BU400,410,420,430,XZU382,40#,41#,42#,430 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ	05/1999 - 06/2002	1
68102-37130	BU400,410,420,430,XZU382,40#,41#,42#,430..SCB..(DSL,DSLL,TDEFI)..(CBU,IV3,IV5) *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ	05/1999 - 06/2002	1
68102-37140	XZU412..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;BU410,420,430,BZU410,XZU382,40#,410,42#,430 *TT,厚さ=3.5,ｸﾞﾘｰﾝ	06/2002 - 06/2004	1
68141E - RUN, FRONT DOOR GLASS, RH
68141-37010	XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430	05/1999 - 12/2001	1
68141-37030	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	12/2001 - 06/2004	1
68151D - RUN, FRONT DOOR GLASS, LH
68151-37010	XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430	05/1999 - 12/2001	1
68151-37030	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	12/2001 - 06/2004	1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-37011	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	09/2003 - 06/2004	1
68161-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 09/2003	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 09/2003	1
68162-37011	BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430	09/2003 - 06/2004	1
68610 - CHECK ASSY, FRONT DOOR
68610-37030	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	2
68617 - PIN, FRONT DOOR CHECK
68617-90K00	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-37020	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T	05/1999 - 06/2004	2
Common parts
67499-37010
67771-12050
90333-25001
90333-35004
90467-06084
91551-80612
91671-80618

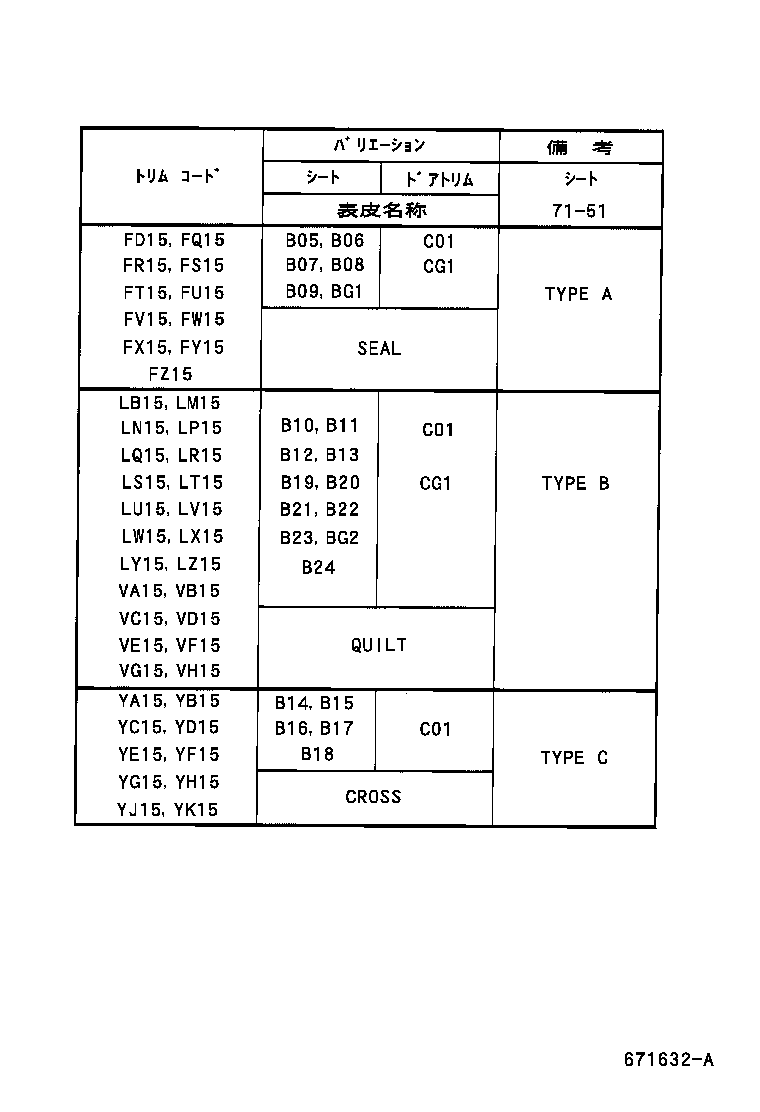

ILLUST NO. 3 OF 3(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430

Click highlighted areas on diagram

ﾄﾘﾑｺｰﾄﾞ

Part #	Description	Period	Qty	Price
