XZU421-TQFQS (1999)
Toyota Dyna/Toyoace
(9905- )BU420,XZU42#..CBU

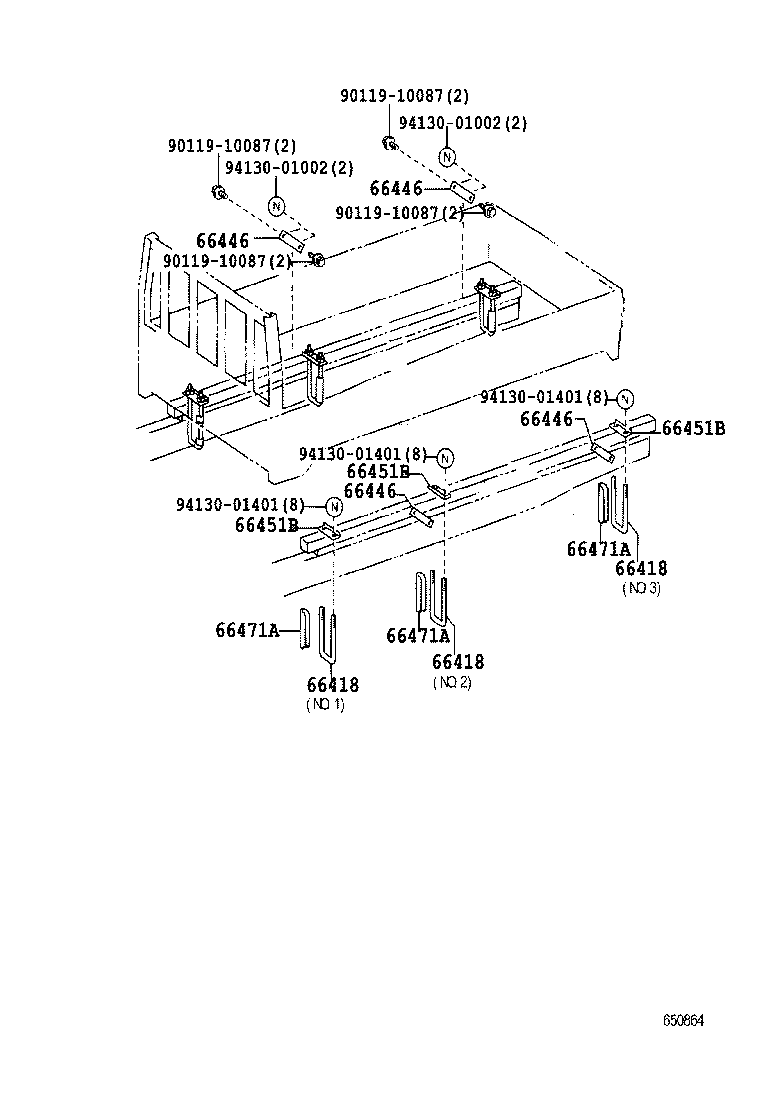

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418 - BOLT, MOUNTING | ||||
| 90031-17022 |
XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU;BU420,430,XZU420..T4..CBU NO.1 & NO.2 |
4 | ||
| 90031-17020 |
BU420,XZU420..T4..CBU;XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU NO.3 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90031-17022 |
XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU;BU420,430,XZU420..T4..CBU NO.1 & NO.2 |
4 | ||
| 90031-17020 |
BU420,XZU420..T4..CBU;XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU NO.3 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90031-17022 |
XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU;BU420,430,XZU420..T4..CBU NO.1 & NO.2 |
4 | ||
| 90031-17020 |
BU420,XZU420..T4..CBU;XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU NO.3 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37070 |
XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU;BU420,430,XZU420..T4..CBU |
4 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37070 |
XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU;BU420,430,XZU420..T4..CBU |
4 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37070 |
XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU;BU420,430,XZU420..T4..CBU |
4 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37070 |
XZU421..T4..6F..30T..CBU;XZU421..T4..(4FC,5F)..CBU;BU420,430,XZU420..T4..CBU |
4 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37040 |
XZU410..40T..CBU;BU420,XZU42#..CBU |
6 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37040 |
XZU410..40T..CBU;BU420,XZU42#..CBU |
6 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37040 |
XZU410..40T..CBU;BU420,XZU42#..CBU |
6 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37060 |
BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU NO.1 & NO.2(ﾗｲﾄ) |
3 | ||
| 66471-37070 |
BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU NO.2(ﾚﾌﾄ) |
1 | ||
| 66471-37080 |
XZU410..40T..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU NO.3 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37060 |
BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU NO.1 & NO.2(ﾗｲﾄ) |
3 | ||
| 66471-37070 |
BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU NO.2(ﾚﾌﾄ) |
1 | ||
| 66471-37080 |
XZU410..40T..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU NO.3 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37060 |
BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU NO.1 & NO.2(ﾗｲﾄ) |
3 | ||
| 66471-37070 |
BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU NO.2(ﾚﾌﾄ) |
1 | ||
| 66471-37080 |
XZU410..40T..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU42#..6F..(30T,35T,40T,40TOV)..CBU NO.3 |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01002 | ||||
| 94130-01401 | ||||
