XZU421-TQFQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0610)BU400,410,420,430,XZU38#,40#,41#,42#,43#..MTM ; (0306-0705)BZU410 ; (061

Click highlighted areas on diagram

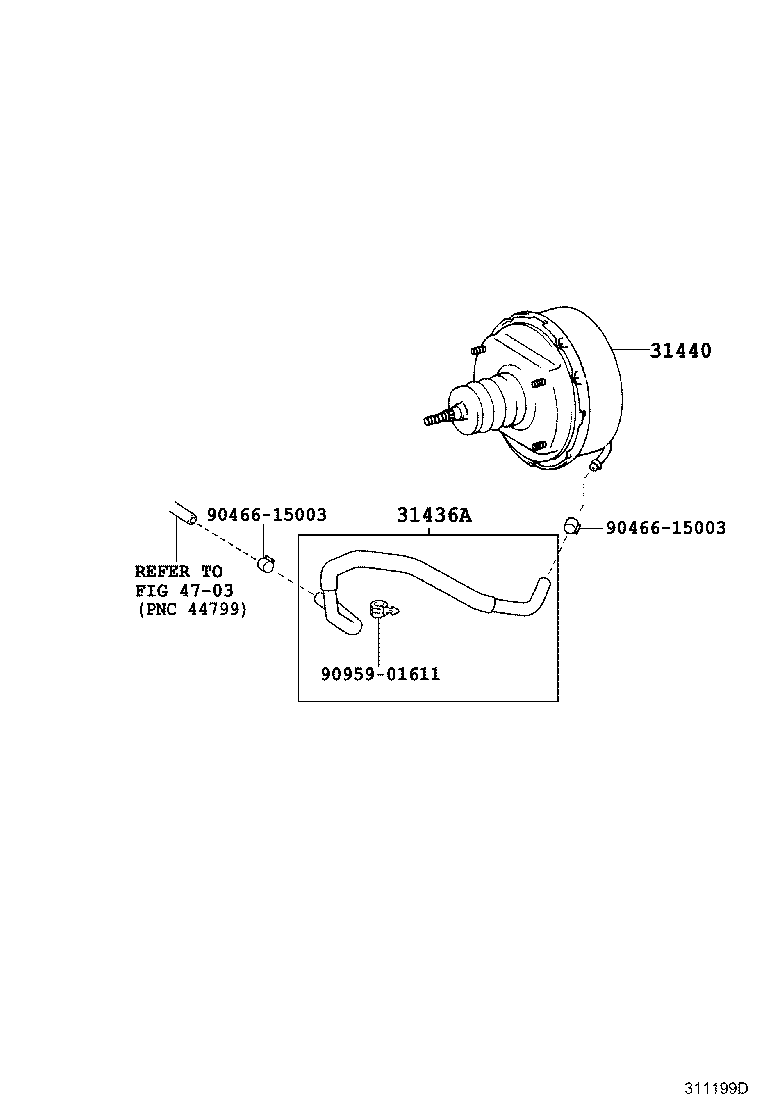

diagram 31436A 31440 4703 9046615003 9046615003 9095901611
Part # Description Qty Price
31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)
31436-37030

BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T)

 1
31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER
31440-37040

BU410,420,430,XZU382,40#,41#,42#,430..MTM..(CNG,DSL,LPG,TDEFI)

ﾏｰｸ 31440−37040

 1
31440-37040

BU410,420,430,XZU382,40#,41#,42#,430..MTM

ﾏｰｸ 31440−37040

 1
31440-37040

XZU382,40#,41#,42#,430..MTM

ﾏｰｸ 31440−37040

 1
31440-37041

XZU412..MTM..DSL;BU410,420,430,BZU410,XZU382,40#,410,411,42#,430..MTM

MARK 131030-30070

 1
Common parts
90466-15003
90959-01611
Linked diagrams
4703
