XZU421-TQFQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0406)J05C,S05#..DSL

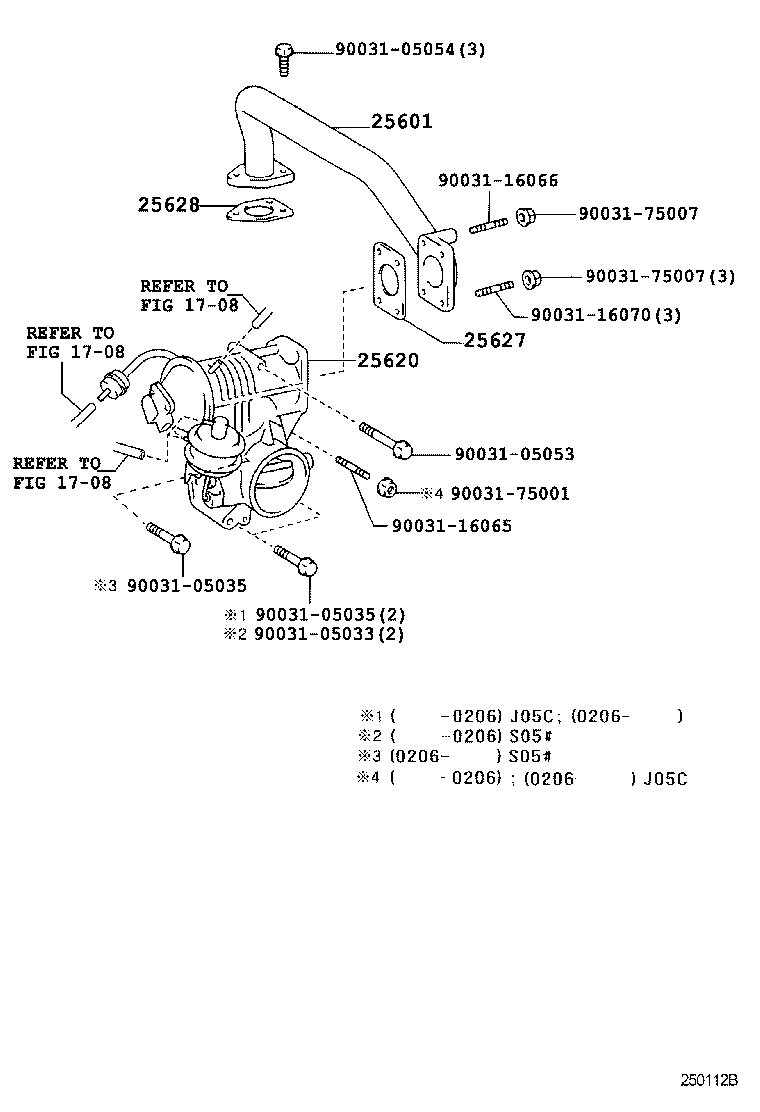

Click highlighted areas on diagram

diagram 1708 1708 1708 25601 25620 25627 25628 9003105033 9003105035 9003105035 9003105053 9003105054 9003116065 9003116066 9003116070 9003175001 9003175007 9003175007
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25610-78010

J05C,S05#..XZU40#,41#,42#,430

 1
25601-78010

S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T

 1
25620 - VALVE ASSY, EGR
25620-78041

J05C,S05#..XZU382,40#,41#,42#,430..DSL

 1
25620-78040

J05C,S05#..XZU382,40#,41#,42#,430..DSL

 1
25620-78042

S05#..XZU382,401,402,411,412,421..DSL

 1
25627 - GASKET, EGR VALVE
25627-78010

S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T

 1
25628 - GASKET, EGR INLET
17173-78030

S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T

 1
Common parts
90031-05033
90031-05035
90031-05053
90031-05054
90031-16065
90031-16066
90031-16070
90031-75001
90031-75007
Linked diagrams
1708
