XZU421-TQFQS (1999)
Toyota Dyna/Toyoace
(9905-0206)J05C,S05#..XZU40#,41#,42#,430

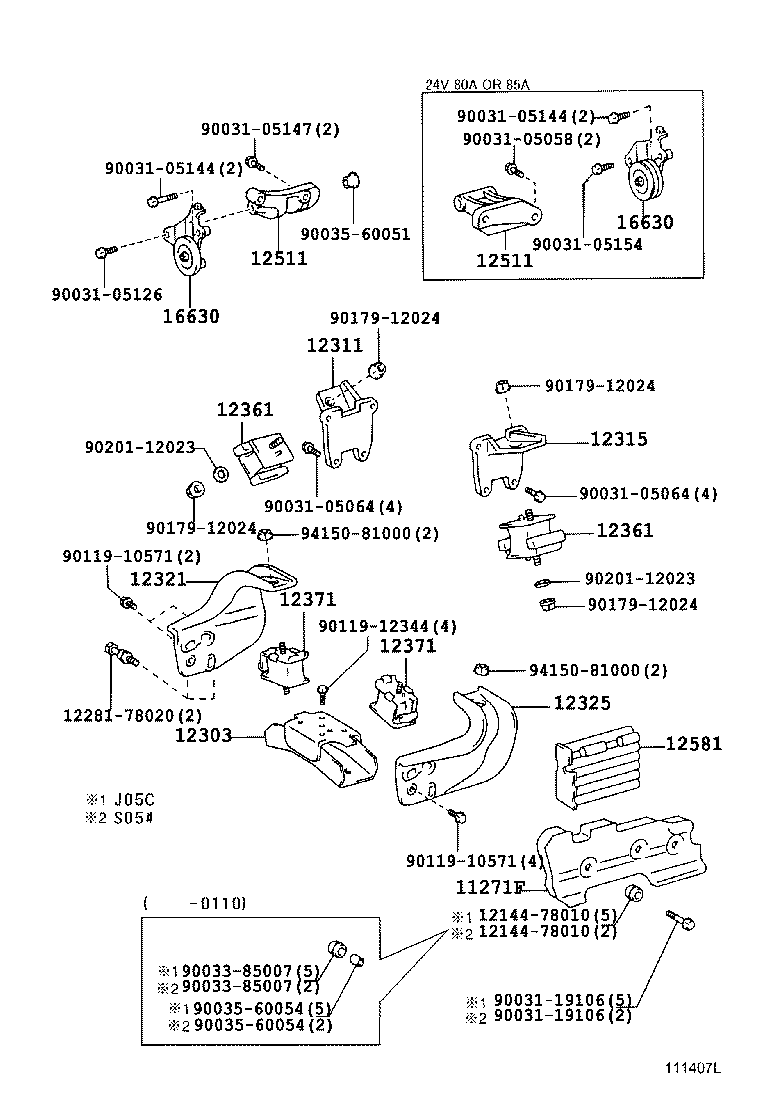

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271F - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-78040 |
S05#..XZU382,401,402,411,412,421 |
1 | ||
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78030 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78030 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78140 |
S05#..XZU411,412,421..5F;J05C,S05#..XZU40#,410,420..MTM;J05C,S05#..XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78120 |
S05#..XZU411,412,421..5F;J05C,S05#..XZU40#,410,420..MTM;J05C,S05#..XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78070 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 左側 |
1 | ||
| 12361-78040 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 右側 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78070 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 左側 |
1 | ||
| 12361-78040 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 右側 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-78020 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78020 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-78020 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78020 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12581 - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-78020 |
S05D..XZU411..6F..20T..DSLL;S05#..XZU401,402,411,412,421..DSL |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-78050 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78051 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 16630-78090 |
J05C,S05#..XZU40#,410,411,412,42#,430 |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-78050 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78051 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 16630-78090 |
J05C,S05#..XZU40#,410,411,412,42#,430 |
1 | ||
| Common parts | ||||
| 12144-78010 | ||||
| 12281-78020 | ||||
| 90031-05058 | ||||
| 90031-05064 | ||||
| 90031-05126 | ||||
| 90031-05144 | ||||
| 90031-05147 | ||||
| 90031-05154 | ||||
| 90031-19106 | ||||
| 90033-85007 | ||||
| 90035-60051 | ||||
| 90035-60054 | ||||
| 90119-10571 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
(0206-0406)S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271F - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-78040 |
S05#..XZU382,401,402,411,412,421 |
1 | ||
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78030 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78030 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78140 |
S05#..XZU411,412,421..5F;J05C,S05#..XZU40#,410,420..MTM;J05C,S05#..XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78120 |
S05#..XZU411,412,421..5F;J05C,S05#..XZU40#,410,420..MTM;J05C,S05#..XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78070 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 左側 |
1 | ||
| 12361-78040 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 右側 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78070 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 左側 |
1 | ||
| 12361-78040 |
S05#..XZU401,402;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..295T,30T,35T;S05#..XZU411,412..(4FC,5F)..20T 右側 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-78020 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78020 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-78020 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78020 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 12581 - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-78020 |
S05D..XZU411..6F..20T..DSLL;S05#..XZU401,402,411,412,421..DSL |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-78050 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78051 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 16630-78090 |
J05C,S05#..XZU40#,410,411,412,42#,430 |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-78050 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78051 |
S05#..XZU401,402,411,412,421;J05C..XZU400,410,420,430..IV3,IV6 ｱﾘ(24V-85A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 16630-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T |
1 | ||
| 16630-78090 |
J05C,S05#..XZU40#,410,411,412,42#,430 |
1 | ||
| Common parts | ||||
| 12281-78020 | ||||
| 90031-05058 | ||||
| 90031-05064 | ||||
| 90031-05126 | ||||
| 90031-05144 | ||||
| 90031-05147 | ||||
| 90031-05154 | ||||
| 90031-19106 | ||||
| 90035-60051 | ||||
| 90119-10571 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
