XZU421-TKPQS (1999)
Toyota Dyna/Toyoace
(9905-0206)XZU410..40T..CBU ; (9905-0206)BU420,430,XZU42#,430..CBU

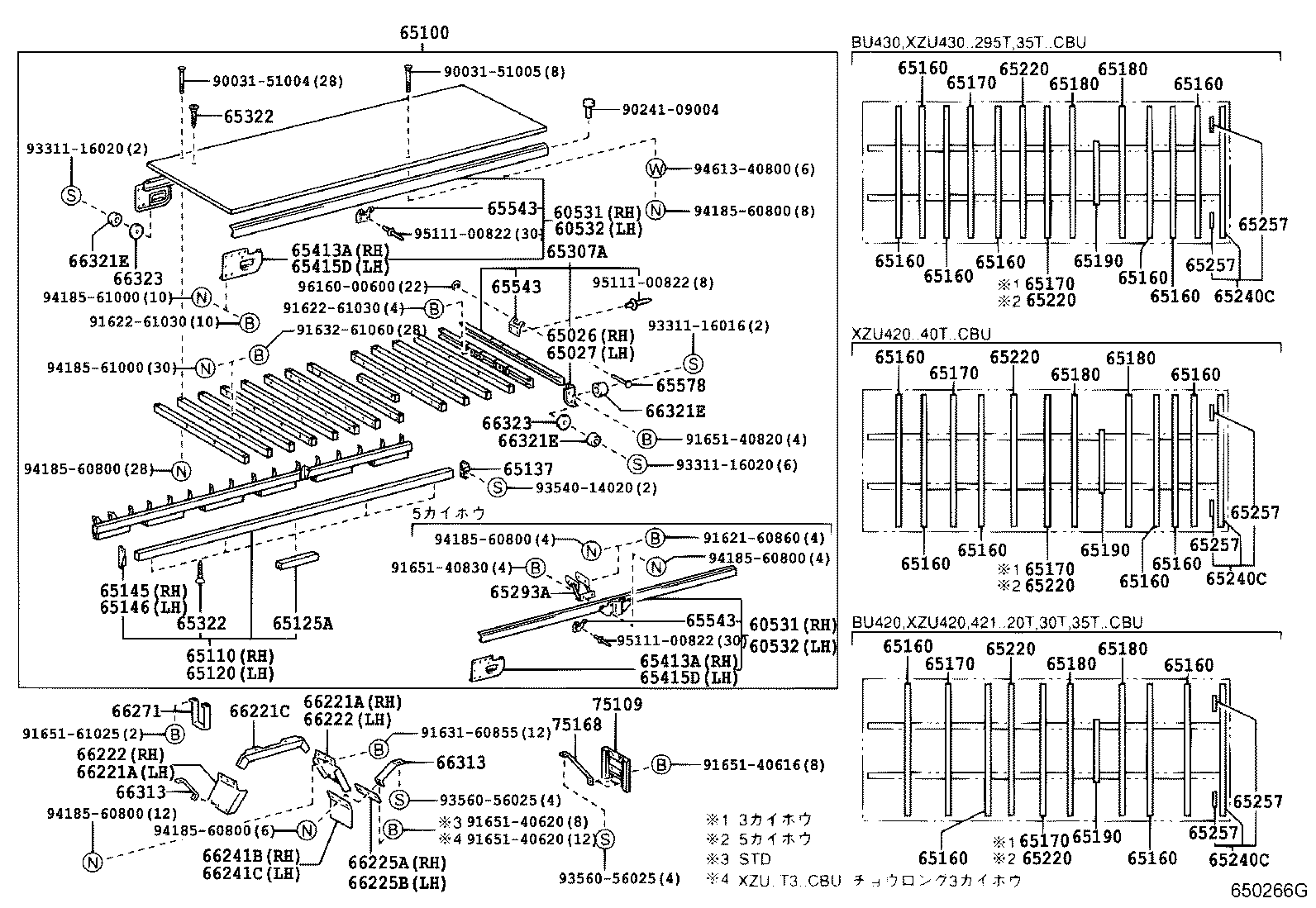

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37290 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60531-37310 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60531-37040 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37290 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60531-37310 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60531-37040 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37300 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60532-37280 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60532-37410 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37300 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60532-37280 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60532-37410 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37040 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37040 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37720 |
BU420,XZU42#..T3..(30T,35T)..CBU |
1 | ||
| 60530-37740 |
BU420,XZU42#..T3..(30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60530-37830 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-3V100 |
BU420,XZU42#..(T3,T5)..(20T,30T,35T)..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-3V100 |
BU420,XZU42#..(T3,T5)..(20T,30T,35T)..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37550 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..CBU |
9 | ||
| 65125-37600 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU ﾘﾔ右側 |
1 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37070 |
BU420..40T..CBU;XZU421..T3..4FC..CBU;XZU421,430..(T3,T5)..(20T,40TOV)..CBU |
2 | ||
| 65145 - GUSSET, CROSS SILL | ||||
| 65145-37220 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..(20T,30T,35T)..CBU |
13 | ||
| 65146 - GUSSET, CROSS SILL | ||||
| 65146-37020 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..(20T,30T,35T)..CBU |
13 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37020 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37020 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37020 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37020 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37020 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37020 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37120 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65181-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37120 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65181-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37120 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65181-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37120 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65181-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37120 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65181-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37120 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65181-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
XZU421..5F..CBU;XZU430..40TOV..CBU;BU420,XZU421..T3..(30T,40T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65191-37050 |
BU420,430,XZU42#,430..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
XZU421..5F..CBU;XZU430..40TOV..CBU;BU420,XZU421..T3..(30T,40T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65191-37050 |
BU420,430,XZU42#,430..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
XZU421..5F..CBU;XZU430..40TOV..CBU;BU420,XZU421..T3..(30T,40T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65191-37050 |
BU420,430,XZU42#,430..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65211-37030 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65221-37070 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65211-37030 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65221-37070 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65211-37030 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65221-37070 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65211-37030 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65221-37070 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65211-37030 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65221-37070 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65211-37030 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65221-37070 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37300 |
XZU421..T3..CBU 有り(3方開ﾀｲﾌﾟ) |
1 | ||
| 65240-37290 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37300 |
XZU421..T3..CBU 有り(3方開ﾀｲﾌﾟ) |
1 | ||
| 65240-37290 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37300 |
XZU421..T3..CBU 有り(3方開ﾀｲﾌﾟ) |
1 | ||
| 65240-37290 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65257 - REINFORCEMENT, REAR CROSS SILL | ||||
| 65257-37190 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU |
2 | ||
| 65293A - HOLDER, CENTER POST | ||||
| 65293-37010 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
2 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37280 |
XZU421..T3..4FC..CBU |
1 | ||
| 65307-37270 |
XZU421..T3..4FC..CBU ﾎｿﾊﾊﾞ ﾀｲﾌﾟ & ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65322 - NAIL | ||||
| 90032-82001 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU ﾒｲﾝｼﾙ用 |
1 | ||
| 90290-03001 |
BU420,XZU410..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU ﾌﾛｱﾎﾞｰﾄﾞ用 |
1 | ||
| 65322 - NAIL | ||||
| 90032-82001 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU ﾒｲﾝｼﾙ用 |
1 | ||
| 90290-03001 |
BU420,XZU410..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU ﾌﾛｱﾎﾞｰﾄﾞ用 |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37080 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37080 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37060 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37060 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37030 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
22 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37030 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
22 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37030 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
22 | ||
| 65578 - PIN, SIDE GATE HINGE | ||||
| 65578-37030 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65578-37030 |
XZU421..T3..CBU;XZU421..T4..20T..CBU;BU420..T4..6F..20T..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
22 | ||
| 66221A - PLATE, REAR FENDER, REAR RH | ||||
| 66221-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
2 | ||
| 66221-37210 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
1 | ||
| 66222-37190 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
1 | ||
| 66221A - PLATE, REAR FENDER, REAR RH | ||||
| 66221-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
2 | ||
| 66221-37210 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
1 | ||
| 66222-37190 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
1 | ||
| 66221C - PLATE, REAR FENDER, REAR | ||||
| 66222-37100 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 66221-37220 |
XZU421..T3..CBU |
2 | ||
| 66222 - PLATE, REAR FENDER, REAR LH | ||||
| 66222-37110 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
2 | ||
| 66221-37210 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
1 | ||
| 66222-37190 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
1 | ||
| 66222 - PLATE, REAR FENDER, REAR LH | ||||
| 66222-37110 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
2 | ||
| 66221-37210 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
1 | ||
| 66222-37190 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37170 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 66242-37150 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37170 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM & 3ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 66242-37150 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37490 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU HINO |
1 | ||
| 66241-37500 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU DAIHATSU |
1 | ||
| 66241-37480 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU TOYOTA |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37500 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU DAIHATSU |
1 | ||
| 66241-37490 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU HINO |
1 | ||
| 66241-37480 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU TOYOTA |
1 | ||
| 66241-37590 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ),DAIHATSU |
2 | ||
| 66241-37570 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ),TOYOTA |
2 | ||
| 66241-37580 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ),HINO |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37020 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37080 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
4 | ||
| 66235-37110 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
2 | ||
| 66235-37080 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37080 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
4 | ||
| 66235-37110 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
2 | ||
| 66235-37080 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
6 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
6 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
6 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
4 | ||
| 66323-37020 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
8 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
4 | ||
| 66323-37020 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
8 | ||
| 75109 - BRACKET SUB-ASSY, REFLEX REFLECTOR | ||||
| 75109-37020 |
XZU42#..(30T,35T)..CBU |
2 | ||
| 75168 - STAY, REFLEX REFLECTOR BRACKET | ||||
| 75168-37050 |
XZU42#..(30T,35T)..CBU |
2 | ||
| Common parts | ||||
| 90031-51004 | ||||
| 90031-51005 | ||||
| 90241-09004 | ||||
| 91621-60860 | ||||
| 91622-61030 | ||||
| 91631-60855 | ||||
| 91632-61060 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91651-40820 | ||||
| 91651-40830 | ||||
| 91651-61025 | ||||
| 93311-16016 | ||||
| 93311-16020 | ||||
| 93540-14020 | ||||
| 93560-56025 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 94613-40800 | ||||
| 95111-00822 | ||||
| 96160-00600 | ||||
(9905-0206)BU400,410,XZU382,402,41#..SCB..T3,T4,T5..20T,295T,30T,35T..CBU,IV5 ; (99
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37290 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60531-37310 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60531-37040 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37300 |
BU420,XZU42#..(20T,30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60532-37280 |
BU420,XZU42#..(20T,30T,35T)..CBU |
1 | ||
| 60532-37410 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37040 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37040 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37720 |
BU420,XZU42#..T3..(30T,35T)..CBU |
1 | ||
| 60530-37740 |
BU420,XZU42#..T3..(30T,35T)..CBU ｱﾘ(5 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 60530-37830 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM) |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-3V100 |
BU420,XZU42#..(T3,T5)..(20T,30T,35T)..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-3V100 |
BU420,XZU42#..(T3,T5)..(20T,30T,35T)..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37550 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..CBU |
9 | ||
| 65125-37600 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37550 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..CBU |
9 | ||
| 65125-37600 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37550 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..CBU |
9 | ||
| 65125-37600 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37550 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..CBU |
9 | ||
| 65125-37600 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37550 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..CBU |
9 | ||
| 65125-37600 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37550 |
XZU410..40T..CBU;BU420,XZU42#..(T3,T5)..CBU |
9 | ||
| 65125-37600 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU ﾘﾔ右側 |
1 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37070 |
BU420..40T..CBU;XZU421..T3..4FC..CBU;XZU421,430..(T3,T5)..(20T,40TOV)..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU 有り(5方開ﾀｲﾌﾟ) |
5 | ||
| 65161-37120 |
BU420,XZU42#..(30T,35T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
4 | ||
| 65161-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
4 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37020 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65171-37010 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37120 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
2 | ||
| 65181-37120 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
2 | ||
| 65181-37130 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
2 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
XZU421..5F..CBU;XZU430..40TOV..CBU;BU420,XZU421..T3..(30T,40T)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65191-37050 |
BU420,430,XZU42#,430..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65211-37030 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU ﾃﾞｯｷ = 細幅ﾀｲﾌﾟ |
1 | ||
| 65221-37070 |
BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU 有り(5方開ﾀｲﾌﾟ) |
1 | ||
| 65211-37040 |
XZU421..T3..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37300 |
XZU421..T3..CBU 有り(3方開ﾀｲﾌﾟ) |
1 | ||
| 65240-37290 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37280 |
XZU421..T3..4FC..CBU |
1 | ||
| 65307-37270 |
XZU421..T3..4FC..CBU ﾎｿﾊﾊﾞ ﾀｲﾌﾟ & ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 65322 - NAIL | ||||
| 90032-82001 |
XZU410..40T..CBU;BU420,430,XZU42#,430..CBU ﾒｲﾝｼﾙ用 |
1 | ||
| 90290-03001 |
BU420,XZU410..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU ﾌﾛｱﾎﾞｰﾄﾞ用 |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37080 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37060 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37170 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 66242-37150 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37170 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM & 3ｶｲﾎｳ ﾀｲﾌﾟ) |
1 | ||
| 66242-37150 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37490 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU HINO |
1 | ||
| 66241-37500 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU DAIHATSU |
1 | ||
| 66241-37480 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU TOYOTA |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37500 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU DAIHATSU |
1 | ||
| 66241-37490 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU HINO |
1 | ||
| 66241-37480 |
BU420..40T..CBU;XZU430..40TOV..CBU;XZU421..T3..4FC..CBU TOYOTA |
1 | ||
| 66241-37590 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ),DAIHATSU |
2 | ||
| 66241-37570 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ),TOYOTA |
2 | ||
| 66241-37580 |
XZU421..T3..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ),HINO |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37080 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
4 | ||
| 66235-37110 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
2 | ||
| 66235-37080 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37080 |
XZU410..40T..CBU;BU420,430,XZU42#,430..(30T,35T,40T,40TOV)..CBU |
4 | ||
| 66235-37110 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾌﾛﾝﾄ |
2 | ||
| 66235-37080 |
XZU421..T3..CBU ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),ﾘﾔ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
BU420..40T..CBU;XZU421..(T3,T5)..4FC..CBU;XZU421,430..6F..(20T,40TOV)..CBU |
6 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 93590-16014 | ||||
| 94185-61000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
