XZU415-TKFQX3 (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

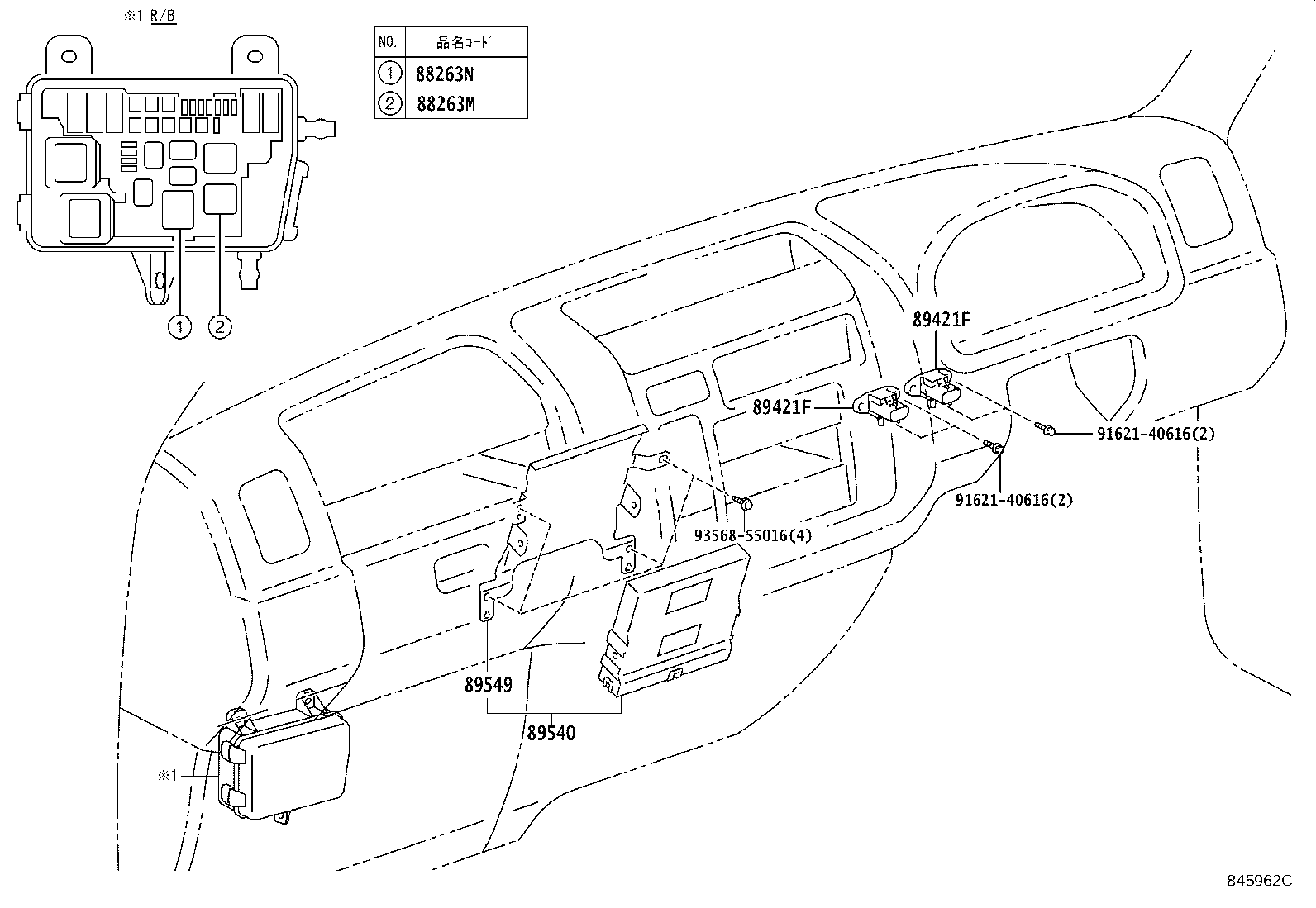

ILLUST NO. 1 OF 3(0310-0406)XZU414,415

Click highlighted areas on diagram

diagram 88263M 88263N 89421F 89421F 89540 89549 9162140616 9162140616 9356855016
Part # Description Qty Price
88263M - RELAY, ABS SOLENOID
88263-36050

XZU414,415

 1
88263N - RELAY, ABS MOTOR
88263-36040

XZU414,415

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
89421-37010

XZU414,415

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
89421-37010

XZU414,415

 2
89540 - COMPUTER ASSY, SKID CONTROL
89540-37080

BU410,420,430,XZU41#,42#,430..(4FC,6F)..(295T,30T,35T,40T,40TOV)

 1
89540-37210

XZU414,415

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37210

 1
89540-37230

XZU414,415

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37230

 1
89540-37210

XZU41#,42#,433..DCRL,DSL,DSLL

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37210

 1
89540-37230

XZU41#,42#,433..MTM..(DCRL,DSL,DSLL)

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37230

 1
89549 - BRACKET, SKID CONTROL COMPUTER
89549-37040

XZU414,415

 1
Common parts
91621-40616
93568-55016

ILLUST NO. 1 OF 3(0406- )

Click highlighted areas on diagram

diagram 88263M 88263N 89421F 89421F 89441A 89540 9162140616 9162140616 9162640618 9356855016 9415180600
Part # Description Qty Price
88263M - RELAY, ABS SOLENOID
88263-36050

XZU414,415

 1
88263N - RELAY, ABS MOTOR
88263-36040

XZU414,415

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
89421-37010

XZU414,415

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
89421-37010

XZU414,415

 2
89540 - COMPUTER ASSY, SKID CONTROL
89540-37080

BU410,420,430,XZU41#,42#,430..(4FC,6F)..(295T,30T,35T,40T,40TOV)

 1
89540-37210

XZU414,415

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37210

 1
89540-37230

XZU414,415

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37230

 1
89540-37210

XZU41#,42#,433..DCRL,DSL,DSLL

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37210

 1
89540-37230

XZU41#,42#,433..MTM..(DCRL,DSL,DSLL)

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37230

 1
Common parts
91621-40616
91626-40618
93568-55016
94151-80600

ILLUST NO. 3 OF 3(0310-0406)XZU414,415..30T ; (0406- )XZU388,40#,41#,42#,43#,488..30T,35T,40T

Click highlighted areas on diagram

ﾘﾔ ｽﾋﾟｰﾄﾞｾﾝｻ

diagram 4214137010 4214137010 8271637200 8271637200 8951535040 8951535040 8951535040 8951535040 8951535040 8951535040 8951535040 8951535040 89545 89545 89546 89546 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9048010022 9048010022 9048010022 9048010022 9048010022 9048010022 9048010022 9048010022 9155180620 9155180620 9155180620 9155180620 9413000802 9413000802 9413000802 9413000802
Part # Description Qty Price
89545 - SENSOR, SPEED, REAR RH
89545-37040

XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..(30T,35T)..(DCRL,DSL,DSLL)

 1
89545-37040

XZU414,415..30T

 1
89545 - SENSOR, SPEED, REAR RH
89545-37040

XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..(30T,35T)..(DCRL,DSL,DSLL)

 1
89545-37040

XZU414,415..30T

 1
89546 - SENSOR, SPEED, REAR LH
89546-37040

XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..(30T,35T)..(DCRL,DSL,DSLL)

 1
89546-37040

XZU414,415..30T

 1
89546 - SENSOR, SPEED, REAR LH
89546-37040

XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..(30T,35T)..(DCRL,DSL,DSLL)

 1
89546-37040

XZU414,415..30T

 1
Common parts
42141-37010
82716-37200
89515-35040
90129-08007
90480-10022
91551-80620
94130-00802
