Toyota Dyna/toyoace XZU415 FUEL TANK & TUBE

XZU415-TKFQX3 (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

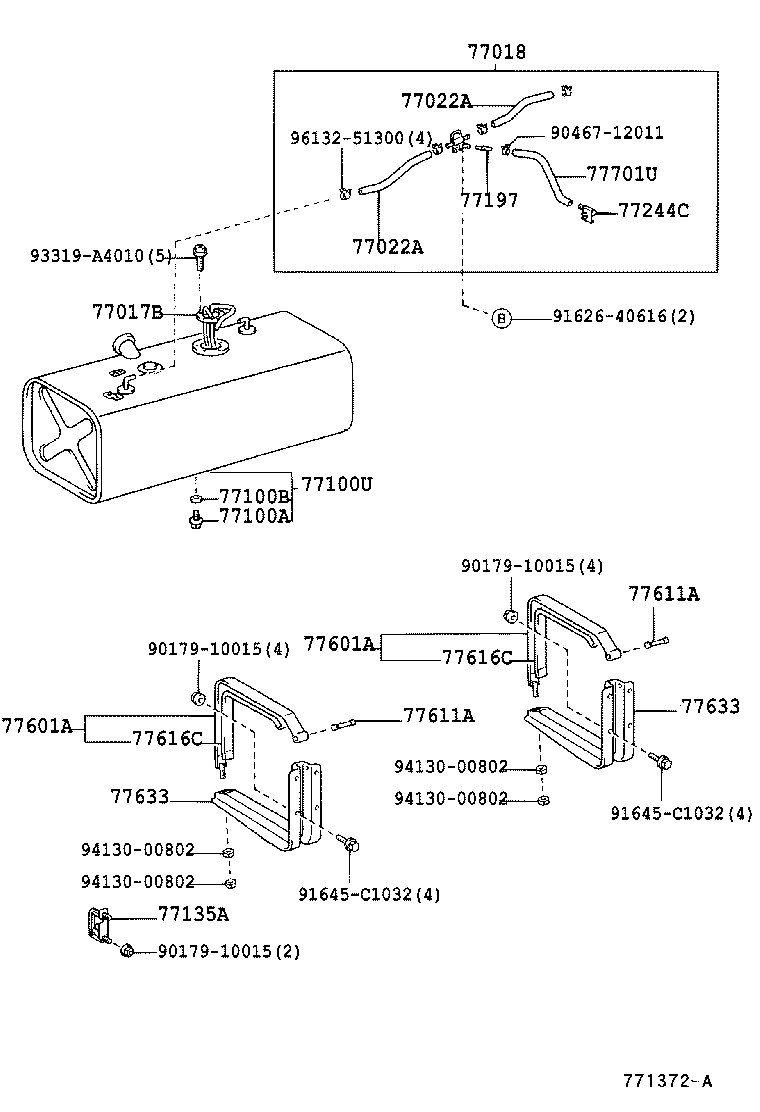

ILLUST NO. 1 OF 3(0310-0406)XZU414,415

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77017-37010	XZU382;XZU412..DCB..T4;BU410,420,430,XZU400,401,41#,42#,430..DM7,T3,T5	05/1999 - 06/2002	1
77017-37010	XZU414,415	10/2003 - 06/2004	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU414,415	10/2003 - 06/2004	1
77018-37050	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU414,415 *H,L=280,内径=7.6	10/2003 - 06/2004	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU414,415 *H,L=280,内径=7.6	10/2003 - 06/2004	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	XZU388,40#,41#,42#,433	06/2004 - 01/2006	1
90105-12116	XZU414,415	10/2003 - 06/2004	1
90105-12116	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	02/2006 - 10/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	02/2006 - 10/2006	1
90430-12245	XZU388,40#,41#,42#,433	06/2004 - 01/2006	1
90430-12245	XZU414,415	10/2003 - 06/2004	1
77100U - TANK SUB-ASSY, FUEL
77001-37221	XZU414,415 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	10/2003 - 06/2004	1
77001-37221	XZU388,40#,41#,42#,433..DM7,T3,T4,T5 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	06/2004 - 01/2006	1
77001-37222	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37110	XZU415	10/2003 - 06/2004	1
77135-37110	XZU41#,42#..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
90977-02001	XZU414,415	10/2003 - 06/2004	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU414,415	10/2003 - 06/2004	1
77244-37010	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150	XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6)	05/1999 - 06/2002	2
77601-36140	XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞﾌﾕ-ｴﾙﾀﾝｸ)	05/1999 - 06/2002	2
77601-36150	XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU40#,413,414,42#..(DM7,T3,T5)..IV3;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5)	06/2004 - 09/2006	2
77601-36150	XZU414,415	10/2003 - 06/2004	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150	XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6)	05/1999 - 06/2002	2
77601-36140	XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞﾌﾕ-ｴﾙﾀﾝｸ)	05/1999 - 06/2002	2
77601-36150	XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU40#,413,414,42#..(DM7,T3,T5)..IV3;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5)	06/2004 - 09/2006	2
77601-36150	XZU414,415	10/2003 - 06/2004	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU414,415	10/2003 - 06/2004	2
77629-36010	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU414,415	10/2003 - 06/2004	2
77629-36010	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	2
77616C - SEAT, FUEL TANK BAND
77616-36030	XZU414,415 ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	10/2003 - 06/2004	2
77616-36030	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)	06/2004 - 10/2006	2
77616C - SEAT, FUEL TANK BAND
77616-36030	XZU414,415 ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	10/2003 - 06/2004	2
77616-36030	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)	06/2004 - 10/2006	2
77633 - STAY, FUEL TANK
77501-37080	XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6)	05/1999 - 06/2002	2
77633-37100	XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞﾌﾕ-ｴﾙﾀﾝｸ)	05/1999 - 06/2002	2
77501-37080	XZU414,415	10/2003 - 06/2004	2
77501-37080	XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5);XZU40#,413,414,42#..(DM7,T3,T5)..(DCRL,DSL,DSLL)..IV3	06/2004 - 10/2006	2
77633 - STAY, FUEL TANK
77501-37080	XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6)	05/1999 - 06/2002	2
77633-37100	XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞﾌﾕ-ｴﾙﾀﾝｸ)	05/1999 - 06/2002	2
77501-37080	XZU414,415	10/2003 - 06/2004	2
77501-37080	XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5);XZU40#,413,414,42#..(DM7,T3,T5)..(DCRL,DSL,DSLL)..IV3	06/2004 - 10/2006	2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) *H,L=400	06/2004 - 10/2006	1
95333-06040	XZU414,415 *H,L=400	10/2003 - 06/2004	1
Common parts
90179-10015
90467-12011
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-51300

ILLUST NO. 2 OF 3(0310-0406)XZU414,415

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37560	XZU41#	05/1999 - 07/1999	1
77205-37560	XZU414,415..T3,T5	10/2003 - 06/2004	1
77205-37560	XZU411,414,415..SCB..(T2,T3,T5)	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37870	XZU40#,411,414,415,421,424..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77206-37870	XZU414,415	10/2003 - 06/2004	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-08020	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=7.6	06/2004 - 10/2006	1
95333-08020	XZU414,415 *H,L=160,内径=7.6	10/2003 - 06/2004	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055	BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=12	05/1999 - 06/2002	1
95332-12055	XZU414,415 *H,L=550,内径=12	10/2003 - 06/2004	1
95332-12055	XZU41#,42#..SCB..(DCRL,DSL,DSLL) *H,L=550,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016	XZU414,415 *H,L=160,内径=12	10/2003 - 06/2004	1
95332-12026	XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2	06/2004 - 10/2006	1
95332-12032	XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3	06/2004 - 10/2006	1
95332-12032	XZU414,415 *H,L=320,内径=12	10/2003 - 06/2004	1
95332-12026	XZU414,415 *H,L=260,内径=12	10/2003 - 06/2004	1
95332-12016	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016	XZU414,415 *H,L=160,内径=12	10/2003 - 06/2004	1
95332-12026	XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2	06/2004 - 10/2006	1
95332-12032	XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3	06/2004 - 10/2006	1
95332-12032	XZU414,415 *H,L=320,内径=12	10/2003 - 06/2004	1
95332-12026	XZU414,415 *H,L=260,内径=12	10/2003 - 06/2004	1
95332-12016	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016	XZU414,415 *H,L=160,内径=12	10/2003 - 06/2004	1
95332-12026	XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2	06/2004 - 10/2006	1
95332-12032	XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3	06/2004 - 10/2006	1
95332-12032	XZU414,415 *H,L=320,内径=12	10/2003 - 06/2004	1
95332-12026	XZU414,415 *H,L=260,内径=12	10/2003 - 06/2004	1
95332-12016	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08060	BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=7.6	05/1999 - 06/2002	1
95333-08060	XZU414,415 *H,L=550,内径=7.6	10/2003 - 06/2004	1
95333-08060	XZU41#,42#..SCB..(DCRL,DSL,DSLL) *H,L=550,内径=7.6	06/2004 - 10/2006	1
77284 - CLAMP, FUEL TUBE
77286-37290	BU410,420,XZU41#,42#..SCB..(T3,T5) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	BU410,420,XZU41#,42#..4FC,6F TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	XZU414,415 NO.2	10/2003 - 06/2004	1
77286-37310	XZU414,415 NO.1	10/2003 - 06/2004	1
77286-37310	XZU411..DCB..T5;XZU413,414,42#..T4;XZU411,415,433..IV3;XZU411,433..(T2,T4)..CBU;XZU413,414,42#..(T3,T5)..(DCRL,DSL,DSLL)..IV3 NO.1	06/2004 - 10/2006	1
90034-61051	XZU41#,42#..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	1
77284 - CLAMP, FUEL TUBE
77286-37290	BU410,420,XZU41#,42#..SCB..(T3,T5) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	BU410,420,XZU41#,42#..4FC,6F TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	XZU414,415 NO.2	10/2003 - 06/2004	1
77286-37310	XZU414,415 NO.1	10/2003 - 06/2004	1
77286-37310	XZU411..DCB..T5;XZU413,414,42#..T4;XZU411,415,433..IV3;XZU411,433..(T2,T4)..CBU;XZU413,414,42#..(T3,T5)..(DCRL,DSL,DSLL)..IV3 NO.1	06/2004 - 10/2006	1
90034-61051	XZU41#,42#..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	1
Common parts
90119-08676
90119-08830
90467-18008
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77017-37010	XZU382;XZU412..DCB..T4;BU410,420,430,XZU400,401,41#,42#,430..DM7,T3,T5	05/1999 - 06/2002	1
77017-37010	XZU414,415	10/2003 - 06/2004	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU414,415	10/2003 - 06/2004	1
77018-37050	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95332-08028	XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL)	10/2006 - 10/2006	2
95333-08030	XZU388,40#,41#,42#,433	06/2004 - 10/2006	2
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95332-08028	XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL)	10/2006 - 10/2006	2
95333-08030	XZU388,40#,41#,42#,433	06/2004 - 10/2006	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	XZU388,40#,41#,42#,433	06/2004 - 01/2006	1
90105-12116	XZU414,415	10/2003 - 06/2004	1
90105-12116	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	02/2006 - 10/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	02/2006 - 10/2006	1
90430-12245	XZU388,40#,41#,42#,433	06/2004 - 01/2006	1
90430-12245	XZU414,415	10/2003 - 06/2004	1
77100U - TANK SUB-ASSY, FUEL
77001-37221	XZU414,415 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	10/2003 - 06/2004	1
77001-37221	XZU388,40#,41#,42#,433..DM7,T3,T4,T5 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	06/2004 - 01/2006	1
77001-37222	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) 960X310X385,ﾌﾕ-ｴﾙﾀﾝｸ=100L	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37110	XZU415	10/2003 - 06/2004	1
77135-37110	XZU41#,42#..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37110	XZU415	10/2003 - 06/2004	1
77135-37110	XZU41#,42#..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
90977-02001	XZU414,415	10/2003 - 06/2004	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU414,415	10/2003 - 06/2004	1
77244-37010	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150	XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6)	05/1999 - 06/2002	2
77601-36140	XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞﾌﾕ-ｴﾙﾀﾝｸ)	05/1999 - 06/2002	2
77601-36150	XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU40#,413,414,42#..(DM7,T3,T5)..IV3;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5)	06/2004 - 09/2006	2
77601-36150	XZU414,415	10/2003 - 06/2004	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU414,415	10/2003 - 06/2004	2
77629-36010	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	2
77616C - SEAT, FUEL TANK BAND
77616-36030	XZU414,415 ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	10/2003 - 06/2004	2
77616-36030	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL)	06/2004 - 10/2006	2
77633 - STAY, FUEL TANK
77501-37080	XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6)	05/1999 - 06/2002	2
77633-37100	XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞﾌﾕ-ｴﾙﾀﾝｸ)	05/1999 - 06/2002	2
77501-37080	XZU414,415	10/2003 - 06/2004	2
77501-37080	XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5);XZU40#,413,414,42#..(DM7,T3,T5)..(DCRL,DSL,DSLL)..IV3	06/2004 - 10/2006	2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) *H,L=400	06/2004 - 10/2006	1
95333-06040	XZU414,415 *H,L=400	10/2003 - 06/2004	1
Common parts
90179-08249
90179-10015
91611-B0616
91626-40616
91641-80825
91642-81030
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

ILLUST NO. 2 OF 2(0406- )XZU41#,42#,454..SCB

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37560	XZU41#	05/1999 - 07/1999	1
77205-37560	XZU414,415..T3,T5	10/2003 - 06/2004	1
77205-37560	XZU411,414,415..SCB..(T2,T3,T5)	06/2004 - 10/2006	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37560	XZU41#	05/1999 - 07/1999	1
77205-37560	XZU414,415..T3,T5	10/2003 - 06/2004	1
77205-37560	XZU411,414,415..SCB..(T2,T3,T5)	06/2004 - 10/2006	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37560	XZU41#	05/1999 - 07/1999	1
77205-37560	XZU414,415..T3,T5	10/2003 - 06/2004	1
77205-37560	XZU411,414,415..SCB..(T2,T3,T5)	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37870	XZU40#,411,414,415,421,424..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
77206-37870	XZU414,415	10/2003 - 06/2004	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-08020	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=7.6	06/2004 - 10/2006	1
95333-08020	XZU414,415 *H,L=160,内径=7.6	10/2003 - 06/2004	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055	BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=12	05/1999 - 06/2002	1
95332-12055	XZU414,415 *H,L=550,内径=12	10/2003 - 06/2004	1
95332-12055	XZU41#,42#..SCB..(DCRL,DSL,DSLL) *H,L=550,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016	XZU414,415 *H,L=160,内径=12	10/2003 - 06/2004	1
95332-12026	XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2	06/2004 - 10/2006	1
95332-12032	XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3	06/2004 - 10/2006	1
95332-12032	XZU414,415 *H,L=320,内径=12	10/2003 - 06/2004	1
95332-12026	XZU414,415 *H,L=260,内径=12	10/2003 - 06/2004	1
95332-12016	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016	XZU414,415 *H,L=160,内径=12	10/2003 - 06/2004	1
95332-12026	XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2	06/2004 - 10/2006	1
95332-12032	XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3	06/2004 - 10/2006	1
95332-12032	XZU414,415 *H,L=320,内径=12	10/2003 - 06/2004	1
95332-12026	XZU414,415 *H,L=260,内径=12	10/2003 - 06/2004	1
95332-12016	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016	XZU414,415 *H,L=160,内径=12	10/2003 - 06/2004	1
95332-12026	XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2	06/2004 - 10/2006	1
95332-12032	XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3	06/2004 - 10/2006	1
95332-12032	XZU414,415 *H,L=320,内径=12	10/2003 - 06/2004	1
95332-12026	XZU414,415 *H,L=260,内径=12	10/2003 - 06/2004	1
95332-12016	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08060	BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=7.6	05/1999 - 06/2002	1
95333-08060	XZU414,415 *H,L=550,内径=7.6	10/2003 - 06/2004	1
95333-08060	XZU41#,42#..SCB..(DCRL,DSL,DSLL) *H,L=550,内径=7.6	06/2004 - 10/2006	1
77284 - CLAMP, FUEL TUBE
77286-37290	BU410,420,XZU41#,42#..SCB..(T3,T5) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	BU410,420,XZU41#,42#..4FC,6F TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	XZU414,415 NO.2	10/2003 - 06/2004	1
77286-37310	XZU414,415 NO.1	10/2003 - 06/2004	1
77286-37310	XZU411..DCB..T5;XZU413,414,42#..T4;XZU411,415,433..IV3;XZU411,433..(T2,T4)..CBU;XZU413,414,42#..(T3,T5)..(DCRL,DSL,DSLL)..IV3 NO.1	06/2004 - 10/2006	1
90034-61051	XZU41#,42#..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	1
77284 - CLAMP, FUEL TUBE
77286-37290	BU410,420,XZU41#,42#..SCB..(T3,T5) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	BU410,420,XZU41#,42#..4FC,6F TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90034-61051	XZU414,415 NO.2	10/2003 - 06/2004	1
77286-37310	XZU414,415 NO.1	10/2003 - 06/2004	1
77286-37310	XZU411..DCB..T5;XZU413,414,42#..T4;XZU411,415,433..IV3;XZU411,433..(T2,T4)..CBU;XZU413,414,42#..(T3,T5)..(DCRL,DSL,DSLL)..IV3 NO.1	06/2004 - 10/2006	1
90034-61051	XZU41#,42#..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

XZU415-TKFQX3 (2003)

ILLUST NO. 1 OF 3(0310-0406)XZU414,415

ILLUST NO. 2 OF 3(0310-0406)XZU414,415

ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL

ILLUST NO. 2 OF 2(0406- )XZU41#,42#,454..SCB

Part Price Details
